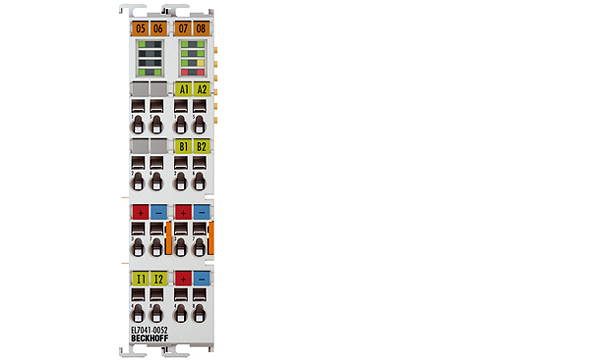

Beckhoff EL7041-0052
EL7041-0052 | Stepper motor terminal 50 V DC, 5 A
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL7041-0052 EtherCAT Terminal is intended for stepper motors in the medium performance range. The PWM output stages cover a wide range of voltages and currents. Together with two inputs for limit switches, they are located in the EtherCAT Terminal. The EL7041-0052 can be adapted to the motor and the application by changing just a few parameters. 64-fold micro-stepping ensures particularly quiet and precise motor operation.
Технические характеристики
| Technology: | compact Drive Technology |
| Load type: | 2-phase stepper motor (uni-/bipolar) |
| Number of channels: | 1 |
| Number of outputs: | 1 x stepper motor |
| Number of inputs: | 2 x end position |
| Connection method: | direct motor connection |
| Supply voltage electronics: | 24 V DC (via power contacts) |
| Supply voltage power: | 8…50 V DC (external) |
| Output current: | max. 5.0 A |
| Step frequency: | configurable up to 8000 full steps/s |
| Step pattern: | 64-fold micro stepping |
| Current controller frequency: | approx. 30 kHz |
| Resolution: | approx. 5000 positions in typ. applications (per revolution) |
| Current consumption power contacts: | typ. 50 mA |
| Current consumption E-bus: | typ. 140 mA |
| Distributed clocks: | yes |
| Special features: | travel distance control |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Weight: | approx. 90 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/see documentation |
| Approvals/markings: | CE |
