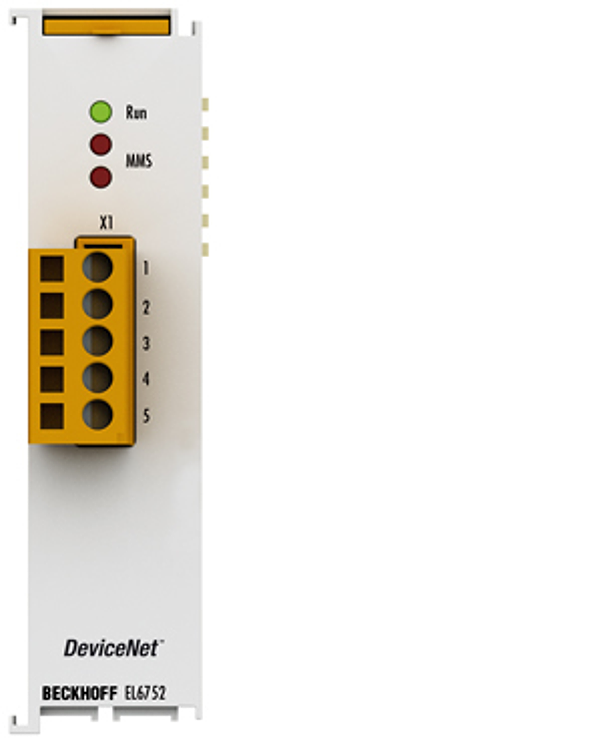

Beckhoff EL6752
EL6752 | DeviceNet master/slave terminal
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The Terminal enables within an EtherCAT Terminal network the integration of any DeviceNet devices and can either be master (EL6752) or slave (EL6752-0010). The DeviceNet terminal has a powerful protocol implementation with many features:
Технические характеристики
| Technology: | DeviceNet master terminal |
| Fieldbus: | DeviceNet |
| Number of fieldbus channels: | 1 |
| Data transfer rates: | 125, 250, 500 kbaud |
| Interfaces: | open style connector, 5-pin, according to DeviceNet specification, galvanically decoupled (Connector is supplied.) |
| Communication: | DeviceNet network master (scanner), optionally DeviceNet slave |
| Bus device: | max. 63 slaves |
| Hardware diagnosis: | status LEDs |
| Distributed clocks: | – |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 260 mA |
| Special features: | DeviceNet scanner |
| Weight: | approx. 70 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL, Ex |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
