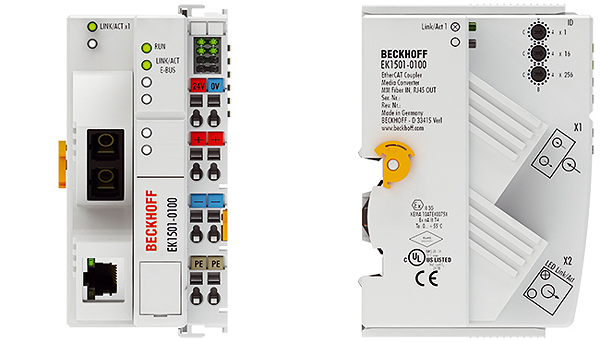

Beckhoff EK1501-0100
EK1501-0100 | EtherCAT Coupler, media converter (multimode fibre optic IN, RJ45 OUT) with ID switch
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EK1501-0100 coupler connects EtherCAT with the EtherCAT Terminals (ELxxxx). A station consists of an EK1501-0100 coupler, any number of EtherCAT Terminals, an EL9011 bus end cap or an EK1110 EtherCAT extension. The coupler converts the passing telegrams from Ethernet 100BASE-FX to E-bus signal representation. The multimode glass fibre connection enables distances of up to 2 km between two couplers.
Технические характеристики
| Task within EtherCAT system: | media transition from multimode fibre optic to RJ45 copper physics and coupling of EtherCAT Terminals (ELxxxx) |
| Data transfer medium: | multimode glass fibre 50/125 µm; Ethernet/EtherCAT cable (min. Cat. 5), shielded |
| Distance between stations: | max. 2000 m (100BASE-FX); max. 100 m (100BASE-TX) |
| Number of EtherCAT Terminals: | up to 65,534 |
| Type/number of peripheral signals: | max. 4.2 GB addressable I/O points |
| Number of configurable IDs: | 4096 |
| Protocol: | EtherCAT |
| Delay: | approx. 1 µs |
| Data transfer rates: | 100 Mbit/s |
| Configuration: | not required |
| Bus interface: | 1 x SC Duplex; 1 x RJ45 |
| Power supply: | 24 V DC (-15 %/+20 %) |
| Input current: | 130 mA + (total E-bus current)/4 |
| Current supply E-bus: | 2000 mA |
| Current consumption 24 V DC: | typ. 70 mA |
| Current consumption E-bus: | – |
| Power contacts: | max. 24 V DC/max. 10 A |
| Weight: | approx. 190 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE, UL, ATEX |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
