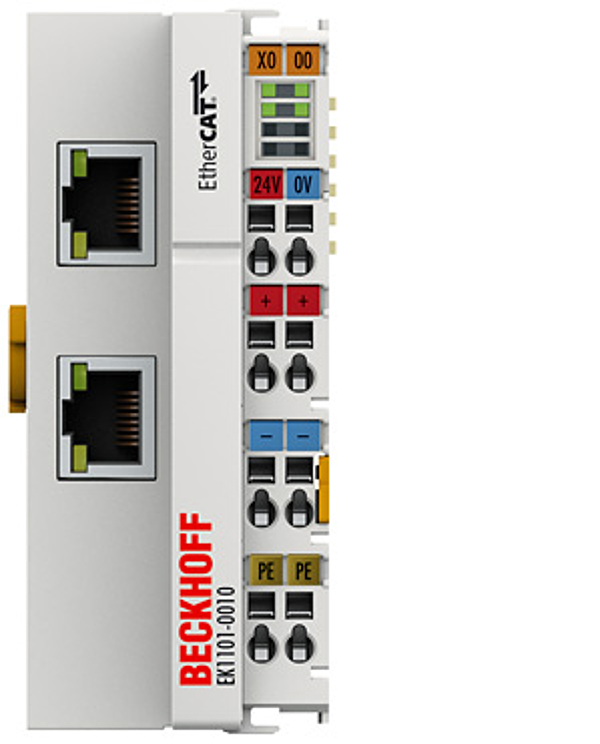

Авторское право на изображение: Beckhoff
Beckhoff EK1101-0010
EK1101-0010 | EtherCAT Coupler with ID switch, Extended Distance
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EK1101-0010 coupler connects EtherCAT with the EtherCAT Terminals (ELxxxx). A station consists of an EK1101-0010 coupler, any number of EtherCAT Terminals and a bus end cap. The coupler converts the passing telegrams from Ethernet 100BASE-TX to E-bus signal representation.
Технические характеристики
| Task within EtherCAT system: | coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks, with identity verification |
| Data transfer medium: | Ethernet/EtherCAT cable (min. Cat. 5), shielded |
| Distance between stations: | max. 300 m (copper, Cat. 5, 4-wire) |
| Number of EtherCAT Terminals: | up to 65,534 |
| Type/number of peripheral signals: | max. 4.2 GB addressable I/O points |
| Number of configurable IDs: | 4096 |
| Protocol: | EtherCAT |
| Delay: | approx. 1 µs |
| Data transfer rates: | 100 Mbit/s |
| Configuration: | not required |
| Bus interface: | 2 x RJ45 |
| Power supply: | 24 V DC (-15 %/+20 %) |
| Current consumption from US: | 90 mA + (∑ E-bus current/4) |
| Current consumption from UP: | load |
| Current supply E-bus: | 2000 mA |
| Power contacts: | max. 24 V DC/max. 10 A |
| Electrical isolation: | 500 V (power contact/supply voltage/Ethernet) |
| Weight: | approx. 105 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE |
