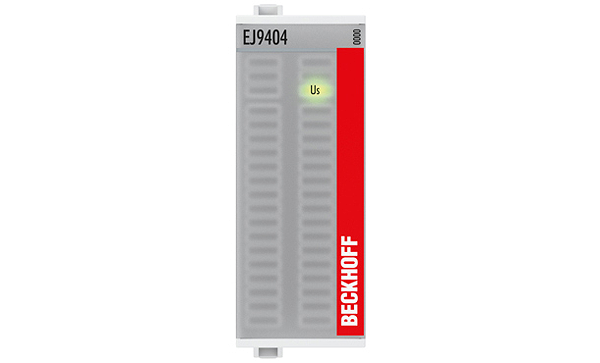

Beckhoff EJ9404
EJ9404 | Power supply plug-in module for E-bus, 12 A
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EJ9404 EtherCAT plug-in module is used in combination with the EJ1101-0022 EtherCAT Coupler to supply the E-bus with power. Data is exchanged between the EtherCAT Coupler and the plug-in module over the E-bus. Each EtherCAT plug-in module draws a certain amount of current from the E-bus (see “Current consumption E-bus” in the technical data). This current is fed into the E-bus by the power supply plug-in module. The maximum output current is 12 A.
Технические характеристики
| Technology: | power supply module for E-bus |
| Short-circuit proof: | – |
| Input voltage: | 24 V DC (-15 %/+20 %) |
| Input current: | approx. 10 mA + (E-bus/6.25) |
| Output voltage: | – |
| Max. output current: | 12 A |
| Current consumption E-bus: | – |
| Electrical isolation: | – |
| Diagnostics in the process image: | – |
| Dimensions (W x H x D): | 24 mm x 66 mm x 55 mm |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class: | IP 20 |
| Approvals: | CE, UL |
