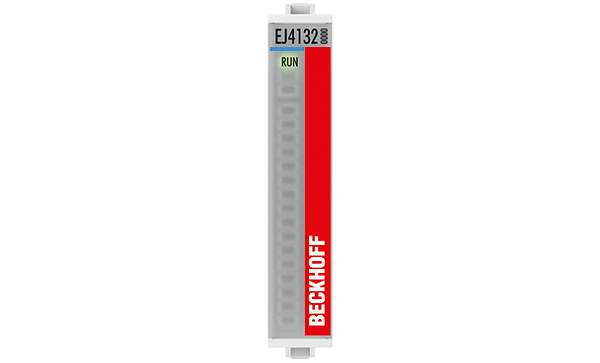

Beckhoff EJ4132
EJ4132 | 2-channel analog output -10…+10 V, 16 bit
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EJ4132 analog output generates signals in the range from -10…+10 V. The voltage is supplied to the process level with a resolution of 16 bit, and is electrically isolated. The output channels of the EtherCAT plug-in module have a common ground potential.
Технические характеристики
| Connection technology: | 2-wire, single-ended |
| Number of outputs: | 2 |
| Signal voltage: | -10…+10 V |
| Distributed clocks: | yes |
| Distributed clock precision: | << 1 µs |
| Load: | > 5 kΩ (short-circuit proof) |
| Output error: | < 0.1 % (relative to end value) |
| Resolution: | 16 bit (incl. sign) |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Conversion time: | ~ 40 µs |
| Current consumption periphery: | – |
| Current consumption E-bus: | typ. 185 mA |
| Special features: | Watchdog parameterisable; user synchronisation can be activated. |
| Dimensions (W x H x D): | approx. 12 mm x 66 mm x 55 mm |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/see documentation |
| Approvals/markings: | CE, UL |
