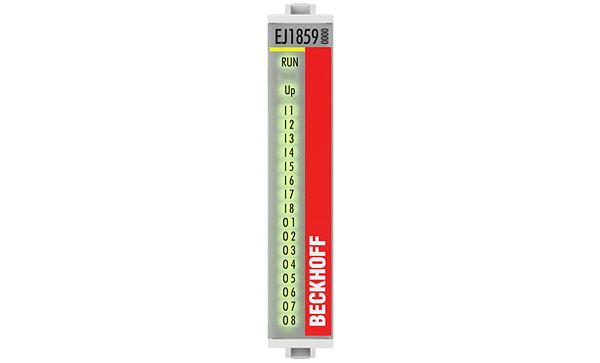

Beckhoff EJ1859
EJ1859 | 8-channel digital input + 8-channel digital output 24 V DC
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The digital EJ1859 EtherCAT plug-in module combines eight digital inputs and eight digital outputs in one device. The inputs have a filter of 3.0 ms. The outputs process load currents up to 0.5 A, are short-circuit proof and protected against polarity reversal. The signal states are displayed by LEDs.
Технические характеристики
| Specification: | EN 61131-2, type 1/3 |
| Number of channels: | 8 inputs + 8 outputs |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| “0” signal voltage: | -3…+5 V (EN 61131-2, type 1/3) |
| “1” signal voltage: | 11…30 V (EN 61131-2, type 3) |
| Input current: | typ. 3 mA (EN 61131-2, type 3) |
| Input filter: | typ. 3.0 ms |
| Distributed clocks: | – |
| Load type: | ohmic, inductive, lamp load |
| Max. output current: | 0.5 A (per channel) |
| Reverse voltage protection: | yes |
| Breaking energy: | < 150 mJ/channel |
| Switching times: | typ. TON: 60 µs, TOFF: 300 µs |
| Auxiliary power current: | no data |
| Current consumption E-bus: | typ. 90 mA |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Bit width in the process image: | 8 inputs + 8 outputs |
| Special features: | combi module, 8 x output 24 V DC, max. output current 0.5 A, load type: ohmic, inductive, lamp load, reverse voltage protection |
| Dimensions (W x H x D): | approx. 12 mm x 66 mm x 55 mm |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class: | IP 20 |
| Approvals/markings: | CE, UL |
