ABB 2CPX035880R9999

KS215ZR

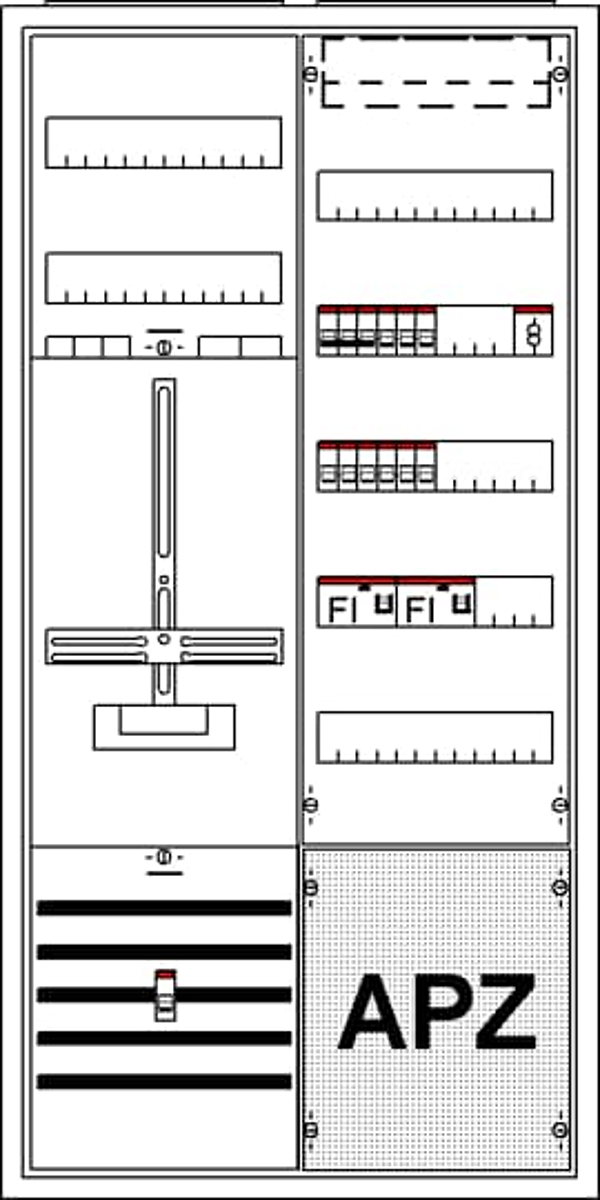

KS215ZR Meter Cabinet Compl. A27

Описание

Meter board, series ComfortLine A, fully assembled cabinet, with Metering cross, Expansion option: Lateral, for the internal use, with Door, class of protection II (double insulated), degree of protection IP31, IK code 07, rated current 63 A, powder-coated, in RAL 9016, enclosure out of sheet steel, single-leaf door, door out of sheet steel, with Standard closure, door opening angle 120 degree, door hinge right or left, rear wall out of sheet steel / plastic, cable entry on top via membrane flange mounted, on bottom via 2x cable entry flange included, on side via flange opening pre-punched, rear wall cable entry part is pre-punched, dimensions in mm (H x W x D): 1100 x 550 x 215, Metering module pre-wired, Earthing system TN-S, 5-pole, Direct connection, net side compartment, meter space: with busbar, pre-assembled for main switch SH, incoming terminals up to 35 mm², system side compartment, meter space: with Main branch terminal, Number of meter spaces single tariff 1, Number of distributor rows 5, incl. following devices: 2 x Residual current circuit breaker 40/0,03A 4-pole, 9 x miniature circuit breaker B16A/1-pole, 1 x minitiature circuit breaker B16A/3 pole complete with phase connection blocks, 1 beltransformer 16/4-8-12, wiring 3-pole/10 qmm from metering board to energy board (included), no devices included, Ratchet unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, 90 degree press and turn closure, RAL 7035
