Produkt
Werma
80645055
Poproś o ofertę
Prawa autorskie do obrazu: Werma

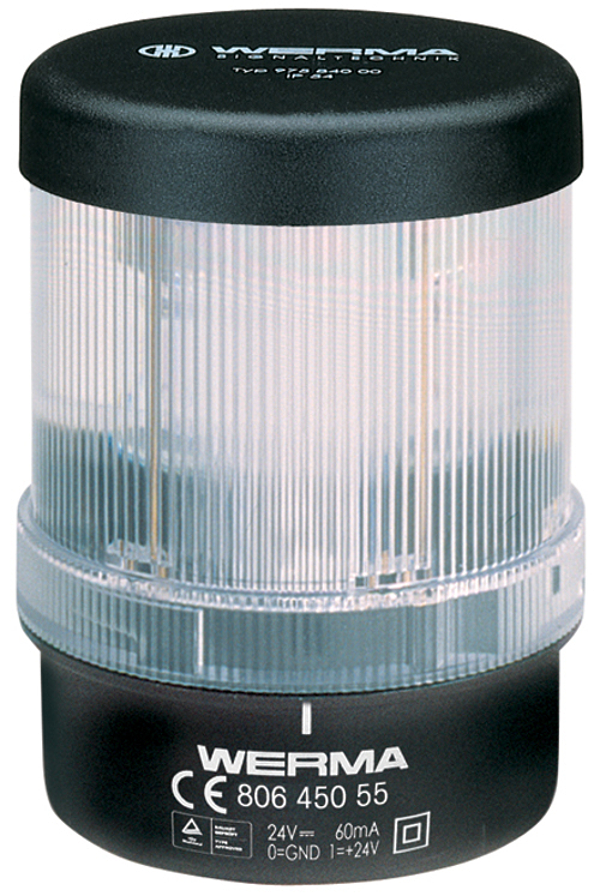

Werma 80645055
Monit. LED Beacon BWM 24VDC CL
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
TÜV certified LED Muting beacon. Current monitoring possible. Approved for muting use according to IEC 61496-1. For use in laser technology according to EN 60825-1, restart warning,, timed triggering, change of operating mode
Parametry techniczne
| Height: | 97 mm |
| Diameter: | 75 mm |
| Materials: | PA-GF PC PC/ABS |
| Dome colour: | Clear |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Spring-type terminal |
| cross-sectional area maximum: | 2,50mm² / 14AWG |
| Cable entry: | Through hole |
| Cable entry maximum: | d = 14 mm |
| Type of fixing: | Base mounting Wall mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +55°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 154 g |
| Product weight: | 121 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 60 mA |
| Rated inrush current: | 60 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Light source: | LED |
| Light colour: | White |
| Optical signal image: | Permanent |
| Service life optical: | 100,000 h maximum |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
