Produkt
Weidmueller
8951420010
CP M SNT3 1000W 24V 40A
Poproś o ofertę

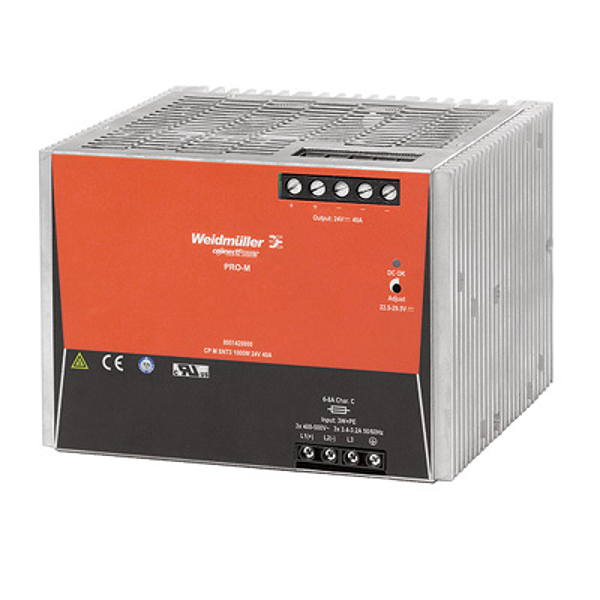

Prawa autorskie do obrazu: Weidmueller
Weidmueller 8951420010
CP M SNT3 1000W 24V 40A
1478200000
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Delivery status: | Discontinued |
| Available until: | 2016-06-30 |
| Type: | CP M SNT3 1000W 24V 40A |
| Order No.: | 8951420010 |
| Version: | Power supply, switch-mode power supply unit, 24 V |
| GTIN (EAN): | 4050118143690 |
| Qty.: | 1 pc(s). |
| Width: | 180 mm |
| Width (inches): | 7.087 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 150 mm |
| Depth (inches): | 5.905 inch |
| Net weight: | 4,300 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E255651 |
| AC current consumption: | 2.0 A @ 3 x 500 V AC / 2.5 A @ 3 x 400 V AC |
| AC input voltage range: | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| Connection system: | Screw connection |
| DC current consumption: | 1.3 A @ 800 V DC / 2.4 A @ 450 V DC |
| DC input voltage range: | 450...800 V DC (max. 500 V DC acc. to UL508) |
| Frequency range AC: | 47...63 Hz |
| Input fuse: | Yes |
| Input fuse (internal): | Yes |
| Inrush current: | max. 60 A |
| Rated input voltage: | 3 x 400...3 x 500 V AC (wide-range input) |
| Wire connection method: | Screw connection |
| Continous output current @ UNominal: | 48 A @ 45 °C, 42,7 A @ 55 °C, 30 A @ 70 °C |
| Nominal output current for Unom: | 40 A @ 60 °C |
| Output current: | 40 A |
| Output power: | 960 W |
| Output voltage: | 24 V |
| Output voltage: | 22.5...29.5 V (adjustable via potentiometer on front) |
| Output voltage type: | DC |
| Overload protection: | Yes |
| Parallel connection option: | yes, max. 3 |
| Rated output voltage: | 24 V DC ± 1 % |
| Reserve capacity @ UNominal: | 48 A for 1 min, ED = 5 % |
| Wire connection method: | Screw connection |
| AC failure bridging time @ Inom: | > 25 ms at 3 x 500 V AC / > 20 ms at 3 x 400 V AC |
| Clip-in foot: | metal |
| Degree of efficiency: | 91 % @ 3 x 500 V AC / 91 % @ 3 x 400 V AC |
| Housing version: | Metal, corrosion resistant |
| Indication: | Operation, green LED |
| MTBF: | > 500,000 h in accordance with IEC 61709 (SN29500) |
| Mounting position, installation notice: | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| Operating temperature: | -25 °C...70 °C |
| Power factor (approx.): | > 0.6 @ 3 x 500 V AC / > 0.6 @ 3 x 400 V AC |
| Protection against over-heating: | Yes |
| Protection against reverse voltages from the load: | 30…35 V DC |
| Protection degree: | IP20 |
| Short-circuit protection: | Yes |
| Output current: | 40 A |
| Limiting of mains voltage harmonic currents: | According to EN 61000-3-2 |
| Noise emission in accordance with EN55032: | Class B |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips) |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Insulation voltage: | 3 kV input/ouput; 2 kV input/earth; 0.5 kV output/earth |
| Pollution severity: | 2 |
| Protection class: | I, with PE connection |
| electrical isolation, input-earth: | 2 kV |
| electrical isolation, input-output: | 3 kV |
| electrical isolation, output-earth: | 0.5 kV |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 10 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 4 for L1/L2/L3/PE |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Wire connection cross section, flexible (input), max.: | 2.5 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 6 |
| Conductor cross-section, AWG/kcmil , min.: | 22 |
| Conductor cross-section, flexible , max.: | 10 mm² |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 16 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Number of terminals: | 5 (++ / ---) |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Certificate No. (GERMLLOYD): | 94767-10 |
| Certificate no. (cULus): | E258476 |
| Certificate No. (cURus): | E255651 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
| Delivery status: | Discontinued |
| Available until: | 2016-06-30 |
| Type: | CP M SNT3 1000W 24V 40A |
| Order No.: | 8951420010 |
| Version: | Power supply, switch-mode power supply unit, 24 V |
| GTIN (EAN): | 4050118143690 |
| Qty.: | 1 pc(s). |
| Width: | 180 mm |
| Width (inches): | 7.087 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 150 mm |
| Depth (inches): | 5.905 inch |
| Net weight: | 4,300 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E255651 |
| AC current consumption: | 2.0 A @ 3 x 500 V AC / 2.5 A @ 3 x 400 V AC |
| AC input voltage range: | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| Connection system: | Screw connection |
| DC current consumption: | 1.3 A @ 800 V DC / 2.4 A @ 450 V DC |
| DC input voltage range: | 450...800 V DC (max. 500 V DC acc. to UL508) |
| Frequency range AC: | 47...63 Hz |
| Input fuse: | Yes |
| Input fuse (internal): | Yes |
| Inrush current: | max. 60 A |
| Rated input voltage: | 3 x 400...3 x 500 V AC (wide-range input) |
| Wire connection method: | Screw connection |
| Continous output current @ UNominal: | 48 A @ 45 °C, 42,7 A @ 55 °C, 30 A @ 70 °C |
| Nominal output current for Unom: | 40 A @ 60 °C |
| Output current: | 40 A |
| Output power: | 960 W |
| Output voltage: | 24 V |
| Output voltage: | 22.5...29.5 V (adjustable via potentiometer on front) |
| Output voltage type: | DC |
| Overload protection: | Yes |
| Parallel connection option: | yes, max. 3 |
| Rated output voltage: | 24 V DC ± 1 % |
| Reserve capacity @ UNominal: | 48 A for 1 min, ED = 5 % |
| Wire connection method: | Screw connection |
| AC failure bridging time @ Inom: | > 25 ms at 3 x 500 V AC / > 20 ms at 3 x 400 V AC |
| Clip-in foot: | metal |
| Degree of efficiency: | 91 % @ 3 x 500 V AC / 91 % @ 3 x 400 V AC |
| Housing version: | Metal, corrosion resistant |
| Indication: | Operation, green LED |
| MTBF: | > 500,000 h in accordance with IEC 61709 (SN29500) |
| Mounting position, installation notice: | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| Operating temperature: | -25 °C...70 °C |
| Power factor (approx.): | > 0.6 @ 3 x 500 V AC / > 0.6 @ 3 x 400 V AC |
| Protection against over-heating: | Yes |
| Protection against reverse voltages from the load: | 30…35 V DC |
| Protection degree: | IP20 |
| Short-circuit protection: | Yes |
| Output current: | 40 A |
| Limiting of mains voltage harmonic currents: | According to EN 61000-3-2 |
| Noise emission in accordance with EN55032: | Class B |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips) |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Insulation voltage: | 3 kV input/ouput; 2 kV input/earth; 0.5 kV output/earth |
| Pollution severity: | 2 |
| Protection class: | I, with PE connection |
| electrical isolation, input-earth: | 2 kV |
| electrical isolation, input-output: | 3 kV |
| electrical isolation, output-earth: | 0.5 kV |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 10 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 4 for L1/L2/L3/PE |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Wire connection cross section, flexible (input), max.: | 2.5 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 6 |
| Conductor cross-section, AWG/kcmil , min.: | 22 |
| Conductor cross-section, flexible , max.: | 10 mm² |
| Conductor cross-section, flexible , min.: | 0.5 mm² |
| Conductor cross-section, rigid , max.: | 16 mm² |
| Conductor cross-section, rigid , min.: | 0.5 mm² |
| Number of terminals: | 5 (++ / ---) |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Certificate No. (GERMLLOYD): | 94767-10 |
| Certificate no. (cULus): | E258476 |
| Certificate No. (cURus): | E255651 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
