Produkt
Weidmueller
8937940000
MOS 24VDC/5-33VDC 10A
Poproś o ofertę

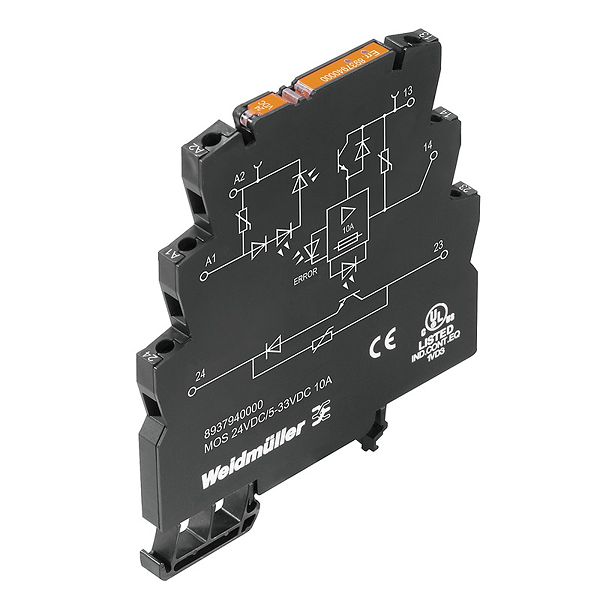

Prawa autorskie do obrazu: Weidmueller
Weidmueller 8937940000
MOS 24VDC/5-33VDC 10A
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | MOS 24VDC/5-33VDC 10A |
| Order No.: | 8937940000 |
| Version: | MICROOPTO, solid-state relais, 1 NO contact (POWER MOS-FET), Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 5...33 V DC, Continuous current: 10 A, Screw connection |
| GTIN (EAN): | 4032248716173 |
| Qty.: | 1 pc(s). |
| Width: | 6.1 mm |
| Width (inches): | 0.24 inch |
| Height: | 88.1 mm |
| Height (inches): | 3.468 inch |
| Depth: | 97.8 mm |
| Depth (inches): | 3.85 inch |
| Net weight: | 38.81 g |
| Humidity: | 5 - 93% rel. humidity, Tu = 40°C, no condensation |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...60 °C |
| Storage temperature: | -40 °C...60 °C |
| MTTF: | 399 Years |
| REACH SVHC: | Lead 7439-92-1 |
| Rated control voltage: | 24 V DC ±20 % |
| Power rating: | 400 mW |
| Cut-in / dropout voltage: | 18 V / 13 V DC |
| Status indicator: | Green LED |
| Protective circuit: | Varistor, Reverse polarity protection |
| Rated switching voltage: | 5...33 V DC |
| Continuous current: | 10 A |
| Load category: | LC A |
| Pulse load, max. current: | ≤ 11 A (≤ 200 µs) |
| Switch-on delay: | typ. 250 µs |
| Switch-off delay: | typical. 700 µs |
| Voltage drop at max. load: | approx. 100 mV |
| Leakage current: | < 1 mA |
| Min. switching current: | 10 mA |
| Short-circuit-proof: | Yes (limited for 4 h / current limitation external < 200 A) |
| Load side status indicator: | LED red, short-circuit /overload at the output |
| Protective circuit, load side: | Current sensor, Varistor, Free-wheeling diode |
| max. switching frequency (DC control voltage): | 50 Hz |
| Solid-state type: | Bipolar transistor |
| Nominal switching voltage: | 24 VDC ±20% |
| Continuous current: | 50 mA |
| Switch-off delay: | 5 s |
| Contact type: | 1 NO contact (POWER MOS-FET) |
| Rail: | TS 35 |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 300 V |
| Pollution severity: | 2 |
| Surge voltage category: | III |
| Clearance and creepage distances for control side - load side: | > 3 mm |
| Impulse withstand voltage: | 4 kV (1.2/50 µs) |
| Protection degree: | IP20 |
| Standards: | DIN EN 50178, GL 2003-Vl-Abs. 9, IEC 62314, UL508 |
| Certificate No. (DNVGL): | TAE000033E |
| Certificate No. (GERMLLOYD): | 54853-08 |
| Certificate no. (cULus): | E141197 |
| Wire connection method: | Screw connection |
| Stripping length, rated connection: | 7 mm |
| Tightening torque, min.: | 0.4 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Clamping range, rated connection: | 2.5 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 4 mm² |
| Wire cross-section, solid, min.: | 0.5 mm² |
| Wire cross-section, solid, max.: | 4 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Product information: | The cable lengths must not exceed 30 m. |
| ETIM 6.0: | EC001504 |
| ETIM 7.0: | EC001504 |
| eClass 9.0: | 27-37-16-04 |
| eClass 9.1: | 27-37-16-04 |
| eClass 10.0: | 27-37-16-04 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | MOS 24VDC/5-33VDC 10A |
| Order No.: | 8937940000 |
| Version: | MICROOPTO, solid-state relais, 1 NO contact (POWER MOS-FET), Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 5...33 V DC, Continuous current: 10 A, Screw connection |
| GTIN (EAN): | 4032248716173 |
| Qty.: | 1 pc(s). |
| Width: | 6.1 mm |
| Width (inches): | 0.24 inch |
| Height: | 88.1 mm |
| Height (inches): | 3.468 inch |
| Depth: | 97.8 mm |
| Depth (inches): | 3.85 inch |
| Net weight: | 38.81 g |
| Humidity: | 5 - 93% rel. humidity, Tu = 40°C, no condensation |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...60 °C |
| Storage temperature: | -40 °C...60 °C |
| MTTF: | 399 Years |
| REACH SVHC: | Lead 7439-92-1 |
| Rated control voltage: | 24 V DC ±20 % |
| Power rating: | 400 mW |
| Cut-in / dropout voltage: | 18 V / 13 V DC |
| Status indicator: | Green LED |
| Protective circuit: | Varistor, Reverse polarity protection |
| Rated switching voltage: | 5...33 V DC |
| Continuous current: | 10 A |
| Load category: | LC A |
| Pulse load, max. current: | ≤ 11 A (≤ 200 µs) |
| Switch-on delay: | typ. 250 µs |
| Switch-off delay: | typical. 700 µs |
| Voltage drop at max. load: | approx. 100 mV |
| Leakage current: | < 1 mA |
| Min. switching current: | 10 mA |
| Short-circuit-proof: | Yes (limited for 4 h / current limitation external < 200 A) |
| Load side status indicator: | LED red, short-circuit /overload at the output |
| Protective circuit, load side: | Current sensor, Varistor, Free-wheeling diode |
| max. switching frequency (DC control voltage): | 50 Hz |
| Solid-state type: | Bipolar transistor |
| Nominal switching voltage: | 24 VDC ±20% |
| Continuous current: | 50 mA |
| Switch-off delay: | 5 s |
| Contact type: | 1 NO contact (POWER MOS-FET) |
| Rail: | TS 35 |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 300 V |
| Pollution severity: | 2 |
| Surge voltage category: | III |
| Clearance and creepage distances for control side - load side: | > 3 mm |
| Impulse withstand voltage: | 4 kV (1.2/50 µs) |
| Protection degree: | IP20 |
| Standards: | DIN EN 50178, GL 2003-Vl-Abs. 9, IEC 62314, UL508 |
| Certificate No. (DNVGL): | TAE000033E |
| Certificate No. (GERMLLOYD): | 54853-08 |
| Certificate no. (cULus): | E141197 |
| Wire connection method: | Screw connection |
| Stripping length, rated connection: | 7 mm |
| Tightening torque, min.: | 0.4 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Clamping range, rated connection: | 2.5 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 4 mm² |
| Wire cross-section, solid, min.: | 0.5 mm² |
| Wire cross-section, solid, max.: | 4 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Product information: | The cable lengths must not exceed 30 m. |
| ETIM 6.0: | EC001504 |
| ETIM 7.0: | EC001504 |
| eClass 9.0: | 27-37-16-04 |
| eClass 9.1: | 27-37-16-04 |
| eClass 10.0: | 27-37-16-04 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,046 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
