Produkt
Weidmueller
8800220000
MI8A-I/O S SUBD15B
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

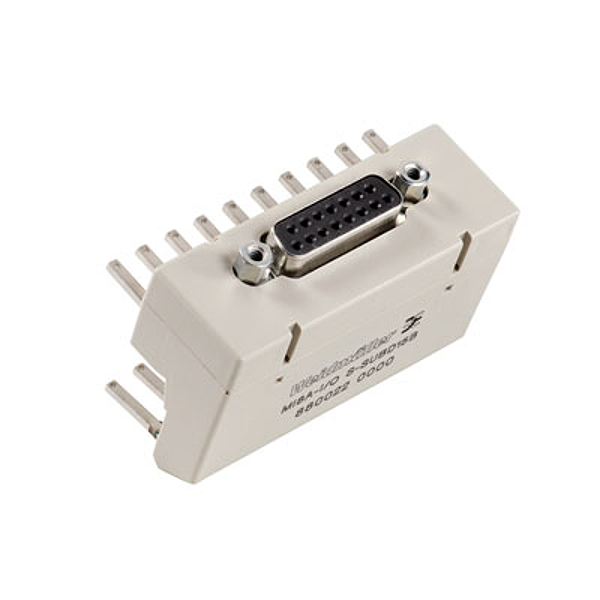

Weidmueller 8800220000
MI8A-I/O S SUBD15B
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | MI8A-I/O S SUBD15B |
| Order No.: | 8800220000 |
| Version: | Adapter, MICRO-Interface, IEC 60603/DIN41612 plug-in connectors, Screw connection |
| GTIN (EAN): | 4032248497157 |
| Qty.: | 10 pc(s). |
| Length: | 32 mm |
| Length (inches): | 1.26 inch |
| Width: | 61 mm |
| Width (inches): | 2.402 inch |
| Height: | 42 mm |
| Height (inches): | 1.654 inch |
| Net weight: | 31.8 g |
| Operating temperature, max.: | 50 °C |
| Operating temperature, min.: | 0 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -20 °C |
| Operating temperature: | 0...50 °C |
| Storage temperature: | -20...85 °C |
| REACH SVHC: | Potassium perfluorobutane sulfonate 29420-49-3 |
| Connection on control side: | IEC 60603/DIN41612 plug-in connectors |
| Number of poles (control side): | 15-pole female |
| Voltage supply: | max. 30 V AC/DC |
| Operating voltage: | 30 V UC |
| Max. current per channel: | 0.5 A |
| Total operating current: | 2 A |
| According to: | DIN EN 50178 |
| Rated insulation voltage: | < 50 V AC |
| Surge voltage category: | III |
| Pollution severity level: | 2 |
| Insulation test voltage: | 0.35 kVAC |
| Type of connection: | Screw connection |
| ETIM 6.0: | EC002584 |
| ETIM 7.0: | EC002584 |
| eClass 9.0: | 27-33-02-92 |
| eClass 9.1: | 27-24-22-92 |
| eClass 10.0: | 27-33-02-92 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | MI8A-I/O S SUBD15B |
| Order No.: | 8800220000 |
| Version: | Adapter, MICRO-Interface, IEC 60603/DIN41612 plug-in connectors, Screw connection |
| GTIN (EAN): | 4032248497157 |
| Qty.: | 10 pc(s). |
| Length: | 32 mm |
| Length (inches): | 1.26 inch |
| Width: | 61 mm |
| Width (inches): | 2.402 inch |
| Height: | 42 mm |
| Height (inches): | 1.654 inch |
| Net weight: | 31.8 g |
| Operating temperature, max.: | 50 °C |
| Operating temperature, min.: | 0 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -20 °C |
| Operating temperature: | 0...50 °C |
| Storage temperature: | -20...85 °C |
| REACH SVHC: | Potassium perfluorobutane sulfonate 29420-49-3 |
| Connection on control side: | IEC 60603/DIN41612 plug-in connectors |
| Number of poles (control side): | 15-pole female |
| Voltage supply: | max. 30 V AC/DC |
| Operating voltage: | 30 V UC |
| Max. current per channel: | 0.5 A |
| Total operating current: | 2 A |
| According to: | DIN EN 50178 |
| Rated insulation voltage: | < 50 V AC |
| Surge voltage category: | III |
| Pollution severity level: | 2 |
| Insulation test voltage: | 0.35 kVAC |
| Type of connection: | Screw connection |
| ETIM 6.0: | EC002584 |
| ETIM 7.0: | EC002584 |
| eClass 9.0: | 27-33-02-92 |
| eClass 9.1: | 27-24-22-92 |
| eClass 10.0: | 27-33-02-92 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,032 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
