Produkt
Weidmueller
2502800000
WPD 232 2X185/2X185 GY
Poproś o ofertę

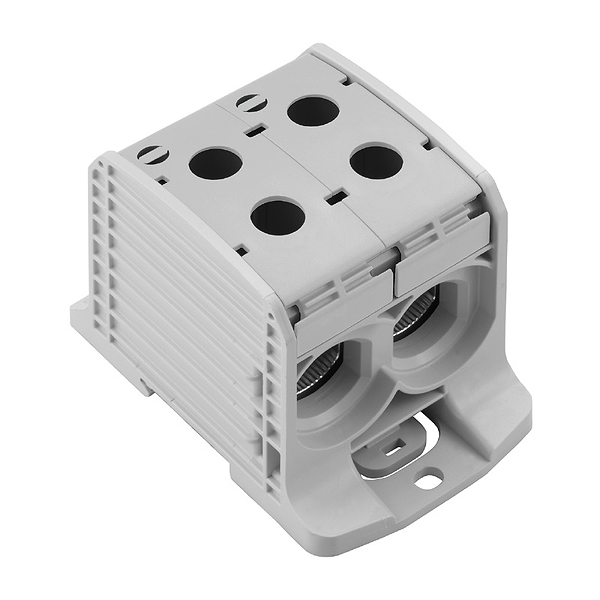

Prawa autorskie do obrazu: Weidmueller
Weidmueller 2502800000
WPD 232 2X185/2X185 GY
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WPD 232 2X185/2X185 GY |
| Order No.: | 2502800000 |
| Version: | W-Series, Distribution block, Rated cross-section: 185 mm², Terminal rail / mounting plate |
| GTIN (EAN): | 4050118516623 |
| Qty.: | 1 pc(s). |
| Width: | 67.6 mm |
| Width (inches): | 2.661 inch |
| Height: | 105 mm |
| Height (inches): | 4.134 inch |
| Depth: | 73.5 mm |
| Depth (inches): | 2.894 inch |
| Net weight: | 397 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | Light Grey |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | CNEX18ATEX0016U |
| Certificate No. (IECEX): | IECEXNEX18.0010U |
| Max. voltage (ATEX): | 1100 V |
| Current (ATEX): | 353 A |
| Wire cross section max. (ATEX): | 185 mm² |
| Max. voltage (IECEX): | 1100 V |
| Current (IECEX): | 353 A |
| Version: | Screw connection |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 4 |
| PE connection: | No |
| Installation advice: | Terminal rail / mounting plate |
| Type of mounting: | Snap-on |
| Rated cross-section: | 185 mm² |
| Rated voltage: | 1,000 |
| Rated AC voltage: | 1,000 V AC |
| Rated DC voltage: | 1,000 V DC |
| Rated current: | 250 A |
| Standards: | IEC 60947-7-1, UL 1059, CSA |
| Volume resistance according to IEC 60947-7-x: | 0.09 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 11.3 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Surge voltage category: | III |
| Certificate No. (cURus): | E60693 |
| Product information: | You will find additional information in the downloadsection of the onlinecatalogue |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
| Type: | WPD 232 2X185/2X185 GY |
| Order No.: | 2502800000 |
| Version: | W-Series, Distribution block, Rated cross-section: 185 mm², Terminal rail / mounting plate |
| GTIN (EAN): | 4050118516623 |
| Qty.: | 1 pc(s). |
| Width: | 67.6 mm |
| Width (inches): | 2.661 inch |
| Height: | 105 mm |
| Height (inches): | 4.134 inch |
| Depth: | 73.5 mm |
| Depth (inches): | 2.894 inch |
| Net weight: | 397 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | Light Grey |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | CNEX18ATEX0016U |
| Certificate No. (IECEX): | IECEXNEX18.0010U |
| Max. voltage (ATEX): | 1100 V |
| Current (ATEX): | 353 A |
| Wire cross section max. (ATEX): | 185 mm² |
| Max. voltage (IECEX): | 1100 V |
| Current (IECEX): | 353 A |
| Version: | Screw connection |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 4 |
| PE connection: | No |
| Installation advice: | Terminal rail / mounting plate |
| Type of mounting: | Snap-on |
| Rated cross-section: | 185 mm² |
| Rated voltage: | 1,000 |
| Rated AC voltage: | 1,000 V AC |
| Rated DC voltage: | 1,000 V DC |
| Rated current: | 250 A |
| Standards: | IEC 60947-7-1, UL 1059, CSA |
| Volume resistance according to IEC 60947-7-x: | 0.09 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 11.3 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Surge voltage category: | III |
| Certificate No. (cURus): | E60693 |
| Product information: | You will find additional information in the downloadsection of the onlinecatalogue |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,408 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
