Produkt
Weidmueller
2486090000
PRO RM 10
Poproś o ofertę

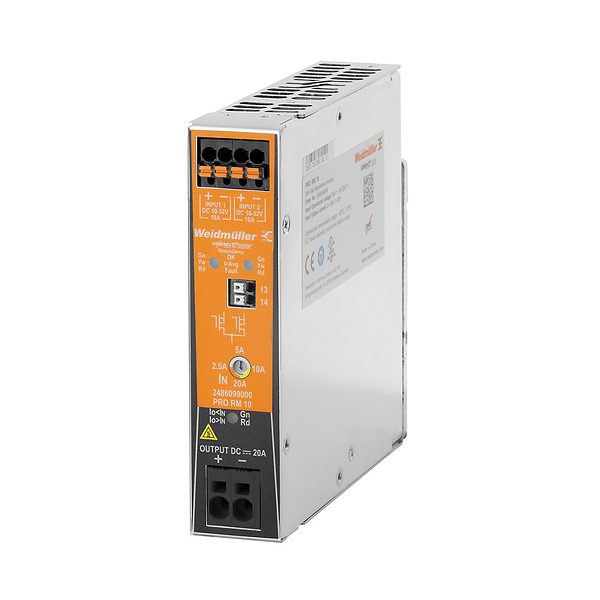

Prawa autorskie do obrazu: Weidmueller
Weidmueller 2486090000
PRO RM 10
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | PRO RM 10 |
| Order No.: | 2486090000 |
| Version: | Redundancy module, 24 V DC |
| GTIN (EAN): | 4050118496826 |
| Qty.: | 1 pc(s). |
| Width: | 30 mm |
| Width (inches): | 1.181 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 125 mm |
| Depth (inches): | 4.921 inch |
| Weight: | 497 g |
| Net weight: | 47 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Connection system: | PUSH IN |
| DC input voltage range: | 10 … 32 V DC |
| Input current: | 2 × 12 A (-40 °C ~ +45 °C), 2 × 10 A (+45 °C ~ +60 °C), 2 × 7.5 A (+70 °C) |
| Rated input voltage: | 24 V DC |
| Connection system: | PUSH IN |
| Continous output current @ UNominal: | 1 × 24 A (-40 °C ~ +45 °C), 1 × 20 A (+45 °C ~ +60 °C), 1 × 15 A (+70 °C) |
| Degree of efficiency: | > 98% |
| Derating: | > 60°C / 75% @ 70°C |
| Mounting position, installation notice: | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| Operating temperature: | -40 °C...70 °C |
| Protection degree: | IP20 |
| Vibration resistance IEC 60068-2-6: | 2.3 g (on DIN rail) |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Insulation voltage input / earth: | 0.5 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Protection class: | III, with no ground connection, for SELV |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.2 mm² |
| Conductor cross-section, rigid , max.: | 2.5 mm² |
| Conductor cross-section, rigid , min.: | 0.2 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 4 (+,+,−,−) |
| Screwdriver blade: | 0.6 x 3.5 |
| Wire connection cross section, flexible (input), max.: | 2.5 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 8 |
| Conductor cross-section, AWG/kcmil , min.: | 24 |
| Conductor cross-section, flexible , max.: | 6 mm² |
| Conductor cross-section, flexible , min.: | 0.2 mm² |
| Conductor cross-section, rigid , max.: | 10 mm² |
| Conductor cross-section, rigid , min.: | 0.2 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 2 (+ / -) |
| Screwdriver blade: | 0.6 x 3.5 |
| Wire connection cross-section, flexible (signal), max.: | 1.5 mm² |
| Wire connection cross-section, flexible (signal), min.: | 0.2 mm² |
| Wire connection method: | PUSH IN |
| Wire cross-section, AWG/kcmil , max.: | 16 |
| Wire cross-section, AWG/kcmil , min.: | 24 |
| Wire cross-section, solid , max.: | 1.5 mm² |
| Wire cross-section, solid , min.: | 0.2 mm² |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
| Type: | PRO RM 10 |
| Order No.: | 2486090000 |
| Version: | Redundancy module, 24 V DC |
| GTIN (EAN): | 4050118496826 |
| Qty.: | 1 pc(s). |
| Width: | 30 mm |
| Width (inches): | 1.181 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 125 mm |
| Depth (inches): | 4.921 inch |
| Weight: | 497 g |
| Net weight: | 47 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Connection system: | PUSH IN |
| DC input voltage range: | 10 … 32 V DC |
| Input current: | 2 × 12 A (-40 °C ~ +45 °C), 2 × 10 A (+45 °C ~ +60 °C), 2 × 7.5 A (+70 °C) |
| Rated input voltage: | 24 V DC |
| Connection system: | PUSH IN |
| Continous output current @ UNominal: | 1 × 24 A (-40 °C ~ +45 °C), 1 × 20 A (+45 °C ~ +60 °C), 1 × 15 A (+70 °C) |
| Degree of efficiency: | > 98% |
| Derating: | > 60°C / 75% @ 70°C |
| Mounting position, installation notice: | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| Operating temperature: | -40 °C...70 °C |
| Protection degree: | IP20 |
| Vibration resistance IEC 60068-2-6: | 2.3 g (on DIN rail) |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Insulation voltage input / earth: | 0.5 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Protection class: | III, with no ground connection, for SELV |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.2 mm² |
| Conductor cross-section, rigid , max.: | 2.5 mm² |
| Conductor cross-section, rigid , min.: | 0.2 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 4 (+,+,−,−) |
| Screwdriver blade: | 0.6 x 3.5 |
| Wire connection cross section, flexible (input), max.: | 2.5 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 8 |
| Conductor cross-section, AWG/kcmil , min.: | 24 |
| Conductor cross-section, flexible , max.: | 6 mm² |
| Conductor cross-section, flexible , min.: | 0.2 mm² |
| Conductor cross-section, rigid , max.: | 10 mm² |
| Conductor cross-section, rigid , min.: | 0.2 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 2 (+ / -) |
| Screwdriver blade: | 0.6 x 3.5 |
| Wire connection cross-section, flexible (signal), max.: | 1.5 mm² |
| Wire connection cross-section, flexible (signal), min.: | 0.2 mm² |
| Wire connection method: | PUSH IN |
| Wire cross-section, AWG/kcmil , max.: | 16 |
| Wire cross-section, AWG/kcmil , min.: | 24 |
| Wire cross-section, solid , max.: | 1.5 mm² |
| Wire cross-section, solid , min.: | 0.2 mm² |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
