2486070000
PRO DM 10
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

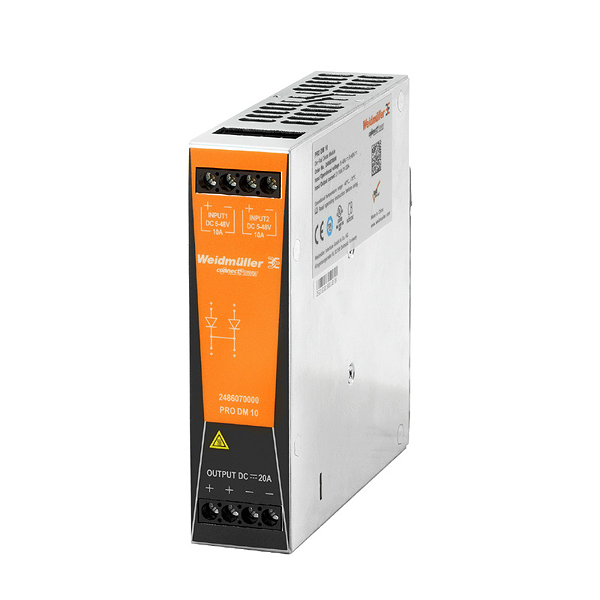

Weidmueller 2486070000
PRO DM 10
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | PRO DM 10 |
| Order No.: | 2486070000 |
| Version: | Diode module, 24 V DC |
| GTIN (EAN): | 4050118496772 |
| Qty.: | 1 pc(s). |
| Width: | 32 mm |
| Width (inches): | 1.26 inch |
| Height: | 125 mm |
| Height (inches): | 4.921 inch |
| Depth: | 125 mm |
| Depth (inches): | 4.921 inch |
| Net weight: | 502 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Connection system: | Screw connection |
| DC input voltage range: | 0...60 V DC |
| Input current: | 2 × 12 A (-40 °C ~ +45 °C), 2 × 10 A (+45 °C ~ +60 °C), 2 × 7.5 A (+70 °C) |
| Input fuse (internal): | No |
| Rated input voltage: | 24 V DC |
| Connection system: | Screw connection |
| Continous output current @ UNominal: | 1 × 24 A (-40 °C ~ +45 °C), 1 × 20 A (+45 °C ~ +60 °C), 1 × 15 A (+70 °C) |
| Protection against inverse voltage: | Yes |
| Residual ripple, breaking spikes: | Dependent on the power supplies used |
| Degree of efficiency: | > 97% @ 24 V Input voltage |
| Derating: | > 60°C / 75% load @ 70°C |
| Housing version: | Metal, corrosion resistant |
| MTBF: | > 150,000 h in accordance with MIL-HDBK-217 (40°C, Bellcore), > 750,000 h in accordance with IEC 61709 (40°C, SN29500) |
| Mounting position, installation notice: | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| Operating temperature: | -40 °C...70 °C |
| Protection degree: | IP20 |
| Surge voltage category: | III |
| Vibration resistance IEC 60068-2-6: | 2.3 g (on DIN rail) |
| Interference immunity test acc. to: | EN 55022, EN 55024, EN 61000-3-2,-3, EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted) |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Insulation voltage input / earth: | 0.5 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Pollution severity: | 2 |
| Protection class: | III, with no ground connection, for SELV |
| Surge voltage category: | III |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Conductor cross-section, AWG/kcmil , max.: | 10 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.22 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.18 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 4 (1+, 2+, 1-, 2-) |
| Screwdriver blade: | 0.8 x 4.0, PZ 1 |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Wire connection cross section, flexible (input), max.: | 4 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 10 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , max.: | 6 mm² |
| Conductor cross-section, flexible , min.: | 0.22 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.18 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 4 (++ / --) |
| Screwdriver blade: | 0.8 x 4.0, PZ 1 |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
| Type: | PRO DM 10 |
| Order No.: | 2486070000 |
| Version: | Diode module, 24 V DC |
| GTIN (EAN): | 4050118496772 |
| Qty.: | 1 pc(s). |
| Width: | 32 mm |
| Width (inches): | 1.26 inch |
| Height: | 125 mm |
| Height (inches): | 4.921 inch |
| Depth: | 125 mm |
| Depth (inches): | 4.921 inch |
| Net weight: | 502 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Connection system: | Screw connection |
| DC input voltage range: | 0...60 V DC |
| Input current: | 2 × 12 A (-40 °C ~ +45 °C), 2 × 10 A (+45 °C ~ +60 °C), 2 × 7.5 A (+70 °C) |
| Input fuse (internal): | No |
| Rated input voltage: | 24 V DC |
| Connection system: | Screw connection |
| Continous output current @ UNominal: | 1 × 24 A (-40 °C ~ +45 °C), 1 × 20 A (+45 °C ~ +60 °C), 1 × 15 A (+70 °C) |
| Protection against inverse voltage: | Yes |
| Residual ripple, breaking spikes: | Dependent on the power supplies used |
| Degree of efficiency: | > 97% @ 24 V Input voltage |
| Derating: | > 60°C / 75% load @ 70°C |
| Housing version: | Metal, corrosion resistant |
| MTBF: | > 150,000 h in accordance with MIL-HDBK-217 (40°C, Bellcore), > 750,000 h in accordance with IEC 61709 (40°C, SN29500) |
| Mounting position, installation notice: | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| Operating temperature: | -40 °C...70 °C |
| Protection degree: | IP20 |
| Surge voltage category: | III |
| Vibration resistance IEC 60068-2-6: | 2.3 g (on DIN rail) |
| Interference immunity test acc. to: | EN 55022, EN 55024, EN 61000-3-2,-3, EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted) |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Insulation voltage input / earth: | 0.5 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Pollution severity: | 2 |
| Protection class: | III, with no ground connection, for SELV |
| Surge voltage category: | III |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Conductor cross-section, AWG/kcmil , max.: | 10 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , min.: | 0.22 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.18 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 4 (1+, 2+, 1-, 2-) |
| Screwdriver blade: | 0.8 x 4.0, PZ 1 |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Wire connection cross section, flexible (input), max.: | 4 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 10 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , max.: | 6 mm² |
| Conductor cross-section, flexible , min.: | 0.22 mm² |
| Conductor cross-section, rigid , max.: | 6 mm² |
| Conductor cross-section, rigid , min.: | 0.18 mm² |
| Connection system: | Screw connection |
| Number of terminals: | 4 (++ / --) |
| Screwdriver blade: | 0.8 x 4.0, PZ 1 |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
