Produkt
Weidmueller
2122940000
AMG XMD
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

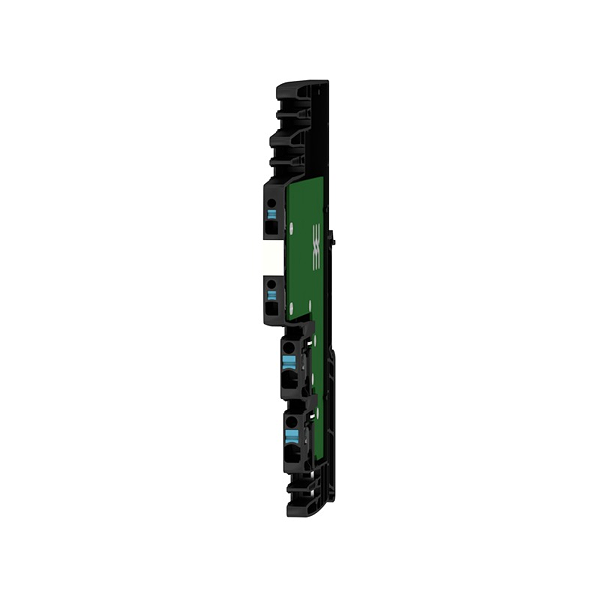

Weidmueller 2122940000
AMG XMD
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | AMG XMD |
| Order No.: | 2122940000 |
| Version: | Potential distributor |
| GTIN (EAN): | 4050118425406 |
| Qty.: | 10 pc(s). |
| Width: | 6.1 mm |
| Width (inches): | 0.24 inch |
| Height: | 125 mm |
| Height (inches): | 4.921 inch |
| Depth: | 96.5 mm |
| Depth (inches): | 3.799 inch |
| Net weight: | 27.5 g |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...55 °C |
| Storage temperature: | -40 °C...85 °C |
| MTTF: | 50,000 Years |
| REACH SVHC: | Lead 7439-92-1 |
| Connection system: | PUSH IN |
| Conformal coating: | No |
| Current load per contact point: | 12 A |
| Operating temperature: | -25 °C...55 °C |
| Protection degree: | IP20 |
| Total current load per potential: | 24 A |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , max.: | 2.5 mm² |
| Conductor cross-section, flexible , min.: | 0.14 mm² |
| Conductor cross-section, rigid , max.: | 2.5 mm² |
| Conductor cross-section, rigid , min.: | 0.14 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 4 (4x GND), 2 x 1.5 mm², 2 x 2.5 mm² |
| Screwdriver blade: | 0.6 x 3.5 |
| Certificate no. (cULus): | E258476 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
| Type: | AMG XMD |
| Order No.: | 2122940000 |
| Version: | Potential distributor |
| GTIN (EAN): | 4050118425406 |
| Qty.: | 10 pc(s). |
| Width: | 6.1 mm |
| Width (inches): | 0.24 inch |
| Height: | 125 mm |
| Height (inches): | 4.921 inch |
| Depth: | 96.5 mm |
| Depth (inches): | 3.799 inch |
| Net weight: | 27.5 g |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...55 °C |
| Storage temperature: | -40 °C...85 °C |
| MTTF: | 50,000 Years |
| REACH SVHC: | Lead 7439-92-1 |
| Connection system: | PUSH IN |
| Conformal coating: | No |
| Current load per contact point: | 12 A |
| Operating temperature: | -25 °C...55 °C |
| Protection degree: | IP20 |
| Total current load per potential: | 24 A |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 26 |
| Conductor cross-section, flexible , max.: | 2.5 mm² |
| Conductor cross-section, flexible , min.: | 0.14 mm² |
| Conductor cross-section, rigid , max.: | 2.5 mm² |
| Conductor cross-section, rigid , min.: | 0.14 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 4 (4x GND), 2 x 1.5 mm², 2 x 2.5 mm² |
| Screwdriver blade: | 0.6 x 3.5 |
| Certificate no. (cULus): | E258476 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,034 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
