Produkt
Weidmueller
1936710000
DP WGK 25 GY BX
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

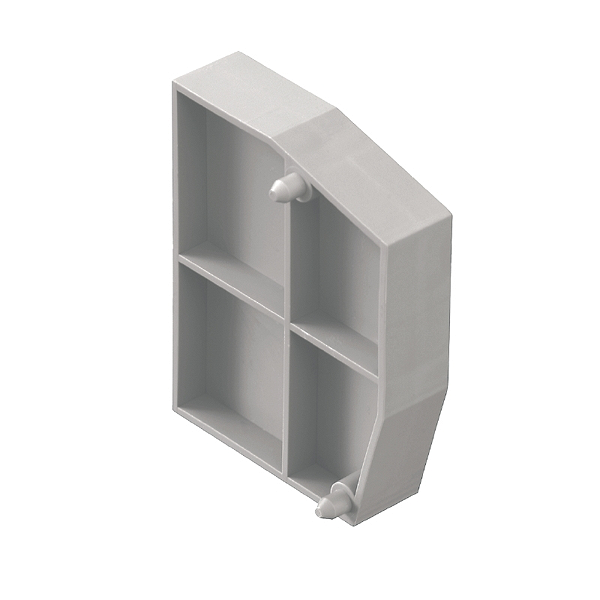

Weidmueller 1936710000
DP WGK 25 GY BX
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | DP WGK 25 GY BX |
| Order No.: | 1936710000 |
| Version: | OMNIMATE Power - series WGK, Feed-through terminal |
| GTIN (EAN): | 4032248664788 |
| Qty.: | 50 pc(s). |
| Product data: | UL: |
| Length: | 38.5 mm |
| Length (inches): | 1.516 inch |
| Width: | 10.9 mm |
| Width (inches): | 0.429 inch |
| Height: | 48.5 mm |
| Height (inches): | 1.909 inch |
| Net weight: | 6.78 g |
| Product family: | OMNIMATE Power - series WGK |
| Insulating material: | Wemid (PA) |
| Colour: | grey |
| Colour chart (similar): | RAL 7035 |
| UL 94 flammability rating: | V-0 |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 120 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 120 °C |
| Reference text: | Length of ferrules is to be chosen depending on the product and the rated voltage., The outside diameter of the plastic collar should not be larger than the pitch (P) |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| VPE length: | 45 mm |
| VPE width: | 150 mm |
| VPE height: | 170 mm |
| ETIM 6.0: | EC000886 |
| ETIM 7.0: | EC000886 |
| eClass 9.0: | 27-14-11-33 |
| eClass 9.1: | 27-14-11-33 |
| eClass 10.0: | 27-14-11-33 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | DP WGK 25 GY BX |
| Order No.: | 1936710000 |
| Version: | OMNIMATE Power - series WGK, Feed-through terminal |
| GTIN (EAN): | 4032248664788 |
| Qty.: | 50 pc(s). |
| Product data: | UL: |
| Length: | 38.5 mm |
| Length (inches): | 1.516 inch |
| Width: | 10.9 mm |
| Width (inches): | 0.429 inch |
| Height: | 48.5 mm |
| Height (inches): | 1.909 inch |
| Net weight: | 6.78 g |
| Product family: | OMNIMATE Power - series WGK |
| Insulating material: | Wemid (PA) |
| Colour: | grey |
| Colour chart (similar): | RAL 7035 |
| UL 94 flammability rating: | V-0 |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 120 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 120 °C |
| Reference text: | Length of ferrules is to be chosen depending on the product and the rated voltage., The outside diameter of the plastic collar should not be larger than the pitch (P) |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| VPE length: | 45 mm |
| VPE width: | 150 mm |
| VPE height: | 170 mm |
| ETIM 6.0: | EC000886 |
| ETIM 7.0: | EC000886 |
| eClass 9.0: | 27-14-11-33 |
| eClass 9.1: | 27-14-11-33 |
| eClass 10.0: | 27-14-11-33 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,007 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
