Produkt
Weidmueller
1827080000
ZTA ZT2.5
Poproś o ofertę

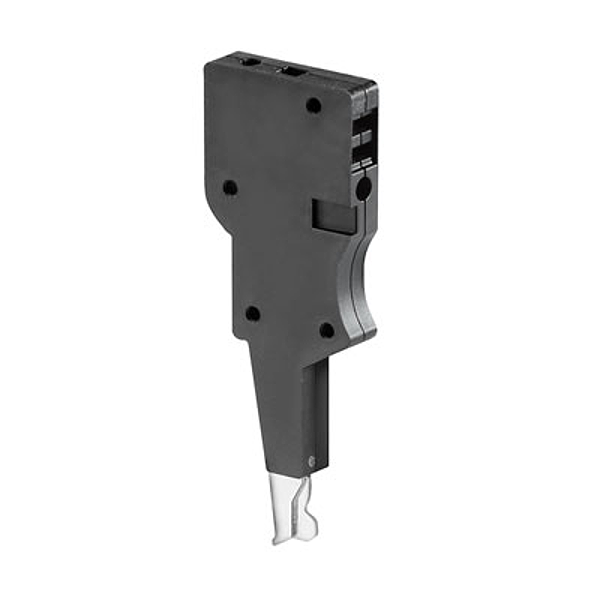

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1827080000
ZTA ZT2.5
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Available until: | 2021-01-01 |
| Type: | ZTA ZT2.5 |
| Order No.: | 1827080000 |
| Version: | Accessories, Test adapter, 17.5 A |
| GTIN (EAN): | 4032248411276 |
| Qty.: | 25 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 20 mm |
| Height (inches): | 0.787 inch |
| Depth: | 50.5 mm |
| Depth (inches): | 1.988 inch |
| Net weight: | 5.52 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Version: | For the terminals |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Installation advice: | Direct mounting |
| With snap-in pegs: | No |
| Clamping range, max.: | 1 mm² |
| Clamping range, min.: | 0.5 mm² |
| Number of connections: | 1 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 0.3 Nm |
| Tightening torque, min.: | 0.3 Nm |
| Type of connection: | Plug-in connection |
| Wire connection cross section, finely stranded, max.: | 1 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 1 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Height with TS 35: | 50.5 mm |
| Rated cross-section: | 1 mm² |
| Rated voltage: | 250 V |
| Rated current: | 17.5 A |
| Volume resistance according to IEC 60947-7-x: | 2.37 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.43 W |
| ETIM 6.0: | EC002555 |
| ETIM 7.0: | EC002555 |
| eClass 9.0: | 27-14-11-48 |
| eClass 9.1: | 27-14-11-48 |
| eClass 10.0: | 27-14-11-48 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Available until: | 2021-01-01 |
| Type: | ZTA ZT2.5 |
| Order No.: | 1827080000 |
| Version: | Accessories, Test adapter, 17.5 A |
| GTIN (EAN): | 4032248411276 |
| Qty.: | 25 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 20 mm |
| Height (inches): | 0.787 inch |
| Depth: | 50.5 mm |
| Depth (inches): | 1.988 inch |
| Net weight: | 5.52 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Version: | For the terminals |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Installation advice: | Direct mounting |
| With snap-in pegs: | No |
| Clamping range, max.: | 1 mm² |
| Clamping range, min.: | 0.5 mm² |
| Number of connections: | 1 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 0.3 Nm |
| Tightening torque, min.: | 0.3 Nm |
| Type of connection: | Plug-in connection |
| Wire connection cross section, finely stranded, max.: | 1 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 1 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Height with TS 35: | 50.5 mm |
| Rated cross-section: | 1 mm² |
| Rated voltage: | 250 V |
| Rated current: | 17.5 A |
| Volume resistance according to IEC 60947-7-x: | 2.37 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.43 W |
| ETIM 6.0: | EC002555 |
| ETIM 7.0: | EC002555 |
| eClass 9.0: | 27-14-11-48 |
| eClass 9.1: | 27-14-11-48 |
| eClass 10.0: | 27-14-11-48 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,006 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
