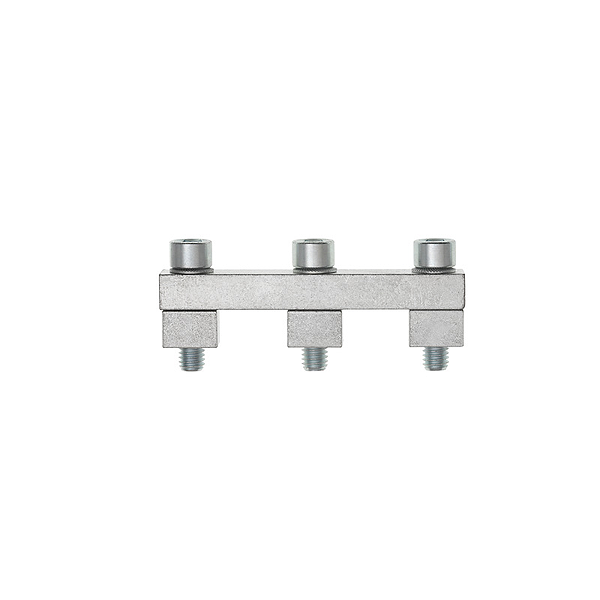

Weidmueller 1826900000
WQV 95N/120N/3
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WQV 95N/120N/3 |
| Order No.: | 1826900000 |
| Version: | W-Series, Cross-connector, For the terminals, Number of poles: 3 |
| GTIN (EAN): | 4032248329953 |
| Qty.: | 5 pc(s). |
| Width: | 9.5 mm |
| Width (inches): | 0.374 inch |
| Height: | 64 mm |
| Height (inches): | 2.52 inch |
| Depth: | 29 mm |
| Depth (inches): | 1.142 inch |
| Net weight: | 77.8 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Material: | tinned copper |
| Colour: | Silver grey |
| Version: | For the terminals |
| Installation advice: | Direct mounting |
| Type of fixing: | when screwed in |
| Number of cross-connected terminals: | 3 |
| Rated current, multi-pole: | 269 A |
| Tightening torque range for fixing screw: | 3.0...6.0 Nm |
| Type: | Cross-connector |
| Pitch in mm (P): | 27 mm |
| Rated current: | 269 A |
| ETIM 6.0: | EC000489 |
| ETIM 7.0: | EC000489 |
| eClass 9.0: | 27-14-11-40 |
| eClass 9.1: | 27-14-11-40 |
| eClass 10.0: | 27-14-11-40 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | WQV 95N/120N/3 |
| Order No.: | 1826900000 |
| Version: | W-Series, Cross-connector, For the terminals, Number of poles: 3 |
| GTIN (EAN): | 4032248329953 |
| Qty.: | 5 pc(s). |
| Width: | 9.5 mm |
| Width (inches): | 0.374 inch |
| Height: | 64 mm |
| Height (inches): | 2.52 inch |
| Depth: | 29 mm |
| Depth (inches): | 1.142 inch |
| Net weight: | 77.8 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Material: | tinned copper |
| Colour: | Silver grey |
| Version: | For the terminals |
| Installation advice: | Direct mounting |
| Type of fixing: | when screwed in |
| Number of cross-connected terminals: | 3 |
| Rated current, multi-pole: | 269 A |
| Tightening torque range for fixing screw: | 3.0...6.0 Nm |
| Type: | Cross-connector |
| Pitch in mm (P): | 27 mm |
| Rated current: | 269 A |
| ETIM 6.0: | EC000489 |
| ETIM 7.0: | EC000489 |
| eClass 9.0: | 27-14-11-40 |
| eClass 9.1: | 27-14-11-40 |
| eClass 10.0: | 27-14-11-40 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,078 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
