Produkt
Weidmueller
1802810000
WZAD 240
Poproś o ofertę

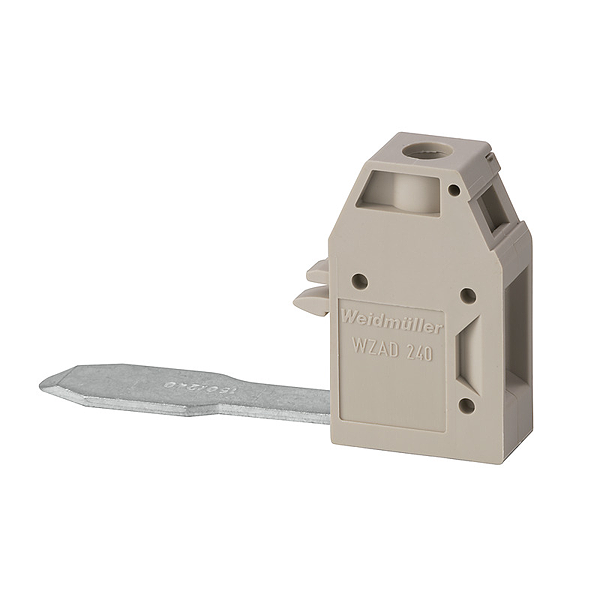

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1802810000
WZAD 240
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WZAD 240 |
| Order No.: | 1802810000 |
| Version: | W-Series, Additional connection |
| GTIN (EAN): | 4032248313754 |
| Qty.: | 5 pc(s). |
| Width: | 10.15 mm |
| Width (inches): | 0.4 inch |
| Height: | 58.6 mm |
| Height (inches): | 2.307 inch |
| Depth: | 34.7 mm |
| Depth (inches): | 1.366 inch |
| Net weight: | 17.6 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Additional connection |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Explosion-tested version: | No |
| Installation advice: | Feed-through (bushing), Direct mounting |
| Type of fixing: | Snap-on |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping screw: | M 4 |
| Connection cross-section, finely stranded, max.: | 10 mm² |
| Connection cross-section, finely stranded, min.: | 0.5 mm² |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | on side |
| Number of connections: | 1 |
| Stripping length: | 11 mm |
| Tightening torque, max.: | 1.8 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Twin wire-end ferrules, max.: | 6 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 20 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Pitch in mm (P): | 10 mm |
| Rated cross-section: | 10 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 57 A |
| Volume resistance according to IEC 60947-7-x: | 0.56 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.82 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | WZAD 240 |
| Order No.: | 1802810000 |
| Version: | W-Series, Additional connection |
| GTIN (EAN): | 4032248313754 |
| Qty.: | 5 pc(s). |
| Width: | 10.15 mm |
| Width (inches): | 0.4 inch |
| Height: | 58.6 mm |
| Height (inches): | 2.307 inch |
| Depth: | 34.7 mm |
| Depth (inches): | 1.366 inch |
| Net weight: | 17.6 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Additional connection |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Explosion-tested version: | No |
| Installation advice: | Feed-through (bushing), Direct mounting |
| Type of fixing: | Snap-on |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping screw: | M 4 |
| Connection cross-section, finely stranded, max.: | 10 mm² |
| Connection cross-section, finely stranded, min.: | 0.5 mm² |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | on side |
| Number of connections: | 1 |
| Stripping length: | 11 mm |
| Tightening torque, max.: | 1.8 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Twin wire-end ferrules, max.: | 6 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 20 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Pitch in mm (P): | 10 mm |
| Rated cross-section: | 10 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 57 A |
| Volume resistance according to IEC 60947-7-x: | 0.56 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.82 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,018 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
