Produkt
Weidmueller
1802780000
WDU 240
Poproś o ofertę

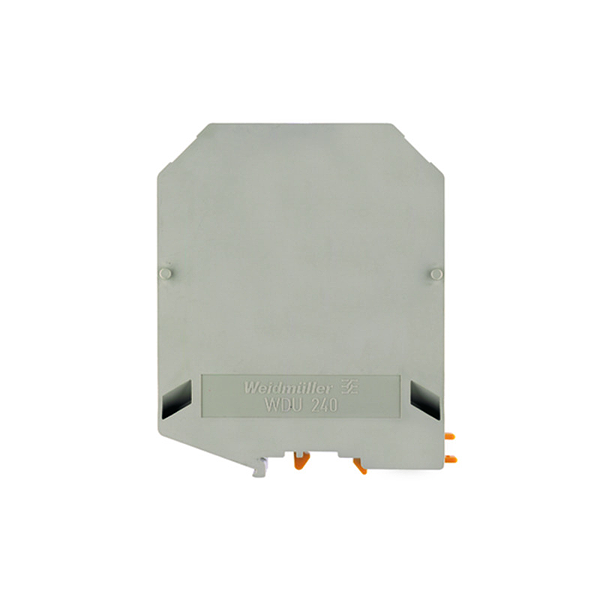

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1802780000
WDU 240
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WDU 240 |
| Order No.: | 1802780000 |
| Version: | Feed-through terminal, Screw connection, 240 mm², 1000 V, 415 A, dark beige |
| GTIN (EAN): | 4032248313723 |
| Qty.: | 2 pc(s). |
| Width: | 36 mm |
| Width (inches): | 1.417 inch |
| Height: | 100 mm |
| Height (inches): | 3.937 inch |
| Depth: | 123.7 mm |
| Depth (inches): | 4.87 inch |
| Depth including DIN rail: | 124 mm |
| Net weight: | 472.5 g |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 120 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | KEMA01ATEX2186U |
| Max. voltage (ATEX): | 1100 V |
| Current (ATEX): | 350 A |
| Wire cross section max. (ATEX): | 240 mm² |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | Screw connection, for screwable cross-connection, in closed state |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32, TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | Yes |
| Cross-section for connected wire, stranded, two clampable wires, min.: | 35 mm² |
| Cross-section for connected wire, stranded, two clampable wires, max.: | 95 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min.: | 50 mm² |
| Wire cross-section, finely stranded, two clampable wires, max.: | 95 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: | 35 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: | 50 mm² |
| Explosion-tested version: | Yes |
| Number of similar terminals: | 1 |
| Open sides: | closed |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 213329 |
| Current size C (CSA): | 400 A |
| Voltage size C (CSA): | 600 V |
| Wire cross section max. (CSA): | 500 kcmil |
| Wire cross section min. (CSA): | 0 AWG |
| Blade size: | S8 (DIN 6911) |
| Clamping range, max.: | 240 mm² |
| Clamping range, min.: | 70 mm² |
| Clamping screw: | M 10 |
| Connection cross-section, stranded, max.: | 240 mm² |
| Connection cross-section, stranded, min.: | 70 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | B15 |
| Number of connections: | 2 |
| Stripping length: | 40 mm |
| Tightening torque, max.: | 30 Nm |
| Tightening torque, min.: | 25 Nm |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 240 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 185 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 70 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 185 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 70 mm² |
| Wire connection cross-section, finely stranded, min.: | 70 mm² |
| Rated cross-section: | 240 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 415 A |
| Current at maximum wires: | 415 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.08 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 13.28 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E175455 |
| Current size C (UR): | 380 A |
| Voltage size C (UR): | 600 V |
| Wire cross section max. (UR): | 500 kcmil |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | WDU 240 |
| Order No.: | 1802780000 |
| Version: | Feed-through terminal, Screw connection, 240 mm², 1000 V, 415 A, dark beige |
| GTIN (EAN): | 4032248313723 |
| Qty.: | 2 pc(s). |
| Width: | 36 mm |
| Width (inches): | 1.417 inch |
| Height: | 100 mm |
| Height (inches): | 3.937 inch |
| Depth: | 123.7 mm |
| Depth (inches): | 4.87 inch |
| Depth including DIN rail: | 124 mm |
| Net weight: | 472.5 g |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 120 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | KEMA01ATEX2186U |
| Max. voltage (ATEX): | 1100 V |
| Current (ATEX): | 350 A |
| Wire cross section max. (ATEX): | 240 mm² |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | Screw connection, for screwable cross-connection, in closed state |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32, TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | Yes |
| Cross-section for connected wire, stranded, two clampable wires, min.: | 35 mm² |
| Cross-section for connected wire, stranded, two clampable wires, max.: | 95 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min.: | 50 mm² |
| Wire cross-section, finely stranded, two clampable wires, max.: | 95 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: | 35 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: | 50 mm² |
| Explosion-tested version: | Yes |
| Number of similar terminals: | 1 |
| Open sides: | closed |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 213329 |
| Current size C (CSA): | 400 A |
| Voltage size C (CSA): | 600 V |
| Wire cross section max. (CSA): | 500 kcmil |
| Wire cross section min. (CSA): | 0 AWG |
| Blade size: | S8 (DIN 6911) |
| Clamping range, max.: | 240 mm² |
| Clamping range, min.: | 70 mm² |
| Clamping screw: | M 10 |
| Connection cross-section, stranded, max.: | 240 mm² |
| Connection cross-section, stranded, min.: | 70 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | B15 |
| Number of connections: | 2 |
| Stripping length: | 40 mm |
| Tightening torque, max.: | 30 Nm |
| Tightening torque, min.: | 25 Nm |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 240 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 185 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 70 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 185 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 70 mm² |
| Wire connection cross-section, finely stranded, min.: | 70 mm² |
| Rated cross-section: | 240 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 415 A |
| Current at maximum wires: | 415 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.08 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 13.28 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E175455 |
| Current size C (UR): | 380 A |
| Voltage size C (UR): | 600 V |
| Wire cross section max. (UR): | 500 kcmil |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,50 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
