Produkt
Weidmueller
1789790000
WF 10/2BZ
Poproś o ofertę

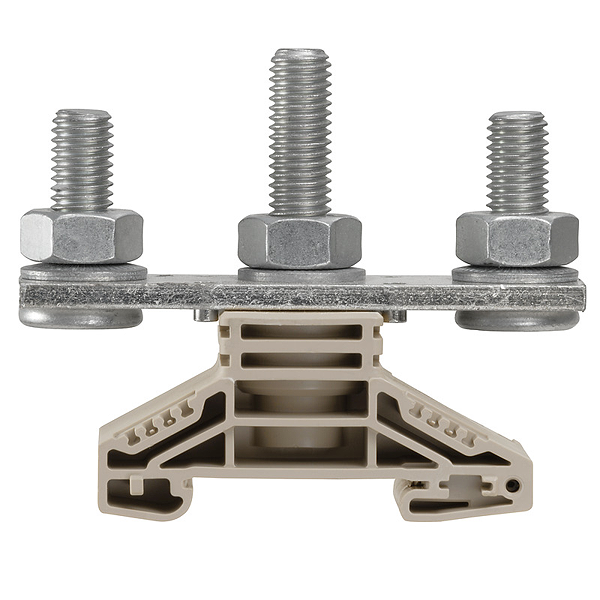

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1789790000
WF 10/2BZ
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WF 10/2BZ |
| Order No.: | 1789790000 |
| Version: | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection |
| GTIN (EAN): | 4032248251162 |
| Qty.: | 10 pc(s). |
| Width: | 33.8 mm |
| Width (inches): | 1.331 inch |
| Height: | 87.6 mm |
| Height (inches): | 3.449 inch |
| Depth: | 72.5 mm |
| Depth (inches): | 2.854 inch |
| Net weight: | 221.75 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Number of levels: | 1 |
| Number of clamping points per level: | 3 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| Explosion-tested version: | No |
| Open sides: | Open |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1244019 |
| Current size C (CSA): | 230 A |
| Voltage size C (CSA): | 1000 V |
| 2 x cable lugs DIN 46 234: | 6 to 120 mm² |
| 2 x cable lugs DIN 46 235: | 10...95 mm² |
| Cable lug to DIN 46234: | 6...120 mm² |
| Cable lug to DIN 46235: | 10...95 mm² |
| Clamping range, max.: | 120 mm² |
| Clamping range, min.: | 6 mm² |
| Number of connections: | 3 |
| Stud size for spade connection: | M 10 |
| Tightening torque, max.: | 20 Nm |
| Tightening torque, min.: | 10 Nm |
| Type of connection: | Threaded stud connection |
| Rated cross-section: | 120 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 269 A |
| Current at maximum wires: | 269 A |
| Volume resistance according to IEC 60947-7-x: | 0.12 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 8.61 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| 2 x cable lugs DIN 46 234: | 6 to 120 mm² |
| 2 x cable lugs DIN 46 235: | 10...95 mm² |
| Cable lug to DIN 46234: | 6...120 mm² |
| Cable lug to DIN 46235: | 10...95 mm² |
| Stud size for spade connection: | M 10 |
| Tightening torque, max.: | 20 Nm |
| Tightening torque, min.: | 10 Nm |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 0000 AWG |
| Conductor size Factory wiring min. (cURus): | 0000 AWG |
| Current size C (cURus): | 230 A |
| Voltage size C (cURus): | 1000 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | WF 10/2BZ |
| Order No.: | 1789790000 |
| Version: | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection |
| GTIN (EAN): | 4032248251162 |
| Qty.: | 10 pc(s). |
| Width: | 33.8 mm |
| Width (inches): | 1.331 inch |
| Height: | 87.6 mm |
| Height (inches): | 3.449 inch |
| Depth: | 72.5 mm |
| Depth (inches): | 2.854 inch |
| Net weight: | 221.75 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Number of levels: | 1 |
| Number of clamping points per level: | 3 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| Explosion-tested version: | No |
| Open sides: | Open |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1244019 |
| Current size C (CSA): | 230 A |
| Voltage size C (CSA): | 1000 V |
| 2 x cable lugs DIN 46 234: | 6 to 120 mm² |
| 2 x cable lugs DIN 46 235: | 10...95 mm² |
| Cable lug to DIN 46234: | 6...120 mm² |
| Cable lug to DIN 46235: | 10...95 mm² |
| Clamping range, max.: | 120 mm² |
| Clamping range, min.: | 6 mm² |
| Number of connections: | 3 |
| Stud size for spade connection: | M 10 |
| Tightening torque, max.: | 20 Nm |
| Tightening torque, min.: | 10 Nm |
| Type of connection: | Threaded stud connection |
| Rated cross-section: | 120 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 269 A |
| Current at maximum wires: | 269 A |
| Volume resistance according to IEC 60947-7-x: | 0.12 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 8.61 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| 2 x cable lugs DIN 46 234: | 6 to 120 mm² |
| 2 x cable lugs DIN 46 235: | 10...95 mm² |
| Cable lug to DIN 46234: | 6...120 mm² |
| Cable lug to DIN 46235: | 10...95 mm² |
| Stud size for spade connection: | M 10 |
| Tightening torque, max.: | 20 Nm |
| Tightening torque, min.: | 10 Nm |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 0000 AWG |
| Conductor size Factory wiring min. (cURus): | 0000 AWG |
| Current size C (cURus): | 230 A |
| Voltage size C (cURus): | 1000 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,237 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
