Produkt
Weidmueller
1780890000
WTW WF10/WF12
Poproś o ofertę

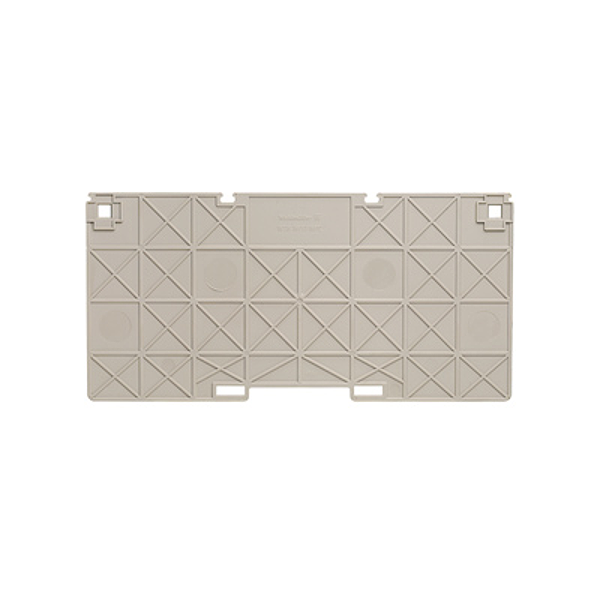

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1780890000
WTW WF10/WF12
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WTW WF10/WF12 |
| Order No.: | 1780890000 |
| Version: | Bolt-type screw terminals, Seperation plate, dark beige, 3 mm |
| GTIN (EAN): | 4032248219391 |
| Qty.: | 20 pc(s). |
| Width: | 3 mm |
| Width (inches): | 0.118 inch |
| Height: | 155.8 mm |
| Height (inches): | 6.134 inch |
| Depth: | 76.45 mm |
| Depth (inches): | 3.01 inch |
| Mounting dimension - width: | 2 mm |
| Net weight: | 19.075 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | End and intermediate plate |
| Installation advice: | Direct mounting |
| Snap-on: | No |
| Certificate No. (cURus): | E60693 |
| ETIM 6.0: | EC000886 |
| ETIM 7.0: | EC000886 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-33 |
| eClass 10.0: | 27-14-11-92 |
| UNSPSC: | 30-21-18-27 |
| ROHS: | Conform |
| Type: | WTW WF10/WF12 |
| Order No.: | 1780890000 |
| Version: | Bolt-type screw terminals, Seperation plate, dark beige, 3 mm |
| GTIN (EAN): | 4032248219391 |
| Qty.: | 20 pc(s). |
| Width: | 3 mm |
| Width (inches): | 0.118 inch |
| Height: | 155.8 mm |
| Height (inches): | 6.134 inch |
| Depth: | 76.45 mm |
| Depth (inches): | 3.01 inch |
| Mounting dimension - width: | 2 mm |
| Net weight: | 19.075 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | End and intermediate plate |
| Installation advice: | Direct mounting |
| Snap-on: | No |
| Certificate No. (cURus): | E60693 |
| ETIM 6.0: | EC000886 |
| ETIM 7.0: | EC000886 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-33 |
| eClass 10.0: | 27-14-11-92 |
| UNSPSC: | 30-21-18-27 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,019 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
