Produkt
Weidmueller
1773640000
HDC-C-HD-B-LWL1.0POF
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

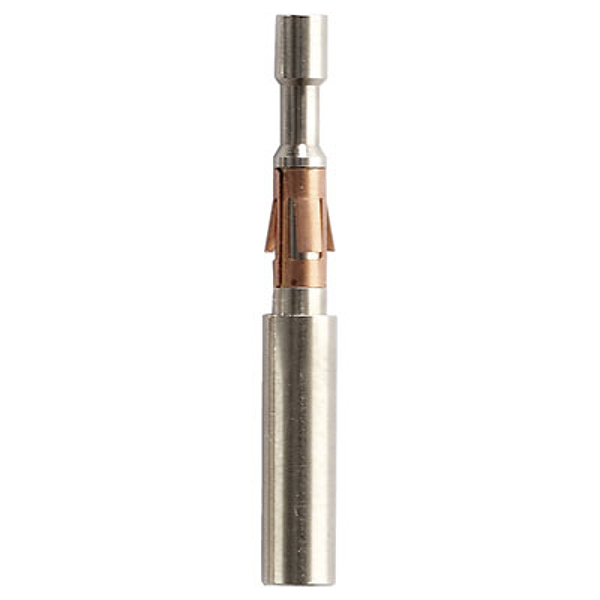

Weidmueller 1773640000
HDC-C-HD-B-LWL1.0POF
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | HDC-C-HD-B-LWL1.0POF |
| Order No.: | 1773640000 |
| Version: | Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Female, Conductor cross-section, max.: 1, turned, Copper alloy |
| GTIN (EAN): | 4032248142743 |
| Qty.: | 10 pc(s). |
| Net weight: | 1 g |
| Diameter: | 3.5 mm |
| REACH SVHC: | Lead 7439-92-1 |
| Contact diameter, male Ø: | 1.6 mm |
| Cross-section for connected wire: | 1 mm² |
| Material: | Copper alloy |
| Production methods: | turned |
| Stripping length, rated connection: | 14 mm |
| Surface finish: | silver |
| Type: | Female |
| Type of connection: | Crimp connection |
| Version insert: | HD, HDD, HQ, MixMate |
| ETIM 6.0: | EC000796 |
| ETIM 7.0: | EC000796 |
| eClass 9.0: | 27-44-02-04 |
| eClass 9.1: | 27-44-02-04 |
| eClass 10.0: | 27-44-02-04 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | HDC-C-HD-B-LWL1.0POF |
| Order No.: | 1773640000 |
| Version: | Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Female, Conductor cross-section, max.: 1, turned, Copper alloy |
| GTIN (EAN): | 4032248142743 |
| Qty.: | 10 pc(s). |
| Net weight: | 1 g |
| Diameter: | 3.5 mm |
| REACH SVHC: | Lead 7439-92-1 |
| Contact diameter, male Ø: | 1.6 mm |
| Cross-section for connected wire: | 1 mm² |
| Material: | Copper alloy |
| Production methods: | turned |
| Stripping length, rated connection: | 14 mm |
| Surface finish: | silver |
| Type: | Female |
| Type of connection: | Crimp connection |
| Version insert: | HD, HDD, HQ, MixMate |
| ETIM 6.0: | EC000796 |
| ETIM 7.0: | EC000796 |
| eClass 9.0: | 27-44-02-04 |
| eClass 9.1: | 27-44-02-04 |
| eClass 10.0: | 27-44-02-04 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,001 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
