Produkt
Weidmueller
1764550000
ZBS1 F.D SET
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

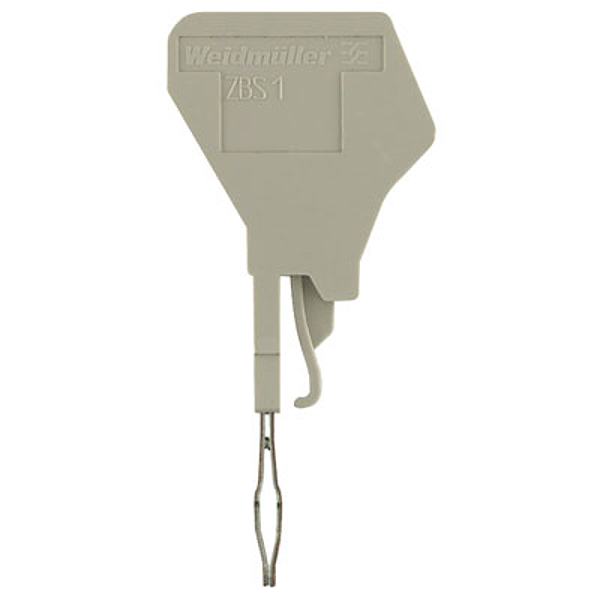

Weidmueller 1764550000
ZBS1 F.D SET
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Available until: | 2021-01-01 |
| Type: | ZBS1 F.D SET |
| Order No.: | 1764550000 |
| Version: | Accessories, Component plug, 6 A |
| GTIN (EAN): | 4032248113644 |
| Qty.: | 10 pc(s). |
| Width: | 10 mm |
| Width (inches): | 0.394 inch |
| Height: | 22.3 mm |
| Height (inches): | 0.878 inch |
| Depth: | 48 mm |
| Depth (inches): | 1.89 inch |
| Net weight: | 3.9 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Plug |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of fixing: | Plugged |
| Type of connection: | Miscellaneous |
| Pitch in mm (P): | 10 mm |
| Rated voltage: | 250 V |
| Rated current: | 6 A |
| Rated impulse withstand voltage: | 4 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC002018 |
| ETIM 7.0: | EC002018 |
| eClass 9.0: | 27-14-11-49 |
| eClass 9.1: | 27-14-11-49 |
| eClass 10.0: | 27-14-11-49 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Available until: | 2021-01-01 |
| Type: | ZBS1 F.D SET |
| Order No.: | 1764550000 |
| Version: | Accessories, Component plug, 6 A |
| GTIN (EAN): | 4032248113644 |
| Qty.: | 10 pc(s). |
| Width: | 10 mm |
| Width (inches): | 0.394 inch |
| Height: | 22.3 mm |
| Height (inches): | 0.878 inch |
| Depth: | 48 mm |
| Depth (inches): | 1.89 inch |
| Net weight: | 3.9 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Plug |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of fixing: | Plugged |
| Type of connection: | Miscellaneous |
| Pitch in mm (P): | 10 mm |
| Rated voltage: | 250 V |
| Rated current: | 6 A |
| Rated impulse withstand voltage: | 4 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC002018 |
| ETIM 7.0: | EC002018 |
| eClass 9.0: | 27-14-11-49 |
| eClass 9.1: | 27-14-11-49 |
| eClass 10.0: | 27-14-11-49 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,004 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
