Produkt
Weidmueller
1764150000
CLI T 02-20
Poproś o ofertę

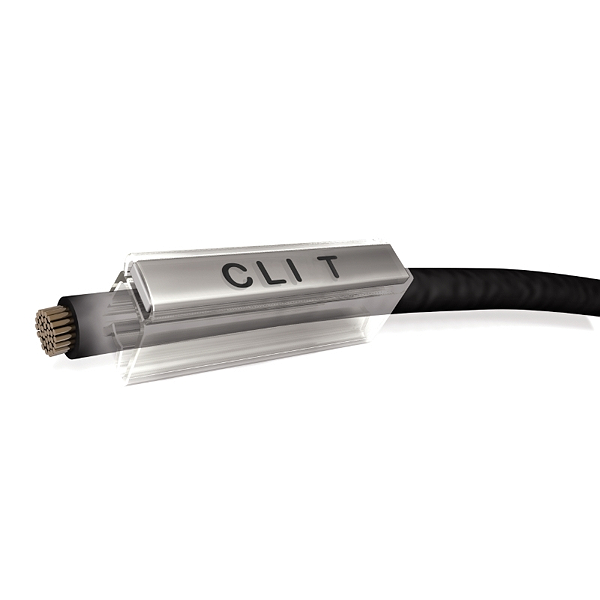

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1764150000
CLI T 02-20
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | CLI T 02-20 |
| Order No.: | 1764150000 |
| Version: | CableLine, Socket x 5 mm, PVC, Colour: Transparent, Conductor O.D.: 1.3 - 3 mm |
| GTIN (EAN): | 4032248052868 |
| Qty.: | 200 pc(s). |
| Width: | 5 mm |
| Width (inches): | 0.197 inch |
| Height: | 20 mm |
| Height (inches): | 0.787 inch |
| Depth: | 6 mm |
| Depth (inches): | 0.236 inch |
| Net weight: | 0.221 g |
| Colour: | Transparent |
| Halogen: | Yes |
| Material: | PVC |
| Operating temperature range: | -30...80 °C |
| Recommended industries: | Transportation, Machinery |
| Type of printing: | neutral |
| Width: | 5 mm |
| Conductor O.D.: | 1.3 - 3 mm |
| Conductor O.D., max.: | 3 mm |
| Conductor O.D., min.: | 1.3 mm |
| Conductor cross-section, max.: | 1.5 mm² |
| Conductor cross-section, min.: | 0.22 mm² |
| Halogen: | Yes |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 44-12-17-08 |
| ROHS: | Conform |
| Type: | CLI T 02-20 |
| Order No.: | 1764150000 |
| Version: | CableLine, Socket x 5 mm, PVC, Colour: Transparent, Conductor O.D.: 1.3 - 3 mm |
| GTIN (EAN): | 4032248052868 |
| Qty.: | 200 pc(s). |
| Width: | 5 mm |
| Width (inches): | 0.197 inch |
| Height: | 20 mm |
| Height (inches): | 0.787 inch |
| Depth: | 6 mm |
| Depth (inches): | 0.236 inch |
| Net weight: | 0.221 g |
| Colour: | Transparent |
| Halogen: | Yes |
| Material: | PVC |
| Operating temperature range: | -30...80 °C |
| Recommended industries: | Transportation, Machinery |
| Type of printing: | neutral |
| Width: | 5 mm |
| Conductor O.D.: | 1.3 - 3 mm |
| Conductor O.D., max.: | 3 mm |
| Conductor O.D., min.: | 1.3 mm |
| Conductor cross-section, max.: | 1.5 mm² |
| Conductor cross-section, min.: | 0.22 mm² |
| Halogen: | Yes |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 44-12-17-08 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
