Produkt
Weidmueller
1749151001
KLBUE CO 3
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

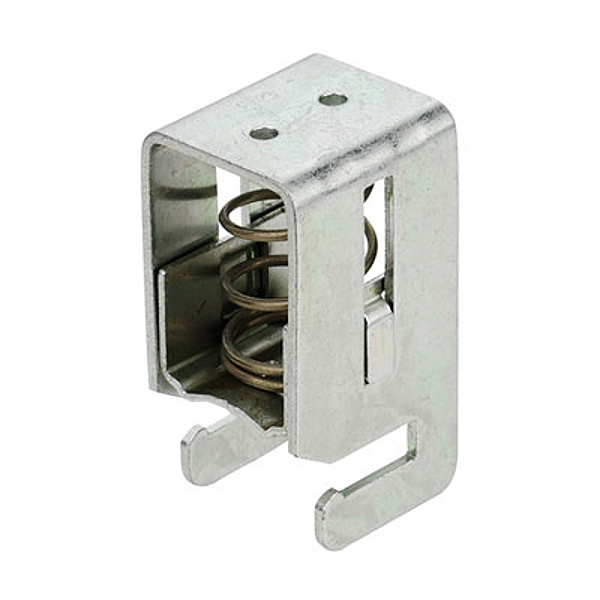

Weidmueller 1749151001
KLBUE CO 3
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | KLBUE CO 3 |
| Order No.: | 1749151001 |
| Version: | Clamping yoke, Clamping yoke, Steel |
| GTIN (EAN): | 4032248064441 |
| Qty.: | 10 pc(s). |
| Width: | 24 mm |
| Width (inches): | 0.945 inch |
| Height: | 25 mm |
| Height (inches): | 0.984 inch |
| Depth: | 45 mm |
| Depth (inches): | 1.772 inch |
| Mounting dimension - width: | 23 mm |
| Net weight: | 36.2 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Material: | Steel |
| Colour: | silver |
| Version: | For a shield connection |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting, Busbar |
| Type of fixing: | Snap-on |
| Cable diameter, max.: | 20 mm |
| Cable diameter, min.: | 10 mm |
| Pitch in mm (P): | 25 mm |
| ETIM 6.0: | EC002020 |
| ETIM 7.0: | EC002020 |
| eClass 9.0: | 27-14-11-50 |
| eClass 9.1: | 27-14-11-50 |
| eClass 10.0: | 27-14-11-50 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | KLBUE CO 3 |
| Order No.: | 1749151001 |
| Version: | Clamping yoke, Clamping yoke, Steel |
| GTIN (EAN): | 4032248064441 |
| Qty.: | 10 pc(s). |
| Width: | 24 mm |
| Width (inches): | 0.945 inch |
| Height: | 25 mm |
| Height (inches): | 0.984 inch |
| Depth: | 45 mm |
| Depth (inches): | 1.772 inch |
| Mounting dimension - width: | 23 mm |
| Net weight: | 36.2 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Material: | Steel |
| Colour: | silver |
| Version: | For a shield connection |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting, Busbar |
| Type of fixing: | Snap-on |
| Cable diameter, max.: | 20 mm |
| Cable diameter, min.: | 10 mm |
| Pitch in mm (P): | 25 mm |
| ETIM 6.0: | EC002020 |
| ETIM 7.0: | EC002020 |
| eClass 9.0: | 27-14-11-50 |
| eClass 9.1: | 27-14-11-50 |
| eClass 10.0: | 27-14-11-50 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,038 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
