Produkt
Weidmueller
1743180000
ZDL 2.5/TR/DU/PE
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

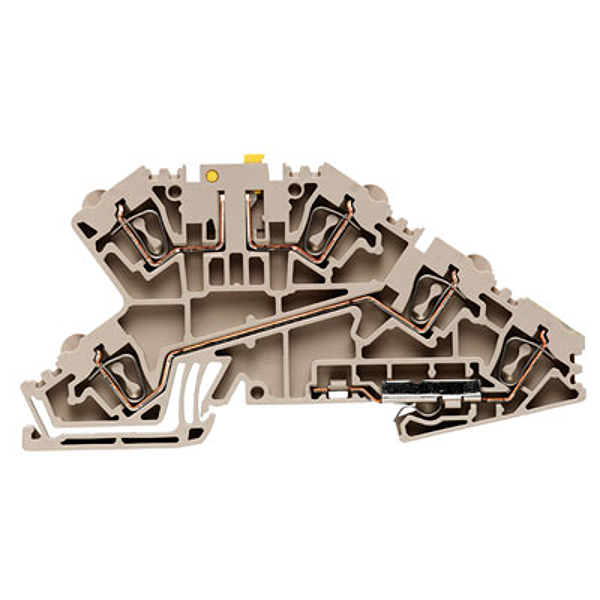

Weidmueller 1743180000
ZDL 2.5/TR/DU/PE
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | ZDL 2.5/TR/DU/PE |
| Order No.: | 1743180000 |
| Version: | Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 400 V, 20 A, Pivoting, dark beige |
| GTIN (EAN): | 4008190978846 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 95 mm |
| Height (inches): | 3.74 inch |
| Depth: | 49.5 mm |
| Depth (inches): | 1.949 inch |
| Net weight: | 14.8 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Tension-clamp connection, Spacer, With PE connection, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 3 |
| Number of levels: | 3 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | Yes |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | Yes |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Mounting plate every 200 mm: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 154685-1142891 |
| Current size D (CSA): | 10 A |
| Voltage size D (CSA): | 300 V |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 2.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.13 mm² |
| Gauge to IEC 60947-1: | A2 |
| Number of connections: | 5 |
| Stripping length: | 8 mm |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Cross-disconnect: | without |
| Slitting: | Pivoting |
| PEN function: | No |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 400 V |
| Rated current: | 20 A |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 4 kV |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 12 AWG |
| Conductor size Factory wiring min. (UR): | 26 AWG |
| Conductor size Field wiring max. (UR): | 12 AWG |
| Conductor size Field wiring min. (UR): | 26 AWG |
| Current size B (UR): | 15 A |
| Current size D (UR): | 10 A |
| Voltage size B (UR): | 300 V |
| Voltage size D (UR): | 300 V |
| ETIM 6.0: | EC000902 |
| ETIM 7.0: | EC000902 |
| eClass 9.0: | 27-14-11-26 |
| eClass 9.1: | 27-14-11-26 |
| eClass 10.0: | 27-14-11-26 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | ZDL 2.5/TR/DU/PE |
| Order No.: | 1743180000 |
| Version: | Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 400 V, 20 A, Pivoting, dark beige |
| GTIN (EAN): | 4008190978846 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 95 mm |
| Height (inches): | 3.74 inch |
| Depth: | 49.5 mm |
| Depth (inches): | 1.949 inch |
| Net weight: | 14.8 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Tension-clamp connection, Spacer, With PE connection, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 3 |
| Number of levels: | 3 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | Yes |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | Yes |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Mounting plate every 200 mm: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 154685-1142891 |
| Current size D (CSA): | 10 A |
| Voltage size D (CSA): | 300 V |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 2.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.13 mm² |
| Gauge to IEC 60947-1: | A2 |
| Number of connections: | 5 |
| Stripping length: | 8 mm |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Cross-disconnect: | without |
| Slitting: | Pivoting |
| PEN function: | No |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 400 V |
| Rated current: | 20 A |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 4 kV |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 12 AWG |
| Conductor size Factory wiring min. (UR): | 26 AWG |
| Conductor size Field wiring max. (UR): | 12 AWG |
| Conductor size Field wiring min. (UR): | 26 AWG |
| Current size B (UR): | 15 A |
| Current size D (UR): | 10 A |
| Voltage size B (UR): | 300 V |
| Voltage size D (UR): | 300 V |
| ETIM 6.0: | EC000902 |
| ETIM 7.0: | EC000902 |
| eClass 9.0: | 27-14-11-26 |
| eClass 9.1: | 27-14-11-26 |
| eClass 10.0: | 27-14-11-26 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,016 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
