Produkt
Weidmueller
1695731687

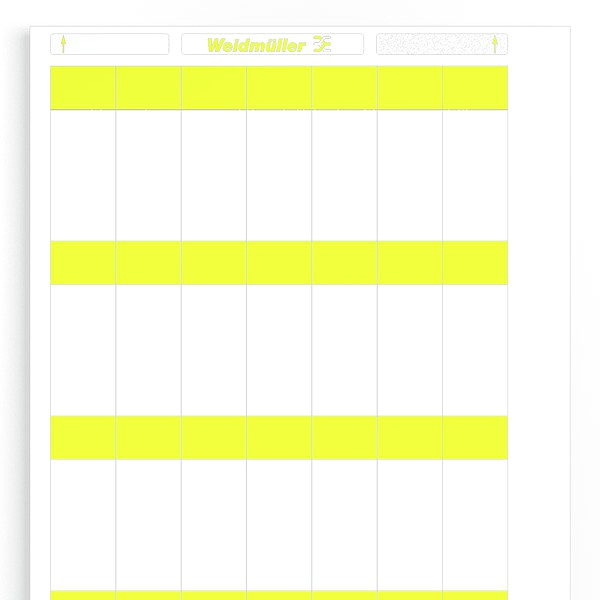

LM WO 25/68 GE
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller
Weidmueller 1695731687
LM WO 25/68 GE
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | LM WO 25/68 GE |
| Order No.: | 1695731687 |
| Version: | LaserMark, Conductor and cable markers, 8.2 - 14.3 mm, 25 x 68 mm, yellow |
| GTIN (EAN): | 4008190924713 |
| Qty.: | 10 pc(s). |
| Width: | 68 mm |
| Width (inches): | 2.677 inch |
| Height: | 25 mm |
| Height (inches): | 0.984 inch |
| Depth: | 0.025 mm |
| Depth (inches): | 0.001 inch |
| Net weight: | 10.2 g |
| Adhesive: | Acrylate |
| Colour: | yellow |
| Halogen: | No |
| Material: | Polyester film |
| Material colour according to resistance code: | 4 |
| Number of markers per packaging unit: | 280 |
| Number per sheet: | 28 |
| Operating temperature range: | -40...150 °C |
| Size of labelling field: | 25 x 17 mm |
| Type of printing: | neutral |
| UL 94 flammability rating: | V-0 |
| Version: | Self-adhesive |
| Width: | 68 mm |
| Conductor O.D.: | 8.2 - 14.3 mm |
| Conductor O.D., max.: | 14.3 mm |
| Conductor O.D., min.: | 8.2 mm |
| Conductor cross-section, max.: | 70 mm² |
| Conductor cross-section, min.: | 16 mm² |
| Halogen: | No |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 44-12-17-08 |
| ROHS: | Conform |
| Type: | LM WO 25/68 GE |
| Order No.: | 1695731687 |
| Version: | LaserMark, Conductor and cable markers, 8.2 - 14.3 mm, 25 x 68 mm, yellow |
| GTIN (EAN): | 4008190924713 |
| Qty.: | 10 pc(s). |
| Width: | 68 mm |
| Width (inches): | 2.677 inch |
| Height: | 25 mm |
| Height (inches): | 0.984 inch |
| Depth: | 0.025 mm |
| Depth (inches): | 0.001 inch |
| Net weight: | 10.2 g |
| Adhesive: | Acrylate |
| Colour: | yellow |
| Halogen: | No |
| Material: | Polyester film |
| Material colour according to resistance code: | 4 |
| Number of markers per packaging unit: | 280 |
| Number per sheet: | 28 |
| Operating temperature range: | -40...150 °C |
| Size of labelling field: | 25 x 17 mm |
| Type of printing: | neutral |
| UL 94 flammability rating: | V-0 |
| Version: | Self-adhesive |
| Width: | 68 mm |
| Conductor O.D.: | 8.2 - 14.3 mm |
| Conductor O.D., max.: | 14.3 mm |
| Conductor O.D., min.: | 8.2 mm |
| Conductor cross-section, max.: | 70 mm² |
| Conductor cross-section, min.: | 16 mm² |
| Halogen: | No |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 44-12-17-08 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,01 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
