Produkt
Weidmueller
1616500000
ZSI 2.5/2/LD 250AC
Poproś o ofertę

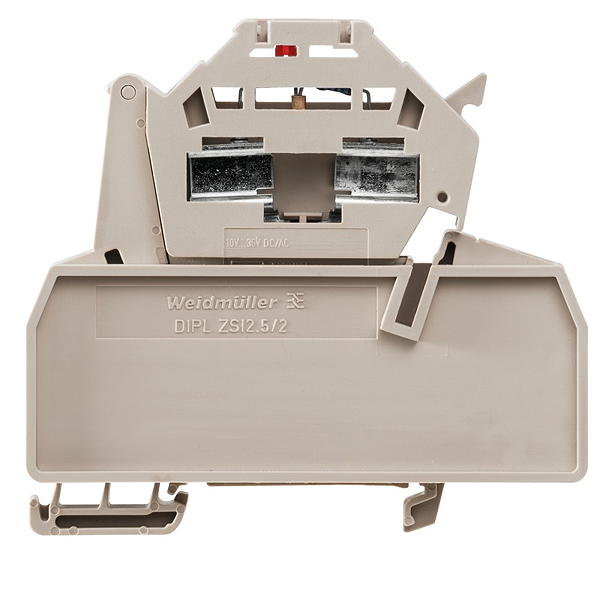

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1616500000
ZSI 2.5/2/LD 250AC
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | ZSI 2.5/2/LD 250AC |
| Order No.: | 1616500000 |
| Version: | Z-series, Fuse terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige, Direct mounting |
| GTIN (EAN): | 4008190196615 |
| Qty.: | 10 pc(s). |
| Width: | 11.9 mm |
| Width (inches): | 0.469 inch |
| Height: | 79.5 mm |
| Height (inches): | 3.13 inch |
| Depth: | 73 mm |
| Depth (inches): | 2.874 inch |
| Depth including DIN rail: | 74 mm |
| Net weight: | 29 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Tension-clamp connection, Fuse cartridge, with LED, for plug-in cross-connector, in closed state |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1152892 |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 2.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.13 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 2 |
| Stripping length: | 10 mm |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Operating voltage for display, max.: | 250 V |
| Operating voltage for display, min.: | 140 V |
| Type of voltage for indicator: | AC/DC |
| Cartridge fuse: | G-Si. 6.3 x 32 |
| Display: | Red LED |
| Fuse holder (cartridge holder): | Pivoting |
| Operating voltage, max.: | 250 V |
| Power loss for overload and short-circuit protection for a composite arrangement: | 2.5 W at 2.5 A @ 29°C |
| Power loss for overload and short-circuit protection for an individual arrangement: | 2.5 W at 2.5 A @ 40°C |
| Power loss for short-circuit protection only for a composite arrangement: | 2.5 W at 2.5 A @ 72°C |
| Power loss for short-circuit protection only for an individual arrangement: | 4.0 W at 10.0 A @ 46°C |
| Type of voltage for indicator: | AC/DC |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 250 V |
| Rated voltage to adjoining terminal: | 500 V |
| Rated current: | 12 A |
| Current at maximum wires: | 12 A |
| Standards: | IEC 60947-7-3 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 12 AWG |
| Conductor size Factory wiring min. (UR): | 26 AWG |
| Conductor size Field wiring max. (UR): | 12 AWG |
| Conductor size Field wiring min. (UR): | 26 AWG |
| ETIM 6.0: | EC000899 |
| ETIM 7.0: | EC000899 |
| eClass 9.0: | 27-14-11-16 |
| eClass 9.1: | 27-14-11-16 |
| eClass 10.0: | 27-14-11-16 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | ZSI 2.5/2/LD 250AC |
| Order No.: | 1616500000 |
| Version: | Z-series, Fuse terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige, Direct mounting |
| GTIN (EAN): | 4008190196615 |
| Qty.: | 10 pc(s). |
| Width: | 11.9 mm |
| Width (inches): | 0.469 inch |
| Height: | 79.5 mm |
| Height (inches): | 3.13 inch |
| Depth: | 73 mm |
| Depth (inches): | 2.874 inch |
| Depth including DIN rail: | 74 mm |
| Net weight: | 29 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Tension-clamp connection, Fuse cartridge, with LED, for plug-in cross-connector, in closed state |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1152892 |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 2.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.13 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 2 |
| Stripping length: | 10 mm |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Operating voltage for display, max.: | 250 V |
| Operating voltage for display, min.: | 140 V |
| Type of voltage for indicator: | AC/DC |
| Cartridge fuse: | G-Si. 6.3 x 32 |
| Display: | Red LED |
| Fuse holder (cartridge holder): | Pivoting |
| Operating voltage, max.: | 250 V |
| Power loss for overload and short-circuit protection for a composite arrangement: | 2.5 W at 2.5 A @ 29°C |
| Power loss for overload and short-circuit protection for an individual arrangement: | 2.5 W at 2.5 A @ 40°C |
| Power loss for short-circuit protection only for a composite arrangement: | 2.5 W at 2.5 A @ 72°C |
| Power loss for short-circuit protection only for an individual arrangement: | 4.0 W at 10.0 A @ 46°C |
| Type of voltage for indicator: | AC/DC |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 250 V |
| Rated voltage to adjoining terminal: | 500 V |
| Rated current: | 12 A |
| Current at maximum wires: | 12 A |
| Standards: | IEC 60947-7-3 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 12 AWG |
| Conductor size Factory wiring min. (UR): | 26 AWG |
| Conductor size Field wiring max. (UR): | 12 AWG |
| Conductor size Field wiring min. (UR): | 26 AWG |
| ETIM 6.0: | EC000899 |
| ETIM 7.0: | EC000899 |
| eClass 9.0: | 27-14-11-16 |
| eClass 9.1: | 27-14-11-16 |
| eClass 10.0: | 27-14-11-16 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,029 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
