Weidmueller
1561980000
WQB WPD X04/2
Poproś o ofertę

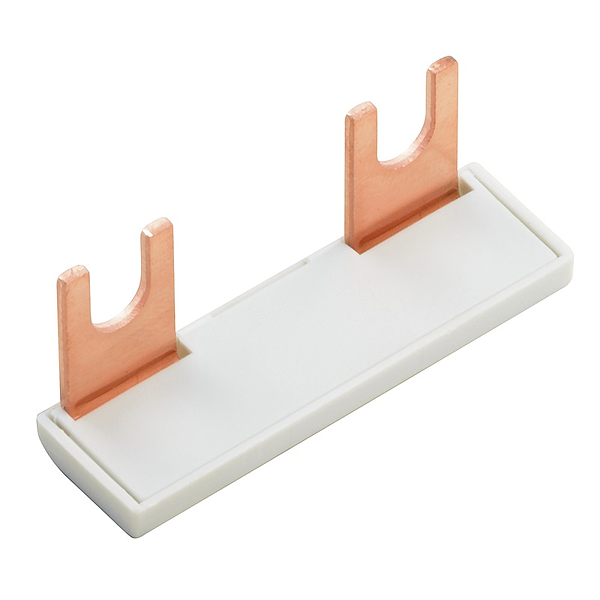

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1561980000
WQB WPD X04/2
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WQB WPD X04/2 |
| Order No.: | 1561980000 |
| Version: | W-Series, Cross-connector, Number of poles: 2 |
| GTIN (EAN): | 4050118367317 |
| Qty.: | 20 pc(s). |
| Width: | 49.3 mm |
| Width (inches): | 1.941 inch |
| Height: | 14 mm |
| Height (inches): | 0.551 inch |
| Depth: | 19.6 mm |
| Depth (inches): | 0.772 inch |
| Net weight: | 11.4 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Installation advice: | when screwed in |
| Type of fixing: | Plugged |
| Pitch in mm (P): | 31.5 mm |
| Rated current: | 135 A |
| ETIM 6.0: | EC000489 |
| ETIM 7.0: | EC000489 |
| eClass 9.0: | 27-14-11-40 |
| eClass 9.1: | 27-14-11-40 |
| eClass 10.0: | 27-14-11-40 |
| ROHS: | Conform |
| Type: | WQB WPD X04/2 |
| Order No.: | 1561980000 |
| Version: | W-Series, Cross-connector, Number of poles: 2 |
| GTIN (EAN): | 4050118367317 |
| Qty.: | 20 pc(s). |
| Width: | 49.3 mm |
| Width (inches): | 1.941 inch |
| Height: | 14 mm |
| Height (inches): | 0.551 inch |
| Depth: | 19.6 mm |
| Depth (inches): | 0.772 inch |
| Net weight: | 11.4 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Installation advice: | when screwed in |
| Type of fixing: | Plugged |
| Pitch in mm (P): | 31.5 mm |
| Rated current: | 135 A |
| ETIM 6.0: | EC000489 |
| ETIM 7.0: | EC000489 |
| eClass 9.0: | 27-14-11-40 |
| eClass 9.1: | 27-14-11-40 |
| eClass 10.0: | 27-14-11-40 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,012 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
