Produkt
Weidmueller
1561930000
WPD 100 2X25/6X10 GN
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

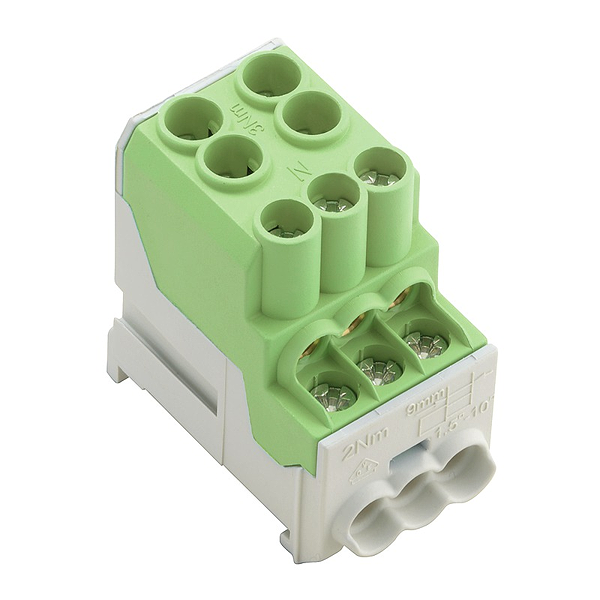

Weidmueller 1561930000
WPD 100 2X25/6X10 GN
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WPD 100 2X25/6X10 GN |
| Order No.: | 1561930000 |
| Version: | W-Series, Distribution block, Rated cross-section: Screw connection, Terminal rail / mounting plate |
| GTIN (EAN): | 4050118367300 |
| Qty.: | 3 pc(s). |
| Width: | 30.2 mm |
| Width (inches): | 1.189 inch |
| Height: | 55.4 mm |
| Height (inches): | 2.181 inch |
| Depth: | 49 mm |
| Depth (inches): | 1.929 inch |
| Net weight: | 102 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 130 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | green |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | Yes |
| PE connection: | Yes |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Installation advice: | Terminal rail / mounting plate |
| Open sides: | closed |
| Type of mounting: | Snap-on |
| Connection direction: | on side |
| Type of connection: | Screw connection |
| PEN function: | No |
| Rated AC voltage: | 690 V AC |
| Rated DC voltage: | 690 V DC |
| Rated current: | 100 A |
| Current at maximum wires: | 100 A |
| Standards: | IEC 60998-2-1 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
| Type: | WPD 100 2X25/6X10 GN |
| Order No.: | 1561930000 |
| Version: | W-Series, Distribution block, Rated cross-section: Screw connection, Terminal rail / mounting plate |
| GTIN (EAN): | 4050118367300 |
| Qty.: | 3 pc(s). |
| Width: | 30.2 mm |
| Width (inches): | 1.189 inch |
| Height: | 55.4 mm |
| Height (inches): | 2.181 inch |
| Depth: | 49 mm |
| Depth (inches): | 1.929 inch |
| Net weight: | 102 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 130 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | green |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | Yes |
| PE connection: | Yes |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Installation advice: | Terminal rail / mounting plate |
| Open sides: | closed |
| Type of mounting: | Snap-on |
| Connection direction: | on side |
| Type of connection: | Screw connection |
| PEN function: | No |
| Rated AC voltage: | 690 V AC |
| Rated DC voltage: | 690 V DC |
| Rated current: | 100 A |
| Current at maximum wires: | 100 A |
| Standards: | IEC 60998-2-1 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,107 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
