Produkt
Weidmueller
1547500000
JB 25-50
Poproś o ofertę

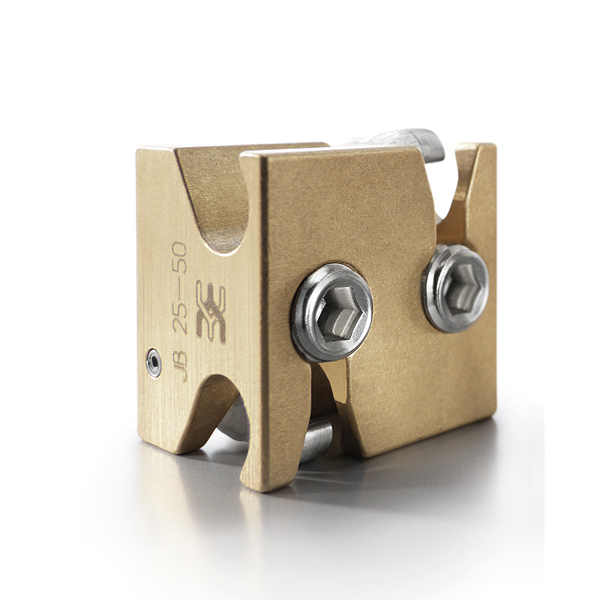

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1547500000
JB 25-50
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | JB 25-50 |
| Order No.: | 1547500000 |
| Version: | WPAK, Potential equalisation block, Rated cross-section: Screw connection, Direct mounting |
| GTIN (EAN): | 4050118387445 |
| Qty.: | 10 pc(s). |
| Width: | 33 mm |
| Width (inches): | 1.299 inch |
| Height: | 32 mm |
| Height (inches): | 1.26 inch |
| Depth: | 24 mm |
| Depth (inches): | 0.945 inch |
| Net weight: | 134.505 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Ambient temperature: | -40°C bis +75°C |
| Storage temperature: | 10 °C...40 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Brass |
| Colour: | Brass coloured |
| Installation advice: | Direct mounting |
| Type of mounting: | when screwed in |
| Clamping range, max.: | 50 mm² |
| Clamping range, min.: | 10 mm² |
| Clamping screw: | M 6 |
| Connection direction: | on side |
| Number of connections: | 2 |
| Stripping length: | 33 mm |
| Tightening torque, min.: | 5 Nm |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 50 mm² |
| Wire connection cross-section, finely stranded, min.: | 10 mm² |
| Pollution severity: | 3 |
| Product information: | Qualfiedin acc. IEC 60947-7-2, Can be used for functional equipotential bonding and protective equipotentail bonding Mounting on cable trench with M6x9 screw |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
| Type: | JB 25-50 |
| Order No.: | 1547500000 |
| Version: | WPAK, Potential equalisation block, Rated cross-section: Screw connection, Direct mounting |
| GTIN (EAN): | 4050118387445 |
| Qty.: | 10 pc(s). |
| Width: | 33 mm |
| Width (inches): | 1.299 inch |
| Height: | 32 mm |
| Height (inches): | 1.26 inch |
| Depth: | 24 mm |
| Depth (inches): | 0.945 inch |
| Net weight: | 134.505 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Ambient temperature: | -40°C bis +75°C |
| Storage temperature: | 10 °C...40 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Brass |
| Colour: | Brass coloured |
| Installation advice: | Direct mounting |
| Type of mounting: | when screwed in |
| Clamping range, max.: | 50 mm² |
| Clamping range, min.: | 10 mm² |
| Clamping screw: | M 6 |
| Connection direction: | on side |
| Number of connections: | 2 |
| Stripping length: | 33 mm |
| Tightening torque, min.: | 5 Nm |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 50 mm² |
| Wire connection cross-section, finely stranded, min.: | 10 mm² |
| Pollution severity: | 3 |
| Product information: | Qualfiedin acc. IEC 60947-7-2, Can be used for functional equipotential bonding and protective equipotentail bonding Mounting on cable trench with M6x9 screw |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,138 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
