Produkt
Weidmueller
1530040000
ZEI 6 BL
Poproś o ofertę

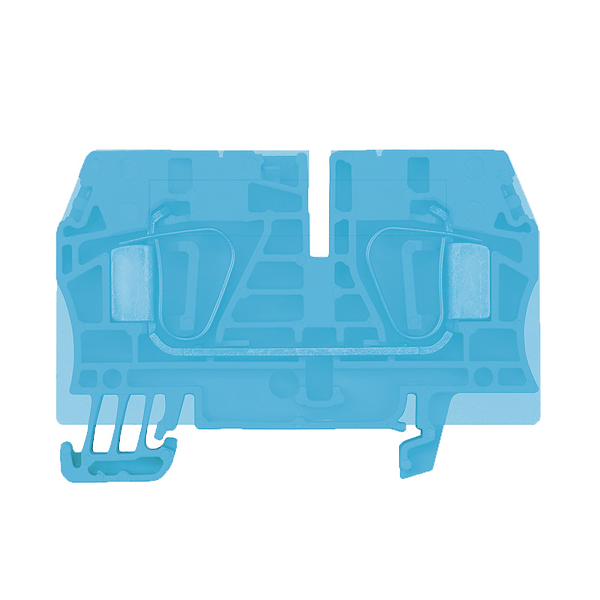

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1530040000
ZEI 6 BL
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | ZEI 6 BL |
| Order No.: | 1530040000 |
| Version: | Supply terminal, Tension-clamp connection, 6 mm², 500 V, 41 A, blue |
| GTIN (EAN): | 4050118334982 |
| Qty.: | 20 pc(s). |
| Width: | 10 mm |
| Width (inches): | 0.394 inch |
| Height: | 65 mm |
| Height (inches): | 2.559 inch |
| Depth: | 45 mm |
| Depth (inches): | 1.772 inch |
| Depth including DIN rail: | 45.5 mm |
| Net weight: | 20.46 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | blue |
| UL 94 flammability rating: | V-0 |
| Version: | Tension-clamp connection, Supply terminal, for plug-in cross-connector, in closed state |
| End cover plate required: | No |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| Explosion-tested version: | No |
| Open sides: | closed |
| Type of mounting: | Snap-on |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 0.5 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A5 |
| Number of connections: | 2 |
| Stripping length: | 13 mm |
| Twin wire-end ferrules, max.: | 2 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 35 offset: | 39 mm |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 500 V |
| Rated current: | 41 A |
| Current at maximum wires: | 57 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 4 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | ZEI 6 BL |
| Order No.: | 1530040000 |
| Version: | Supply terminal, Tension-clamp connection, 6 mm², 500 V, 41 A, blue |
| GTIN (EAN): | 4050118334982 |
| Qty.: | 20 pc(s). |
| Width: | 10 mm |
| Width (inches): | 0.394 inch |
| Height: | 65 mm |
| Height (inches): | 2.559 inch |
| Depth: | 45 mm |
| Depth (inches): | 1.772 inch |
| Depth including DIN rail: | 45.5 mm |
| Net weight: | 20.46 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | blue |
| UL 94 flammability rating: | V-0 |
| Version: | Tension-clamp connection, Supply terminal, for plug-in cross-connector, in closed state |
| End cover plate required: | No |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| Explosion-tested version: | No |
| Open sides: | closed |
| Type of mounting: | Snap-on |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 0.5 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A5 |
| Number of connections: | 2 |
| Stripping length: | 13 mm |
| Twin wire-end ferrules, max.: | 2 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Tension-clamp connection |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 35 offset: | 39 mm |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 500 V |
| Rated current: | 41 A |
| Current at maximum wires: | 57 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 4 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,023 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
