Produkt
Weidmueller
1528130000
ZQV 4N/50
Poproś o ofertę

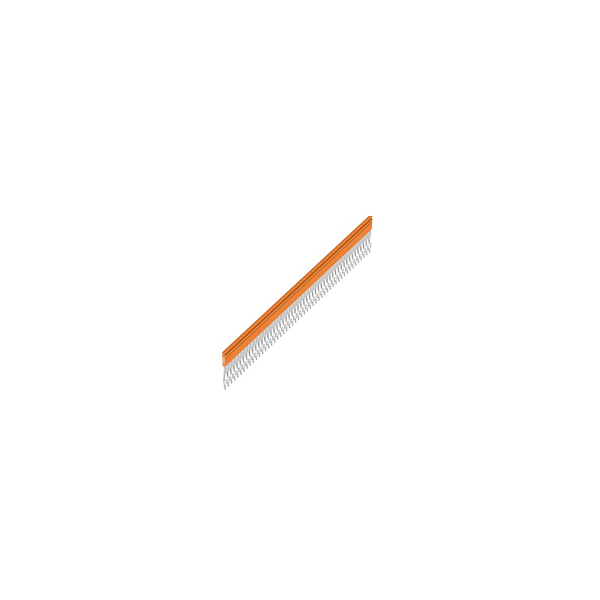

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1528130000
ZQV 4N/50
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | ZQV 4N/50 |
| Order No.: | 1528130000 |
| GTIN (EAN): | 4050118332902 |
| Qty.: | 5 pc(s). |
| Width: | 303.7 mm |
| Width (inches): | 11.957 inch |
| Height: | 2.8 mm |
| Height (inches): | 0.11 inch |
| Depth: | 27.95 mm |
| Depth (inches): | 1.1 inch |
| Net weight: | 42.8 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | orange |
| UL 94 flammability rating: | V-0 |
| Explosion-tested version: | No |
| Type of fixing: | Plugged |
| Pitch in mm (P): | 6.1 mm |
| Rated current: | 32 A |
| Product information: | Attention: not finger-safe; not suitable for ATEX useDue to stability and temperature reasons It is only possible to break out 60% of contact elements The usage of cross connectors reduces the rated voltage to 400VThe voltage reduced to 25V if cut cross connection with blank cut edges are used |
| ETIM 6.0: | EC000489 |
| ETIM 7.0: | EC000489 |
| eClass 9.0: | 27-14-11-40 |
| eClass 9.1: | 27-14-11-40 |
| eClass 10.0: | 27-14-11-40 |
| ROHS: | Conform |
| Type: | ZQV 4N/50 |
| Order No.: | 1528130000 |
| GTIN (EAN): | 4050118332902 |
| Qty.: | 5 pc(s). |
| Width: | 303.7 mm |
| Width (inches): | 11.957 inch |
| Height: | 2.8 mm |
| Height (inches): | 0.11 inch |
| Depth: | 27.95 mm |
| Depth (inches): | 1.1 inch |
| Net weight: | 42.8 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | orange |
| UL 94 flammability rating: | V-0 |
| Explosion-tested version: | No |
| Type of fixing: | Plugged |
| Pitch in mm (P): | 6.1 mm |
| Rated current: | 32 A |
| Product information: | Attention: not finger-safe; not suitable for ATEX useDue to stability and temperature reasons It is only possible to break out 60% of contact elements The usage of cross connectors reduces the rated voltage to 400VThe voltage reduced to 25V if cut cross connection with blank cut edges are used |
| ETIM 6.0: | EC000489 |
| ETIM 7.0: | EC000489 |
| eClass 9.0: | 27-14-11-40 |
| eClass 9.1: | 27-14-11-40 |
| eClass 10.0: | 27-14-11-40 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,043 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
