Produkt
Article image 1518370000
Manufacturer logo

Weidmueller

1518370000

KDKS 1PE/LLC 100-250V AC/DC

Poproś o ofertę
Zamknij
Poproś o ofertę

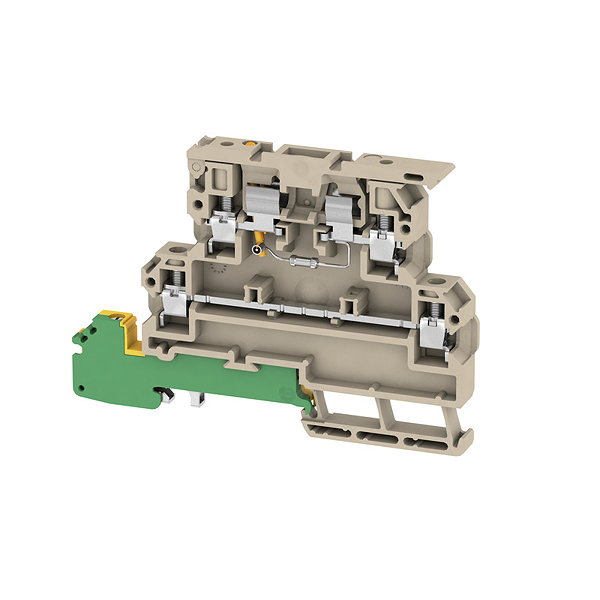

Article image 1518370000
Prawa autorskie do obrazu: Weidmueller

Weidmueller 1518370000

KDKS 1PE/LLC 100-250V AC/DC

Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"

Opis

Parametry techniczne

Type: KDKS 1PE/LLC 100-250V AC/DC
Order No.: 1518370000
Version: W-Series, Fuse terminal, Rated cross-section: 4 mm², Screw connection
GTIN (EAN): 4050118325621
Qty.: 50 pc(s).
Width: 8 mm
Width (inches): 0.315 inch
Height: 91 mm
Height (inches): 3.583 inch
Depth: 65 mm
Depth (inches): 2.559 inch
Net weight: 29.6 g
Storage temperature, max.: 40 °C
Storage temperature, min.: 10 °C
Storage temperature: 10 °C...40 °C
Continuous operating temp., min.: -50 °C
Continuous operating temp., max.: 120 °C
Material: Wemid
Colour: dark beige
UL 94 flammability rating: V-0
Version: Screw connection, Fuse isolator, With PE connection, One end without connector
End cover plate required: Yes
Number of potentials: 3
Number of levels: 3
Number of clamping points per level: 2
Number of potentials per tier: 1
Levels cross-connected internally: No
PE connection: Yes
Rail: TS 35
N-function: No
PE function: Yes
PEN function: No
Explosion-tested version: No
Open sides: right
Type of mounting: Snap-on
Certificate No. (CSA): E200039-70000261
Current size B (CSA): 25 A
Current size C (CSA): 25 A
Current size D (CSA): 10 A
Voltage size B (CSA): 300 V
Voltage size C (CSA): 150 V
Voltage size D (CSA): 300 V
Wire cross section max. (CSA): 12 AWG
Wire cross section min. (CSA): 26 AWG
Blade size: 0.6 x 3.5 mm
Clamping range, max.: 4 mm²
Clamping range, min.: 0.33 mm²
Clamping screw: M 3
Connection cross-section, stranded, max.: 4 mm²
Connection cross-section, stranded, min.: 1.5 mm²
Connection direction: on side
Gauge to IEC 60947-1: A3
Number of connections: 3
Stripping length: 9 mm
Tightening torque, max.: 1 Nm
Tightening torque, min.: 0.5 Nm
Torque level with DMS electric screwdriver: 2
Type of connection: Screw connection
Wire connection cross section AWG, max.: AWG 12
Wire connection cross section AWG, min.: AWG 22
Wire connection cross section, finely stranded, max.: 4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
Wire connection cross-section, finely stranded, min.: 0.5 mm²
Wire connection cross-section, solid core, max.: 4 mm²
Wire connection cross-section, solid core, min.: 0.5 mm²
Cartridge fuse: G-Si. 5 x 20
Display: Red LED
Leakage current, max.: 0.089 mA
Power loss for overload and short-circuit protection for a composite arrangement: 1.6 W at 6.3 A @ 23°C
Power loss for overload and short-circuit protection for an individual arrangement: 1.6 W at 6.3 A @ 29°C
Power loss for short-circuit protection only for a composite arrangement: 2.5 W at 6.3 A @ 41°C
Power loss for short-circuit protection only for an individual arrangement: 4.0 W at 6.3 A @ 44°C
Rated short-time current: 300 A (2.5 mm²)
PEN function: No
Rated cross-section: 4 mm²
Rated voltage: 250 V
Rated voltage to adjoining terminal: 500 V
Rated current: 6.3 A
Standards: IEC 60947-7-1, IEC 60947-7-2, IEC 60947-7-3
Volume resistance according to IEC 60947-7-x: 1 mΩ
Power loss in accordance with IEC 60947-7-x: 1.02 W
Rated impulse withstand voltage: 6 kV
Pollution severity: 3
Surge voltage category: III
Certificate No. (UR): E60693
Conductor size Factory wiring max. (UR): 12 AWG
Conductor size Factory wiring min. (UR): 26 AWG
Conductor size Field wiring max. (UR): 12 AWG
Conductor size Field wiring min. (UR): 22 AWG
Current size B (UR): 20 A
Current size C (UR): 20 A
Voltage size B (UR): 250 V
Voltage size C (UR): 300 V
ETIM 6.0: EC000899
ETIM 7.0: EC000899
eClass 9.0: 27-14-11-16
eClass 9.1: 27-14-11-16
eClass 10.0: 27-14-11-16
ROHS: Conform
Type: KDKS 1PE/LLC 100-250V AC/DC
Order No.: 1518370000
Version: W-Series, Fuse terminal, Rated cross-section: 4 mm², Screw connection
GTIN (EAN): 4050118325621
Qty.: 50 pc(s).
Width: 8 mm
Width (inches): 0.315 inch
Height: 91 mm
Height (inches): 3.583 inch
Depth: 65 mm
Depth (inches): 2.559 inch
Net weight: 29.6 g
Storage temperature, max.: 40 °C
Storage temperature, min.: 10 °C
Storage temperature: 10 °C...40 °C
Continuous operating temp., min.: -50 °C
Continuous operating temp., max.: 120 °C
Material: Wemid
Colour: dark beige
UL 94 flammability rating: V-0
Version: Screw connection, Fuse isolator, With PE connection, One end without connector
End cover plate required: Yes
Number of potentials: 3
Number of levels: 3
Number of clamping points per level: 2
Number of potentials per tier: 1
Levels cross-connected internally: No
PE connection: Yes
Rail: TS 35
N-function: No
PE function: Yes
PEN function: No
Explosion-tested version: No
Open sides: right
Type of mounting: Snap-on
Certificate No. (CSA): E200039-70000261
Current size B (CSA): 25 A
Current size C (CSA): 25 A
Current size D (CSA): 10 A
Voltage size B (CSA): 300 V
Voltage size C (CSA): 150 V
Voltage size D (CSA): 300 V
Wire cross section max. (CSA): 12 AWG
Wire cross section min. (CSA): 26 AWG
Blade size: 0.6 x 3.5 mm
Clamping range, max.: 4 mm²
Clamping range, min.: 0.33 mm²
Clamping screw: M 3
Connection cross-section, stranded, max.: 4 mm²
Connection cross-section, stranded, min.: 1.5 mm²
Connection direction: on side
Gauge to IEC 60947-1: A3
Number of connections: 3
Stripping length: 9 mm
Tightening torque, max.: 1 Nm
Tightening torque, min.: 0.5 Nm
Torque level with DMS electric screwdriver: 2
Type of connection: Screw connection
Wire connection cross section AWG, max.: AWG 12
Wire connection cross section AWG, min.: AWG 22
Wire connection cross section, finely stranded, max.: 4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
Wire connection cross-section, finely stranded, min.: 0.5 mm²
Wire connection cross-section, solid core, max.: 4 mm²
Wire connection cross-section, solid core, min.: 0.5 mm²
Cartridge fuse: G-Si. 5 x 20
Display: Red LED
Leakage current, max.: 0.089 mA
Power loss for overload and short-circuit protection for a composite arrangement: 1.6 W at 6.3 A @ 23°C
Power loss for overload and short-circuit protection for an individual arrangement: 1.6 W at 6.3 A @ 29°C
Power loss for short-circuit protection only for a composite arrangement: 2.5 W at 6.3 A @ 41°C
Power loss for short-circuit protection only for an individual arrangement: 4.0 W at 6.3 A @ 44°C
Rated short-time current: 300 A (2.5 mm²)
PEN function: No
Rated cross-section: 4 mm²
Rated voltage: 250 V
Rated voltage to adjoining terminal: 500 V
Rated current: 6.3 A
Standards: IEC 60947-7-1, IEC 60947-7-2, IEC 60947-7-3
Volume resistance according to IEC 60947-7-x: 1 mΩ
Power loss in accordance with IEC 60947-7-x: 1.02 W
Rated impulse withstand voltage: 6 kV
Pollution severity: 3
Surge voltage category: III
Certificate No. (UR): E60693
Conductor size Factory wiring max. (UR): 12 AWG
Conductor size Factory wiring min. (UR): 26 AWG
Conductor size Field wiring max. (UR): 12 AWG
Conductor size Field wiring min. (UR): 22 AWG
Current size B (UR): 20 A
Current size C (UR): 20 A
Voltage size B (UR): 250 V
Voltage size C (UR): 300 V
ETIM 6.0: EC000899
ETIM 7.0: EC000899
eClass 9.0: 27-14-11-16
eClass 9.1: 27-14-11-16
eClass 10.0: 27-14-11-16
ROHS: Conform

Parametry logistyczne

ECCN:
Kraj pochodzenia:
EAN:
Waga: 0,03 kg
Długość: 0,00 m
Szerokość: 0,00 m
Wysokość: 0,00 m
