Produkt
Weidmueller
1513900000
APG 2.5 MI BL
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

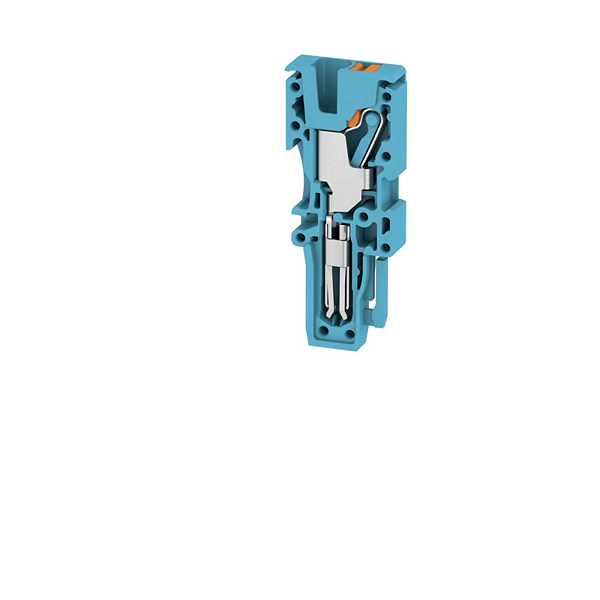

Weidmueller 1513900000
APG 2.5 MI BL
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | APG 2.5 MI BL |
| Order No.: | 1513900000 |
| Version: | Plug, 2.5 mm², 800, 24 A, Number of poles: 1, blue |
| GTIN (EAN): | 4050118321432 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 16.5 mm |
| Height (inches): | 0.65 inch |
| Depth: | 42.5 mm |
| Depth (inches): | 1.673 inch |
| Net weight: | 3.31 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | blue |
| UL 94 flammability rating: | V-0 |
| Certificate No. (CSA): | 200039-70089609 |
| Current size B (CSA): | 20 A |
| Current size C (CSA): | 20 A |
| Current size D (CSA): | 5 A |
| Voltage size B (CSA): | 600 V |
| Voltage size C (CSA): | 600 V |
| Voltage size D (CSA): | 600 V |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 28 AWG |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 2.5 mm² |
| Clamping range, min.: | 0.14 mm² |
| Connection cross-section, stranded, max.: | 2.5 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 1 |
| Stripping length: | 10 mm |
| Type of connection: | PUSH IN |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 2.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 800 |
| Rated current: | 24 A |
| Current at maximum wires: | 24 A |
| Standards: | IEC 61984 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Surge voltage category: | III |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 12 AWG |
| Conductor size Factory wiring min. (cURus): | 28 AWG |
| Conductor size Field wiring max. (cURus): | 12 AWG |
| Conductor size Field wiring min. (cURus): | 28 AWG |
| Current size B (cURus): | 20 A |
| Current size C (cURus): | 20 A |
| Current size D (cURus): | 5 A |
| Voltage size B (cURus): | 600 V |
| Voltage size C (cURus): | 600 V |
| Voltage size D (cURus): | 600 V |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| ROHS: | Conform |
| Type: | APG 2.5 MI BL |
| Order No.: | 1513900000 |
| Version: | Plug, 2.5 mm², 800, 24 A, Number of poles: 1, blue |
| GTIN (EAN): | 4050118321432 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 16.5 mm |
| Height (inches): | 0.65 inch |
| Depth: | 42.5 mm |
| Depth (inches): | 1.673 inch |
| Net weight: | 3.31 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | blue |
| UL 94 flammability rating: | V-0 |
| Certificate No. (CSA): | 200039-70089609 |
| Current size B (CSA): | 20 A |
| Current size C (CSA): | 20 A |
| Current size D (CSA): | 5 A |
| Voltage size B (CSA): | 600 V |
| Voltage size C (CSA): | 600 V |
| Voltage size D (CSA): | 600 V |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 28 AWG |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 2.5 mm² |
| Clamping range, min.: | 0.14 mm² |
| Connection cross-section, stranded, max.: | 2.5 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 1 |
| Stripping length: | 10 mm |
| Type of connection: | PUSH IN |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 2.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 800 |
| Rated current: | 24 A |
| Current at maximum wires: | 24 A |
| Standards: | IEC 61984 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Surge voltage category: | III |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 12 AWG |
| Conductor size Factory wiring min. (cURus): | 28 AWG |
| Conductor size Field wiring max. (cURus): | 12 AWG |
| Conductor size Field wiring min. (cURus): | 28 AWG |
| Current size B (cURus): | 20 A |
| Current size C (cURus): | 20 A |
| Current size D (cURus): | 5 A |
| Voltage size B (cURus): | 600 V |
| Voltage size C (cURus): | 600 V |
| Voltage size D (cURus): | 600 V |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,004 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
