Produkt
Weidmueller
1463540000
TIAL F10
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

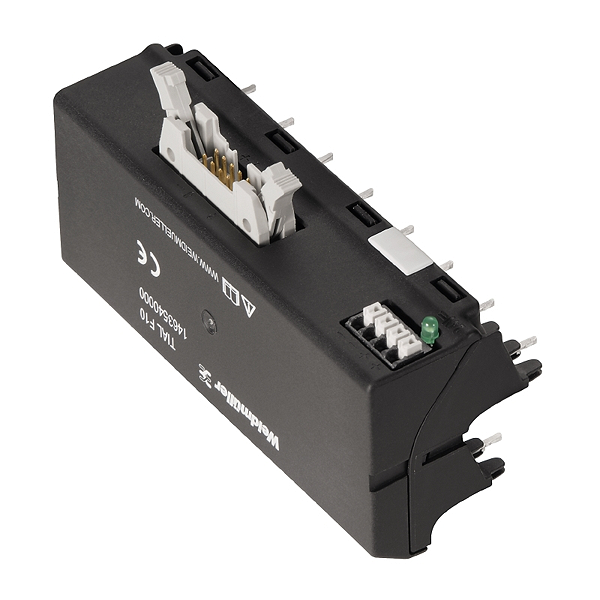

Weidmueller 1463540000
TIAL F10
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | TIAL F10 |
| Order No.: | 1463540000 |
| Version: | TERMSERIES, Adapter, 10-pole plug according to DIN EN 60603-13, long locking lever, Number of signal paths: 8, Rated voltage : 24 V DC, Rated current (per signal path): 125 mA |
| GTIN (EAN): | 4050118323559 |
| Qty.: | 1 pc(s). |
| Width: | 102 mm |
| Width (inches): | 4.016 inch |
| Height: | 43 mm |
| Height (inches): | 1.693 inch |
| Depth: | 62 mm |
| Depth (inches): | 2.441 inch |
| Net weight: | 74.15 g |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...60 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Voltage supply: | 24 V DC ± 20 % |
| Status display: | Green LED |
| Current (per signal path), max.: | 1 A |
| Number of signal paths: | 8 |
| Rated current (per signal path): | 125 mA |
| Rated voltage: | 24 V DC |
| Total current of all signals, max.: | 1 A |
| Voltage, max.: | 30 V DC |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 32 V |
| Pollution severity: | 2 |
| Surge voltage category: | III |
| Impulse withstand voltage: | 1.5 kV |
| Protection degree: | IP20 in installed state |
| Certificate No. (DNVGL): | TAA00001E5 |
| Certificate no. (cULus): | E141197 |
| Wire connection method: | PUSH IN |
| Number of terminals: | 4 (+,+,−,−) |
| Clamping range, rated connection, min.: | 0.13 mm² |
| Clamping range, rated connection, max.: | 1.5 mm² |
| Blade size (supply): | 0.6 x 3.5 mm |
| Plug type: | 10-pole plug according to DIN EN 60603-13, long locking lever |
| ETIM 6.0: | EC002780 |
| ETIM 7.0: | EC002780 |
| eClass 9.0: | 27-14-11-52 |
| eClass 9.1: | 27-14-11-52 |
| eClass 10.0: | 27-14-11-52 |
| ROHS: | Conform |
| Type: | TIAL F10 |
| Order No.: | 1463540000 |
| Version: | TERMSERIES, Adapter, 10-pole plug according to DIN EN 60603-13, long locking lever, Number of signal paths: 8, Rated voltage : 24 V DC, Rated current (per signal path): 125 mA |
| GTIN (EAN): | 4050118323559 |
| Qty.: | 1 pc(s). |
| Width: | 102 mm |
| Width (inches): | 4.016 inch |
| Height: | 43 mm |
| Height (inches): | 1.693 inch |
| Depth: | 62 mm |
| Depth (inches): | 2.441 inch |
| Net weight: | 74.15 g |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...60 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Voltage supply: | 24 V DC ± 20 % |
| Status display: | Green LED |
| Current (per signal path), max.: | 1 A |
| Number of signal paths: | 8 |
| Rated current (per signal path): | 125 mA |
| Rated voltage: | 24 V DC |
| Total current of all signals, max.: | 1 A |
| Voltage, max.: | 30 V DC |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 32 V |
| Pollution severity: | 2 |
| Surge voltage category: | III |
| Impulse withstand voltage: | 1.5 kV |
| Protection degree: | IP20 in installed state |
| Certificate No. (DNVGL): | TAA00001E5 |
| Certificate no. (cULus): | E141197 |
| Wire connection method: | PUSH IN |
| Number of terminals: | 4 (+,+,−,−) |
| Clamping range, rated connection, min.: | 0.13 mm² |
| Clamping range, rated connection, max.: | 1.5 mm² |
| Blade size (supply): | 0.6 x 3.5 mm |
| Plug type: | 10-pole plug according to DIN EN 60603-13, long locking lever |
| ETIM 6.0: | EC002780 |
| ETIM 7.0: | EC002780 |
| eClass 9.0: | 27-14-11-52 |
| eClass 9.1: | 27-14-11-52 |
| eClass 10.0: | 27-14-11-52 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,11 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
