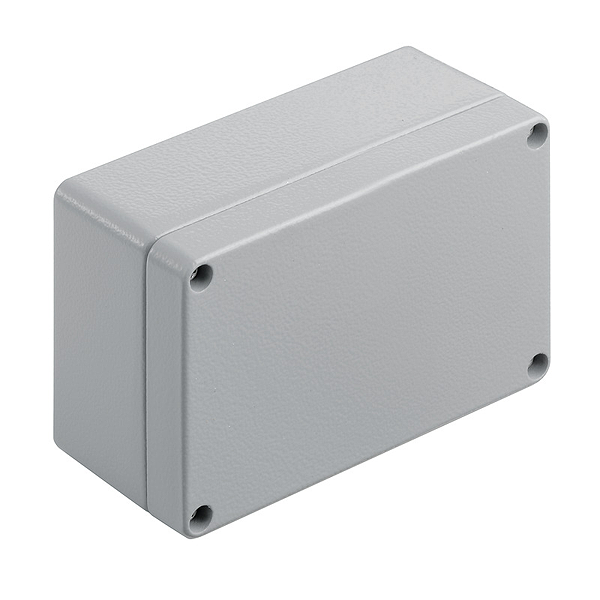

Weidmueller 1328120000
KLIPPON K21 EX RAL7001
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Available until: | 1970-01-01 |
| Type: | KLIPPON K21 EX RAL7001 |
| Order No.: | 1328120000 |
| Version: | Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 80 mm, Width: 125 mm, Depth: 57 mm, Material: Aluminium AlSi12, Powder-coated, Silver grey |
| GTIN (EAN): | 4050118132908 |
| Qty.: | 1 pc(s). |
| Width: | 125 mm |
| Width (inches): | 4.921 inch |
| Height: | 80 mm |
| Height (inches): | 3.15 inch |
| Depth: | 57 mm |
| Depth (inches): | 2.244 inch |
| Mounting dimension - width: | 113 mm |
| Mounting dimension - height: | 52 mm |
| Net weight: | 484 g |
| REACH SVHC: | Lead 7439-92-1 |
| M12: | 2 |
| M16: | 2 |
| M20: | 1 |
| M12: | 2 |
| M16: | 2 |
| M20: | 1 |
| M12: | 6 |
| M16: | 4 |
| M20: | 3 |
| M25: | 2 |
| Certificate no. Terminal Box (ATEX): | IBExU12ATEX1145 X |
| Certificate no. empty enclosure (ATEX): | IBExU12ATEX1144 U |
| Certificate no. Terminal Box (IECEx): | IECEx IBE 13.0002X |
| Certificate no. empty enclosure (IECEx): | IECEx IBE 13.0001U |
| Certificate no. Terminal Box (EAC): | RU C-DE.ГБ08.B.01328 |
| Certificate no., empty enclosure (EAC): | RU C-DE.ГБ08.B.00472 |
| Certificate No. (MARITREG): | 19.00108.272 |
| Areas of use: | Explosive risk zone, Process industry, Transportation, Packaging industry, Marine engineering, Machine construction, Harbour facilities |
| Material thickness: | 4 mm |
| Material thickness of cover: | 2.5 mm |
| Material thickness of enclosure: | 4 mm |
| Standards: | IEC 60079-0, IEC 60079-7, IEC 60079-31 |
| Torque for lid screws: | 2.5 Nm |
| Material: | Aluminium AlSi12 |
| Seal material: | Silicone |
| Surface finish: | Powder-coated |
| Operating temperature, min.: | -60 °C |
| Operating temperature, max.: | 135 °C |
| Impact resistance: | 7.00 J |
| Protection degree: | IP66, IP67 |
| Enclosure attachment: | Holes 4 mm |
| Lid attachment: | M4 torx stainless steel screws with slot |
| Integral fixing: | Threaded holes M4 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | 1x15 |
| WDU 4 / ZDU 4: | 1x12 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | * |
| WDU 4 / ZDU 4: | * |
| ETIM 6.0: | EC002503 |
| ETIM 7.0: | EC002503 |
| eClass 9.0: | 27-18-05-02 |
| eClass 9.1: | 27-18-05-02 |
| eClass 10.0: | 27-18-05-02 |
| ROHS: | Conform |
| Available until: | 1970-01-01 |
| Type: | KLIPPON K21 EX RAL7001 |
| Order No.: | 1328120000 |
| Version: | Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 80 mm, Width: 125 mm, Depth: 57 mm, Material: Aluminium AlSi12, Powder-coated, Silver grey |
| GTIN (EAN): | 4050118132908 |
| Qty.: | 1 pc(s). |
| Width: | 125 mm |
| Width (inches): | 4.921 inch |
| Height: | 80 mm |
| Height (inches): | 3.15 inch |
| Depth: | 57 mm |
| Depth (inches): | 2.244 inch |
| Mounting dimension - width: | 113 mm |
| Mounting dimension - height: | 52 mm |
| Net weight: | 484 g |
| REACH SVHC: | Lead 7439-92-1 |
| M12: | 2 |
| M16: | 2 |
| M20: | 1 |
| M12: | 2 |
| M16: | 2 |
| M20: | 1 |
| M12: | 6 |
| M16: | 4 |
| M20: | 3 |
| M25: | 2 |
| Certificate no. Terminal Box (ATEX): | IBExU12ATEX1145 X |
| Certificate no. empty enclosure (ATEX): | IBExU12ATEX1144 U |
| Certificate no. Terminal Box (IECEx): | IECEx IBE 13.0002X |
| Certificate no. empty enclosure (IECEx): | IECEx IBE 13.0001U |
| Certificate no. Terminal Box (EAC): | RU C-DE.ГБ08.B.01328 |
| Certificate no., empty enclosure (EAC): | RU C-DE.ГБ08.B.00472 |
| Certificate No. (MARITREG): | 19.00108.272 |
| Areas of use: | Explosive risk zone, Process industry, Transportation, Packaging industry, Marine engineering, Machine construction, Harbour facilities |
| Material thickness: | 4 mm |
| Material thickness of cover: | 2.5 mm |
| Material thickness of enclosure: | 4 mm |
| Standards: | IEC 60079-0, IEC 60079-7, IEC 60079-31 |
| Torque for lid screws: | 2.5 Nm |
| Material: | Aluminium AlSi12 |
| Seal material: | Silicone |
| Surface finish: | Powder-coated |
| Operating temperature, min.: | -60 °C |
| Operating temperature, max.: | 135 °C |
| Impact resistance: | 7.00 J |
| Protection degree: | IP66, IP67 |
| Enclosure attachment: | Holes 4 mm |
| Lid attachment: | M4 torx stainless steel screws with slot |
| Integral fixing: | Threaded holes M4 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | 1x15 |
| WDU 4 / ZDU 4: | 1x12 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | * |
| WDU 4 / ZDU 4: | * |
| ETIM 6.0: | EC002503 |
| ETIM 7.0: | EC002503 |
| eClass 9.0: | 27-18-05-02 |
| eClass 9.1: | 27-18-05-02 |
| eClass 10.0: | 27-18-05-02 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,511 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
