Produkt
Weidmueller
1319070000
WF 10/32
Poproś o ofertę

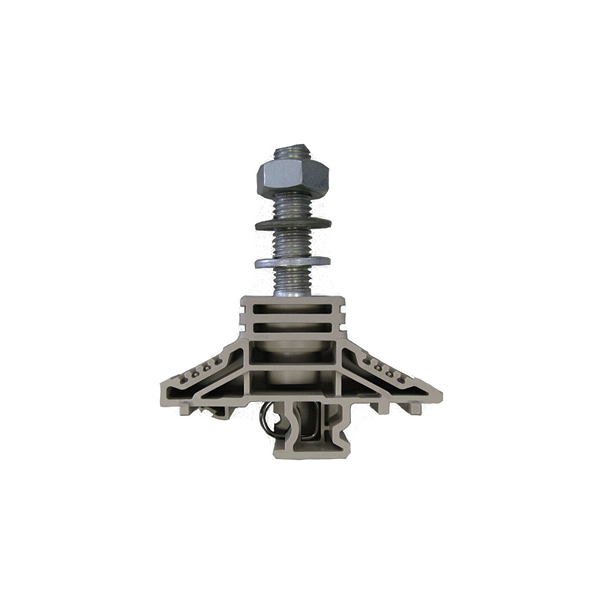

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1319070000
WF 10/32
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WF 10/32 |
| Order No.: | 1319070000 |
| Version: | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection |
| GTIN (EAN): | 4050118320077 |
| Qty.: | 25 pc(s). |
| Width: | 32 mm |
| Width (inches): | 1.26 inch |
| Height: | 67 mm |
| Height (inches): | 2.638 inch |
| Depth: | 79 mm |
| Depth (inches): | 3.11 inch |
| Net weight: | 88.6 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Single-stud terminals |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| Type of mounting: | Snap-on |
| 2 x cable lugs DIN 46 234: | 6 to 120 mm² |
| 2 x cable lugs DIN 46 235: | 10...95 mm² |
| Cable lug to DIN 46234: | 6...120 mm² |
| Cable lug to DIN 46235: | 10...95 mm² |
| Clamping range, max.: | 120 mm² |
| Clamping range, min.: | 6 mm² |
| Number of connections: | 1 |
| Stud size for spade connection: | M 10 |
| Tightening torque, max.: | 20 Nm |
| Tightening torque, min.: | 10 Nm |
| Type of connection: | Threaded stud connection |
| Rated cross-section: | 120 mm² |
| Rated voltage: | 1,000 V |
| Voltage with epoxy resin partition plate: | 2,300 V |
| Rated current: | 269 A |
| Current at maximum wires: | 269 A |
| Volume resistance according to IEC 60947-7-x: | 0.12 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 8.61 W |
| Rated impulse withstand voltage: | 8 kV |
| Impulse voltage with epoxy resin partition plate: | 12 kV |
| Pollution severity: | 3 |
| 2 x cable lugs DIN 46 234: | 6 to 120 mm² |
| 2 x cable lugs DIN 46 235: | 10...95 mm² |
| Cable lug to DIN 46234: | 6...120 mm² |
| Cable lug to DIN 46235: | 10...95 mm² |
| Impulse voltage with epoxy resin partition plate: | 12 kV |
| Stud size for spade connection: | M 10 |
| Tightening torque, max.: | 20 Nm |
| Tightening torque, min.: | 10 Nm |
| Voltage with epoxy resin partition plate: | 2,300 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
| Type: | WF 10/32 |
| Order No.: | 1319070000 |
| Version: | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection |
| GTIN (EAN): | 4050118320077 |
| Qty.: | 25 pc(s). |
| Width: | 32 mm |
| Width (inches): | 1.26 inch |
| Height: | 67 mm |
| Height (inches): | 2.638 inch |
| Depth: | 79 mm |
| Depth (inches): | 3.11 inch |
| Net weight: | 88.6 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Single-stud terminals |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| Type of mounting: | Snap-on |
| 2 x cable lugs DIN 46 234: | 6 to 120 mm² |
| 2 x cable lugs DIN 46 235: | 10...95 mm² |
| Cable lug to DIN 46234: | 6...120 mm² |
| Cable lug to DIN 46235: | 10...95 mm² |
| Clamping range, max.: | 120 mm² |
| Clamping range, min.: | 6 mm² |
| Number of connections: | 1 |
| Stud size for spade connection: | M 10 |
| Tightening torque, max.: | 20 Nm |
| Tightening torque, min.: | 10 Nm |
| Type of connection: | Threaded stud connection |
| Rated cross-section: | 120 mm² |
| Rated voltage: | 1,000 V |
| Voltage with epoxy resin partition plate: | 2,300 V |
| Rated current: | 269 A |
| Current at maximum wires: | 269 A |
| Volume resistance according to IEC 60947-7-x: | 0.12 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 8.61 W |
| Rated impulse withstand voltage: | 8 kV |
| Impulse voltage with epoxy resin partition plate: | 12 kV |
| Pollution severity: | 3 |
| 2 x cable lugs DIN 46 234: | 6 to 120 mm² |
| 2 x cable lugs DIN 46 235: | 10...95 mm² |
| Cable lug to DIN 46234: | 6...120 mm² |
| Cable lug to DIN 46235: | 10...95 mm² |
| Impulse voltage with epoxy resin partition plate: | 12 kV |
| Stud size for spade connection: | M 10 |
| Tightening torque, max.: | 20 Nm |
| Tightening torque, min.: | 10 Nm |
| Voltage with epoxy resin partition plate: | 2,300 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,089 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
