Produkt
Weidmueller
1216230000
HBT 6,0 - 4,6 GE
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller
Weidmueller 1216230000
HBT 6,0 - 4,6 GE
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | HBT 6,0 - 4,6 GE |
| Order No.: | 1216230000 |
| Version: | cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow |
| GTIN (EAN): | 4050118000337 |
| Qty.: | 100 pc(s). |
| Net weight: | 1.825 g |
| Insulation cross-section: | 6.4 mm |
| Conductor cross-section, max.: | 6 mm² |
| Conductor cross-section, min.: | 4 mm² |
| Identification colour: | yellow |
| Insulation: | Available |
| Material/plastic: | PC |

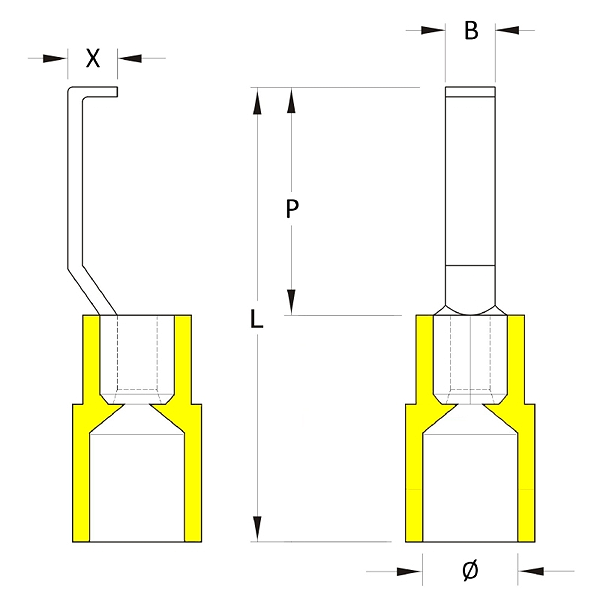

| Hook nose X: | 2.8 mm |
| Insulation cross-section: | 6.4 mm |
| Length L: | 30.2 mm |
| Pin length P: | 17.2 mm |
| Pin width B: | 4.6 mm |
| ETIM 6.0: | EC001059 |
| ETIM 7.0: | EC001059 |
| eClass 9.0: | 27-40-02-92 |
| eClass 9.1: | 27-40-02-12 |
| eClass 10.0: | 27-40-02-92 |
| ROHS: | Conform |
| Type: | HBT 6,0 - 4,6 GE |
| Order No.: | 1216230000 |
| Version: | cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow |
| GTIN (EAN): | 4050118000337 |
| Qty.: | 100 pc(s). |
| Net weight: | 1.825 g |
| Insulation cross-section: | 6.4 mm |
| Conductor cross-section, max.: | 6 mm² |
| Conductor cross-section, min.: | 4 mm² |
| Identification colour: | yellow |
| Insulation: | Available |
| Material/plastic: | PC |
| Hook nose X: | 2.8 mm |
| Insulation cross-section: | 6.4 mm |
| Length L: | 30.2 mm |
| Pin length P: | 17.2 mm |
| Pin width B: | 4.6 mm |
| ETIM 6.0: | EC001059 |
| ETIM 7.0: | EC001059 |
| eClass 9.0: | 27-40-02-92 |
| eClass 9.1: | 27-40-02-12 |
| eClass 10.0: | 27-40-02-92 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,002 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
