Produkt
Weidmueller
1194800000
KTB MH 352615 S4E0
Poproś o ofertę

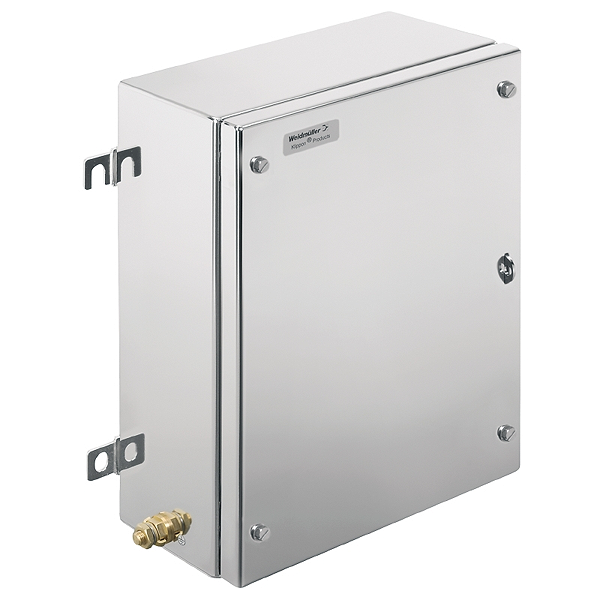

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1194800000
KTB MH 352615 S4E0
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | KTB MH 352615 S4E0 |
| Order No.: | 1194800000 |
| Version: | Klippon TB MH (Terminal Box - Multi Hinge), Empty enclosure, stainless steel enclosure, Height: 350 mm, Width: 260 mm, Depth: 150 mm, Material: Stainless steel 1.4404 (316L), electropolished, silver |
| GTIN (EAN): | 4032248977642 |
| Qty.: | 1 pc(s). |
| Width: | 260 mm |
| Width (inches): | 10.236 inch |
| Height: | 350 mm |
| Height (inches): | 13.78 inch |
| Depth: | 150 mm |
| Depth (inches): | 5.905 inch |
| Mounting dimension - width: | 286 mm |
| Mounting dimension - height: | 250 mm |
| Net weight: | 6,840 g |
| REACH SVHC: | Lead 7439-92-1 |
| M12: | 23 |
| M16: | 13 |
| M20: | 11 |
| M25: | 5 |
| M32: | 4 |
| M40: | 3 |
| M50: | 3 |
| M63: | 0 |
| M75: | 0 |
| M12: | 23 |
| M16: | 13 |
| M20: | 11 |
| M25: | 5 |
| M32: | 4 |
| M40: | 3 |
| M50: | 3 |
| M63: | 0 |
| M75: | 0 |
| M12: | 20 |
| M16: | 11 |
| M20: | 9 |
| M25: | 4 |
| M32: | 3 |
| M40: | 3 |
| M50: | 2 |
| M63: | 0 |
| M75: | 0 |
| Certificate no. Terminal Box (ATEX): | IBExU14ATEX1050 |
| Certificate no. empty enclosure (ATEX): | IBExU14ATEX1028 U |
| Certificate no. Terminal Box (IECEx): | IECEXIBE14.0013 |
| Certificate no. empty enclosure (IECEx): | IECEx IBE 14.0004U |
| Certificate no. Terminal Box (EAC): | RU C-DE.ГБ08.B.01328 |
| Certificate no., empty enclosure (EAC): | RU C-DE.ГБ08.B.00472 |
| Certificate no. Terminal Box (INMETRO): | IEx 17.0021 |
| Certificate no. empty enclosure (INMETRO): | IEx 17.0020U |
| Certificate no. Terminal Box (AEx): | E223792 |
| Certificate no. empty enclosure (NEPSI): | GYJ14.1308U |
| Certificate no. Terminal Box (NEPSI): | GYJ14.1309 |
| Certificate no. Terminal Box (KOSHA): | 16-AV4BO-0245X |
| Certificate No. (MARITREG): | 15.40073.250 |
| Certificate no. (cULus): | E243298 |
| Certificate No. (CCOE): | P461058_1 |
| Certificate No. (DNVGL): | TAE000013S |
| AF size 1: | 10 mm |
| Access opening: height: | 297 mm |
| Access opening: width: | 201 mm |
| Areas of use: | Explosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore |
| Installation advice: | Terminal rail / mounting plate |
| Material thickness: | 1.5 mm |
| Material thickness of cover: | 1.5 mm |
| Material thickness of flange: | 3 mm |
| Max. payload: | 36 kg |
| Opening angle lid: | 130 ° |
| Overall dimensions: | 350 x 311 x 165 |
| Position PE bolts: | Page C |
| Standards: | DIN EN 62208 - Empty enclosure standard, DIN EN 61373 Class 1B**, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31 |
| Torque for lid screws: | 2.5 Nm |
| Material: | Stainless steel 1.4404 (316L) |
| Seal material: | Silicone |
| Surface finish: | electropolished |
| Operating temperature, min.: | -60 °C |
| Operating temperature, max.: | 135 °C |
| Impact resistance: | 7 J ATEX version, 10 J version standard |
| Protection degree: | IP66, IP67 |
| Note: protection class: | If used in temperature ranges above 105 °C, IP protection is limited to IP 66. |
| Enclosure attachment: | 4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet) |
| Lid attachment: | 4 hinges and M6 hex-head slotted screws SW10 |
| Integral fixing: | 4, 6 or 9 stud bolts M6 inner (female) thread |
| Earth, enclosure, internal: | Welded-on M6 stainless-steel earth stud in enclosure body and lid. |
| WDU 10 / ZDU 10: | 2x15 |
| WDU 16 / ZDU 16: | 1x12 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | 2x31 |
| WDU 35 / ZDU 35: | 1x9 |
| WDU 4 / ZDU 4: | 2x26 |
| WDU 6 / ZDU 6: | 2x19 |
| WDU 10 / ZDU 10: | 1x25 |
| WDU 16 / ZDU 16: | 1x20 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | 2x49 |
| WDU 35 / ZDU 35: | 1x15 |
| WDU 4 / ZDU 4: | 1x41 |
| WDU 6 / ZDU 6: | 1x31 |
| Product information: | **A customised test is required to guarantee application compliance |
| ETIM 6.0: | EC002503 |
| ETIM 7.0: | EC002503 |
| eClass 9.0: | 27-18-05-02 |
| eClass 9.1: | 27-18-05-02 |
| eClass 10.0: | 27-18-05-02 |
| ROHS: | Conform |
| Type: | KTB MH 352615 S4E0 |
| Order No.: | 1194800000 |
| Version: | Klippon TB MH (Terminal Box - Multi Hinge), Empty enclosure, stainless steel enclosure, Height: 350 mm, Width: 260 mm, Depth: 150 mm, Material: Stainless steel 1.4404 (316L), electropolished, silver |
| GTIN (EAN): | 4032248977642 |
| Qty.: | 1 pc(s). |
| Width: | 260 mm |
| Width (inches): | 10.236 inch |
| Height: | 350 mm |
| Height (inches): | 13.78 inch |
| Depth: | 150 mm |
| Depth (inches): | 5.905 inch |
| Mounting dimension - width: | 286 mm |
| Mounting dimension - height: | 250 mm |
| Net weight: | 6,840 g |
| REACH SVHC: | Lead 7439-92-1 |
| M12: | 23 |
| M16: | 13 |
| M20: | 11 |
| M25: | 5 |
| M32: | 4 |
| M40: | 3 |
| M50: | 3 |
| M63: | 0 |
| M75: | 0 |
| M12: | 23 |
| M16: | 13 |
| M20: | 11 |
| M25: | 5 |
| M32: | 4 |
| M40: | 3 |
| M50: | 3 |
| M63: | 0 |
| M75: | 0 |
| M12: | 20 |
| M16: | 11 |
| M20: | 9 |
| M25: | 4 |
| M32: | 3 |
| M40: | 3 |
| M50: | 2 |
| M63: | 0 |
| M75: | 0 |
| Certificate no. Terminal Box (ATEX): | IBExU14ATEX1050 |
| Certificate no. empty enclosure (ATEX): | IBExU14ATEX1028 U |
| Certificate no. Terminal Box (IECEx): | IECEXIBE14.0013 |
| Certificate no. empty enclosure (IECEx): | IECEx IBE 14.0004U |
| Certificate no. Terminal Box (EAC): | RU C-DE.ГБ08.B.01328 |
| Certificate no., empty enclosure (EAC): | RU C-DE.ГБ08.B.00472 |
| Certificate no. Terminal Box (INMETRO): | IEx 17.0021 |
| Certificate no. empty enclosure (INMETRO): | IEx 17.0020U |
| Certificate no. Terminal Box (AEx): | E223792 |
| Certificate no. empty enclosure (NEPSI): | GYJ14.1308U |
| Certificate no. Terminal Box (NEPSI): | GYJ14.1309 |
| Certificate no. Terminal Box (KOSHA): | 16-AV4BO-0245X |
| Certificate No. (MARITREG): | 15.40073.250 |
| Certificate no. (cULus): | E243298 |
| Certificate No. (CCOE): | P461058_1 |
| Certificate No. (DNVGL): | TAE000013S |
| AF size 1: | 10 mm |
| Access opening: height: | 297 mm |
| Access opening: width: | 201 mm |
| Areas of use: | Explosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore |
| Installation advice: | Terminal rail / mounting plate |
| Material thickness: | 1.5 mm |
| Material thickness of cover: | 1.5 mm |
| Material thickness of flange: | 3 mm |
| Max. payload: | 36 kg |
| Opening angle lid: | 130 ° |
| Overall dimensions: | 350 x 311 x 165 |
| Position PE bolts: | Page C |
| Standards: | DIN EN 62208 - Empty enclosure standard, DIN EN 61373 Class 1B**, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31 |
| Torque for lid screws: | 2.5 Nm |
| Material: | Stainless steel 1.4404 (316L) |
| Seal material: | Silicone |
| Surface finish: | electropolished |
| Operating temperature, min.: | -60 °C |
| Operating temperature, max.: | 135 °C |
| Impact resistance: | 7 J ATEX version, 10 J version standard |
| Protection degree: | IP66, IP67 |
| Note: protection class: | If used in temperature ranges above 105 °C, IP protection is limited to IP 66. |
| Enclosure attachment: | 4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet) |
| Lid attachment: | 4 hinges and M6 hex-head slotted screws SW10 |
| Integral fixing: | 4, 6 or 9 stud bolts M6 inner (female) thread |
| Earth, enclosure, internal: | Welded-on M6 stainless-steel earth stud in enclosure body and lid. |
| WDU 10 / ZDU 10: | 2x15 |
| WDU 16 / ZDU 16: | 1x12 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | 2x31 |
| WDU 35 / ZDU 35: | 1x9 |
| WDU 4 / ZDU 4: | 2x26 |
| WDU 6 / ZDU 6: | 2x19 |
| WDU 10 / ZDU 10: | 1x25 |
| WDU 16 / ZDU 16: | 1x20 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | 2x49 |
| WDU 35 / ZDU 35: | 1x15 |
| WDU 4 / ZDU 4: | 1x41 |
| WDU 6 / ZDU 6: | 1x31 |
| Product information: | **A customised test is required to guarantee application compliance |
| ETIM 6.0: | EC002503 |
| ETIM 7.0: | EC002503 |
| eClass 9.0: | 27-18-05-02 |
| eClass 9.1: | 27-18-05-02 |
| eClass 10.0: | 27-18-05-02 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 6,84 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
