Produkt
Weidmueller
1173750000
PAP PRV/PPV4 SW
Poproś o ofertę

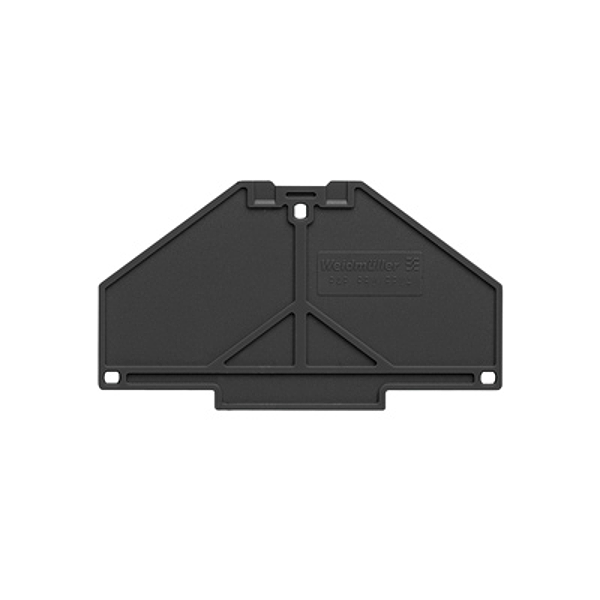

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1173750000
PAP PRV/PPV4 SW
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | PAP PRV/PPV4 SW |
| Order No.: | 1173750000 |
| Version: | P-series, End plate, black, 3 mm |
| GTIN (EAN): | 4032248966165 |
| Qty.: | 10 pc(s). |
| Width: | 3 mm |
| Width (inches): | 0.118 inch |
| Height: | 70 mm |
| Height (inches): | 2.756 inch |
| Depth: | 39.9 mm |
| Depth (inches): | 1.571 inch |
| Net weight: | 4.9 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 125 °C |
| Material: | Polycarbonate |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Version: | End plate |
| Installation advice: | Direct mounting |
| Snap-on: | Yes |
| Type of mounting: | Direct mounting |
| ETIM 6.0: | EC000886 |
| ETIM 7.0: | EC000886 |
| eClass 9.1: | 27-14-11-33 |
| eClass 10.0: | 27-14-11-33 |
| ROHS: | Conform |
| Type: | PAP PRV/PPV4 SW |
| Order No.: | 1173750000 |
| Version: | P-series, End plate, black, 3 mm |
| GTIN (EAN): | 4032248966165 |
| Qty.: | 10 pc(s). |
| Width: | 3 mm |
| Width (inches): | 0.118 inch |
| Height: | 70 mm |
| Height (inches): | 2.756 inch |
| Depth: | 39.9 mm |
| Depth (inches): | 1.571 inch |
| Net weight: | 4.9 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 125 °C |
| Material: | Polycarbonate |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Version: | End plate |
| Installation advice: | Direct mounting |
| Snap-on: | Yes |
| Type of mounting: | Direct mounting |
| ETIM 6.0: | EC000886 |
| ETIM 7.0: | EC000886 |
| eClass 9.1: | 27-14-11-33 |
| eClass 10.0: | 27-14-11-33 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,005 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
