Weidmueller
1173710000
PRV 16 SW 35X7.5 WS/RT
Poproś o ofertę

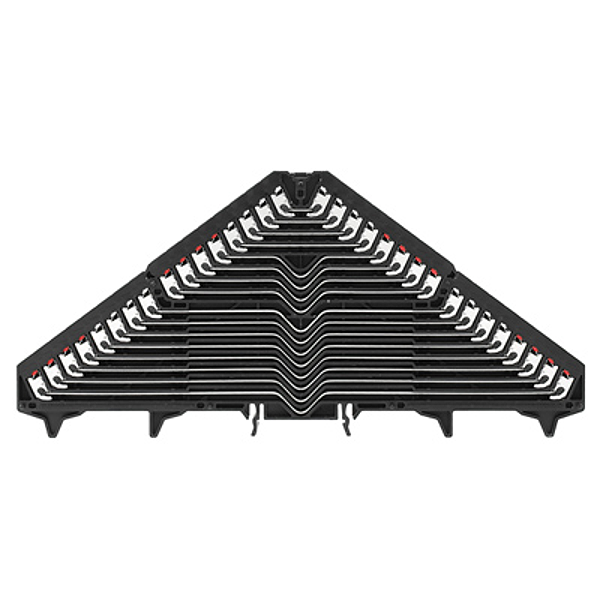

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1173710000
PRV 16 SW 35X7.5 WS/RT
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | PRV 16 SW 35X7.5 WS/RT |
| Order No.: | 1173710000 |
| Version: | P-series, Patch distributor, Rated cross-section: 1.5 mm², Number of levels: 16, Number of connections: 64, Colour: black, Colour of operational elements: white-red, TS 35 x 7.5 |
| GTIN (EAN): | 4032248966202 |
| Qty.: | 20 pc(s). |
| Width: | 9.2 mm |
| Width (inches): | 0.362 inch |
| Height: | 225 mm |
| Height (inches): | 8.858 inch |
| Depth: | 106 mm |
| Depth (inches): | 4.173 inch |
| Net weight: | 121.3 g |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -25 °C |
| Storage temperature: | -25 °C...70 °C |
| Temperature range, installation, min.: | -10 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 130 °C |
| Temperature range, installation, max.: | 40 °C |
| Material: | Polycarbonate |
| Material of operational elements: | PBT |
| Colour: | black |
| Colour of operational elements: | white-red |
| UL 94 flammability rating: | V-0 |
| Version: | PUSH IN connection, One end without connector |
| End cover plate required: | Yes |
| Number of levels: | 16 |
| Number of clamping points per level: | 4 |
| Number of potentials per tier: | 16 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 x 7.5 |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-2406089 |
| Current size B (CSA): | 1 A |
| Current size D (CSA): | 1 A |
| Voltage size B (CSA): | 300 V |
| Voltage size D (CSA): | 300 V |
| Wire cross section max. (CSA): | 16 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 1.5 mm² |
| Clamping range, min.: | 0.13 mm² |
| Connection cross-section, stranded, max.: | 1.5 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | Inclined / angled |
| Number of connections: | 64 |
| Stripping length: | 10 mm |
| Type of connection: | PUSH IN |
| Wire connection cross section AWG, max.: | AWG 16 |
| Wire connection cross section AWG, min.: | AWG 24 |
| Wire connection cross section, finely stranded, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 1.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 1.5 mm² |
| Rated voltage: | 250 |
| Rated current: | 6 A |
| Current at maximum wires: | 11 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.83 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.56 W |
| Rated impulse withstand voltage: | 4 kV |
| Pollution severity: | 3 |
| Surge voltage category: | III |
| Certificate No. (cURus): | E60693 |
| Current size B (cURus): | 1 A |
| Current size D (cURus): | 1 A |
| Voltage size B (cURus): | 300 V |
| Voltage size D (cURus): | 300 V |
| Wire cross section max. (cURus): | 16 AWG |
| Wire cross section min. (cURus): | 26 AWG |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
| Type: | PRV 16 SW 35X7.5 WS/RT |
| Order No.: | 1173710000 |
| Version: | P-series, Patch distributor, Rated cross-section: 1.5 mm², Number of levels: 16, Number of connections: 64, Colour: black, Colour of operational elements: white-red, TS 35 x 7.5 |
| GTIN (EAN): | 4032248966202 |
| Qty.: | 20 pc(s). |
| Width: | 9.2 mm |
| Width (inches): | 0.362 inch |
| Height: | 225 mm |
| Height (inches): | 8.858 inch |
| Depth: | 106 mm |
| Depth (inches): | 4.173 inch |
| Net weight: | 121.3 g |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -25 °C |
| Storage temperature: | -25 °C...70 °C |
| Temperature range, installation, min.: | -10 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 130 °C |
| Temperature range, installation, max.: | 40 °C |
| Material: | Polycarbonate |
| Material of operational elements: | PBT |
| Colour: | black |
| Colour of operational elements: | white-red |
| UL 94 flammability rating: | V-0 |
| Version: | PUSH IN connection, One end without connector |
| End cover plate required: | Yes |
| Number of levels: | 16 |
| Number of clamping points per level: | 4 |
| Number of potentials per tier: | 16 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 x 7.5 |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-2406089 |
| Current size B (CSA): | 1 A |
| Current size D (CSA): | 1 A |
| Voltage size B (CSA): | 300 V |
| Voltage size D (CSA): | 300 V |
| Wire cross section max. (CSA): | 16 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 1.5 mm² |
| Clamping range, min.: | 0.13 mm² |
| Connection cross-section, stranded, max.: | 1.5 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | Inclined / angled |
| Number of connections: | 64 |
| Stripping length: | 10 mm |
| Type of connection: | PUSH IN |
| Wire connection cross section AWG, max.: | AWG 16 |
| Wire connection cross section AWG, min.: | AWG 24 |
| Wire connection cross section, finely stranded, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 1.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 1.5 mm² |
| Rated voltage: | 250 |
| Rated current: | 6 A |
| Current at maximum wires: | 11 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.83 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.56 W |
| Rated impulse withstand voltage: | 4 kV |
| Pollution severity: | 3 |
| Surge voltage category: | III |
| Certificate No. (cURus): | E60693 |
| Current size B (cURus): | 1 A |
| Current size D (cURus): | 1 A |
| Voltage size B (cURus): | 300 V |
| Voltage size D (cURus): | 300 V |
| Wire cross section max. (cURus): | 16 AWG |
| Wire cross section min. (cURus): | 26 AWG |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,13 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
