Produkt
Weidmueller
1167850000
KLBUE 4-13.5 CPF16
Poproś o ofertę

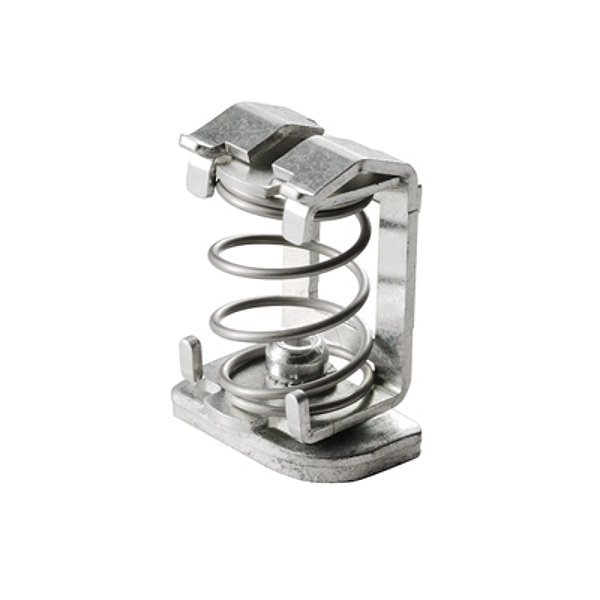

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1167850000
KLBUE 4-13.5 CPF16
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | KLBUE 4-13.5 CPF16 |
| Order No.: | 1167850000 |
| Version: | Clamping yoke, Clamping yoke for shield connection, Steel |
| GTIN (EAN): | 4032248959655 |
| Qty.: | 10 pc(s). |
| Width: | 20.1 mm |
| Width (inches): | 0.791 inch |
| Height: | 22 mm |
| Height (inches): | 0.866 inch |
| Depth: | 31.45 mm |
| Depth (inches): | 1.238 inch |
| Mounting dimension - width: | 18.9 mm |
| Net weight: | 30.1 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Material: | Steel |
| Colour: | grey |
| Rail: | TS 27 |
| Explosion-tested version: | No |
| Installation advice: | C-rail with 16-mm opening |
| Cable diameter, max.: | 13.5 mm |
| Cable diameter, min.: | 4 mm |
| ETIM 6.0: | EC002020 |
| ETIM 7.0: | EC002020 |
| eClass 9.0: | 27-14-11-50 |
| eClass 9.1: | 27-14-11-50 |
| eClass 10.0: | 27-14-11-50 |
| ROHS: | Conform |
| Type: | KLBUE 4-13.5 CPF16 |
| Order No.: | 1167850000 |
| Version: | Clamping yoke, Clamping yoke for shield connection, Steel |
| GTIN (EAN): | 4032248959655 |
| Qty.: | 10 pc(s). |
| Width: | 20.1 mm |
| Width (inches): | 0.791 inch |
| Height: | 22 mm |
| Height (inches): | 0.866 inch |
| Depth: | 31.45 mm |
| Depth (inches): | 1.238 inch |
| Mounting dimension - width: | 18.9 mm |
| Net weight: | 30.1 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Material: | Steel |
| Colour: | grey |
| Rail: | TS 27 |
| Explosion-tested version: | No |
| Installation advice: | C-rail with 16-mm opening |
| Cable diameter, max.: | 13.5 mm |
| Cable diameter, min.: | 4 mm |
| ETIM 6.0: | EC002020 |
| ETIM 7.0: | EC002020 |
| eClass 9.0: | 27-14-11-50 |
| eClass 9.1: | 27-14-11-50 |
| eClass 10.0: | 27-14-11-50 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,033 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
