Produkt
Weidmueller
1165140000
PSI 6/10 SW
Poproś o ofertę

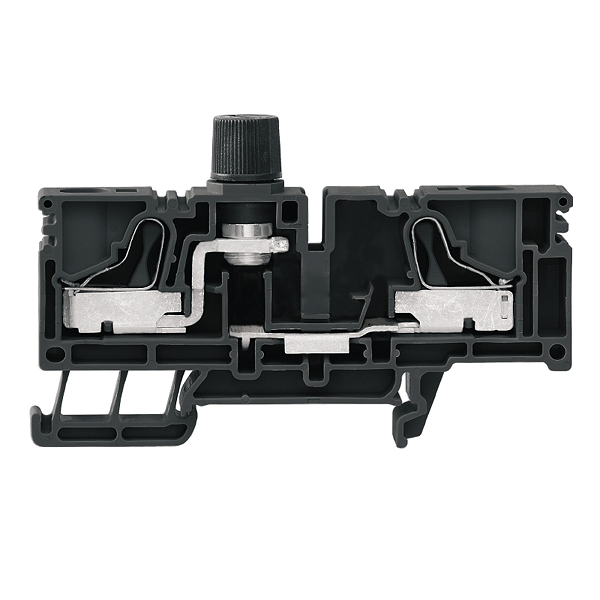

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1165140000
PSI 6/10 SW
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2021-12-31 |
| Type: | PSI 6/10 SW |
| Order No.: | 1165140000 |
| Version: | P-series, Fuse terminal, Rated cross-section: 6 mm², PUSH IN |
| GTIN (EAN): | 4032248992621 |
| Qty.: | 25 pc(s). |
| Width: | 12.2 mm |
| Width (inches): | 0.48 inch |
| Height: | 81 mm |
| Height (inches): | 3.189 inch |
| Depth: | 39.6 mm |
| Depth (inches): | 1.559 inch |
| Depth including DIN rail: | 40.35 mm |
| Net weight: | 30.48 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Version: | PUSH IN connection, Fuse cartridge, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 1.5 mm² |
| Connection direction: | top |
| Number of connections: | 2 |
| Stripping length: | 14 mm |
| Type of connection: | PUSH IN |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 16 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 1.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 1.5 mm² |
| Current: | 6.3 A |
| Cartridge fuse: | G-Si. 5 x 20 |
| Current: | 6.3 A |
| Operating voltage, max.: | 250 V |
| Permitted power loss for the standard fuse variants: | 2.5 W |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 250 V |
| Rated voltage to adjoining terminal: | 250 V |
| Rated current: | 6.3 A |
| Current at maximum wires: | 10 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000899 |
| ETIM 7.0: | EC000899 |
| eClass 9.0: | 27-14-11-16 |
| eClass 9.1: | 27-14-11-16 |
| eClass 10.0: | 27-14-11-16 |
| ROHS: | Conform |
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2021-12-31 |
| Type: | PSI 6/10 SW |
| Order No.: | 1165140000 |
| Version: | P-series, Fuse terminal, Rated cross-section: 6 mm², PUSH IN |
| GTIN (EAN): | 4032248992621 |
| Qty.: | 25 pc(s). |
| Width: | 12.2 mm |
| Width (inches): | 0.48 inch |
| Height: | 81 mm |
| Height (inches): | 3.189 inch |
| Depth: | 39.6 mm |
| Depth (inches): | 1.559 inch |
| Depth including DIN rail: | 40.35 mm |
| Net weight: | 30.48 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Version: | PUSH IN connection, Fuse cartridge, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 1.5 mm² |
| Connection direction: | top |
| Number of connections: | 2 |
| Stripping length: | 14 mm |
| Type of connection: | PUSH IN |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 16 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 1.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 1.5 mm² |
| Current: | 6.3 A |
| Cartridge fuse: | G-Si. 5 x 20 |
| Current: | 6.3 A |
| Operating voltage, max.: | 250 V |
| Permitted power loss for the standard fuse variants: | 2.5 W |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 250 V |
| Rated voltage to adjoining terminal: | 250 V |
| Rated current: | 6.3 A |
| Current at maximum wires: | 10 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000899 |
| ETIM 7.0: | EC000899 |
| eClass 9.0: | 27-14-11-16 |
| eClass 9.1: | 27-14-11-16 |
| eClass 10.0: | 27-14-11-16 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,03 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
