Produkt
Weidmueller
1165130000
PDU 6/10/4AN BL
Poproś o ofertę

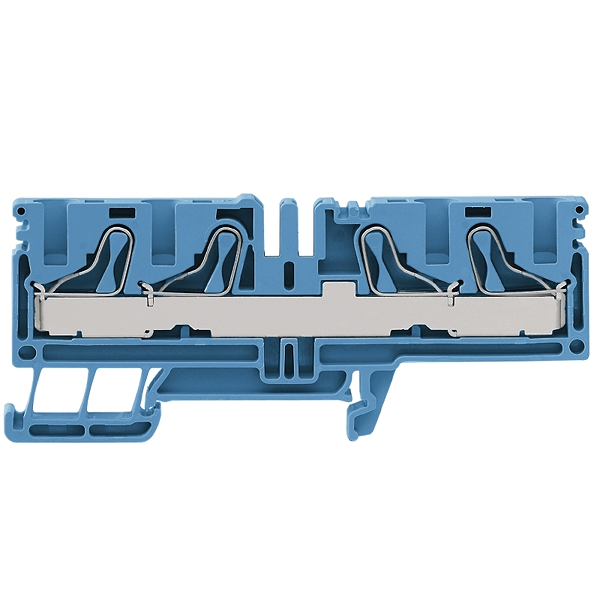

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1165130000
PDU 6/10/4AN BL
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2021-12-31 |
| Type: | PDU 6/10/4AN BL |
| Order No.: | 1165130000 |
| Version: | Feed-through terminal, PUSH IN, 10 mm², 800 V, 57 A, blue |
| GTIN (EAN): | 4032248992614 |
| Qty.: | 25 pc(s). |
| Width: | 8.1 mm |
| Width (inches): | 0.319 inch |
| Height: | 97 mm |
| Height (inches): | 3.819 inch |
| Depth: | 40.5 mm |
| Depth (inches): | 1.594 inch |
| Depth including DIN rail: | 41.5 mm |
| Net weight: | 24.6 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | blue |
| UL 94 flammability rating: | V-0 |
| Version: | PUSH IN connection, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 4 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | Yes |
| PE function: | No |
| PEN function: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 1.5 mm² |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 10 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A4 |
| Number of connections: | 4 |
| Stripping length: | 14 mm |
| Type of connection: | PUSH IN |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 16 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 1.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 1.5 mm² |
| Rated cross-section: | 10 mm² |
| Rated voltage: | 800 V |
| Rated current: | 57 A |
| Current at maximum wires: | 57 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.56 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.82 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 8 AWG |
| Conductor size Factory wiring min. (cURus): | 14 AWG |
| Conductor size Field wiring max. (cURus): | 8 AWG |
| Conductor size Field wiring min. (cURus): | 14 AWG |
| Current size B (cURus): | 47 A |
| Current size C (cURus): | 47 A |
| Current size D (cURus): | 5 A |
| Voltage size B (cURus): | 600 V |
| Voltage size C (cURus): | 600 V |
| Voltage size D (cURus): | 600 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2021-12-31 |
| Type: | PDU 6/10/4AN BL |
| Order No.: | 1165130000 |
| Version: | Feed-through terminal, PUSH IN, 10 mm², 800 V, 57 A, blue |
| GTIN (EAN): | 4032248992614 |
| Qty.: | 25 pc(s). |
| Width: | 8.1 mm |
| Width (inches): | 0.319 inch |
| Height: | 97 mm |
| Height (inches): | 3.819 inch |
| Depth: | 40.5 mm |
| Depth (inches): | 1.594 inch |
| Depth including DIN rail: | 41.5 mm |
| Net weight: | 24.6 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | blue |
| UL 94 flammability rating: | V-0 |
| Version: | PUSH IN connection, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 4 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | Yes |
| PE function: | No |
| PEN function: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 1.5 mm² |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 10 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A4 |
| Number of connections: | 4 |
| Stripping length: | 14 mm |
| Type of connection: | PUSH IN |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 16 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 1.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 1.5 mm² |
| Rated cross-section: | 10 mm² |
| Rated voltage: | 800 V |
| Rated current: | 57 A |
| Current at maximum wires: | 57 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.56 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.82 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 8 AWG |
| Conductor size Factory wiring min. (cURus): | 14 AWG |
| Conductor size Field wiring max. (cURus): | 8 AWG |
| Conductor size Field wiring min. (cURus): | 14 AWG |
| Current size B (cURus): | 47 A |
| Current size C (cURus): | 47 A |
| Current size D (cURus): | 5 A |
| Voltage size B (cURus): | 600 V |
| Voltage size C (cURus): | 600 V |
| Voltage size D (cURus): | 600 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,026 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
