Produkt

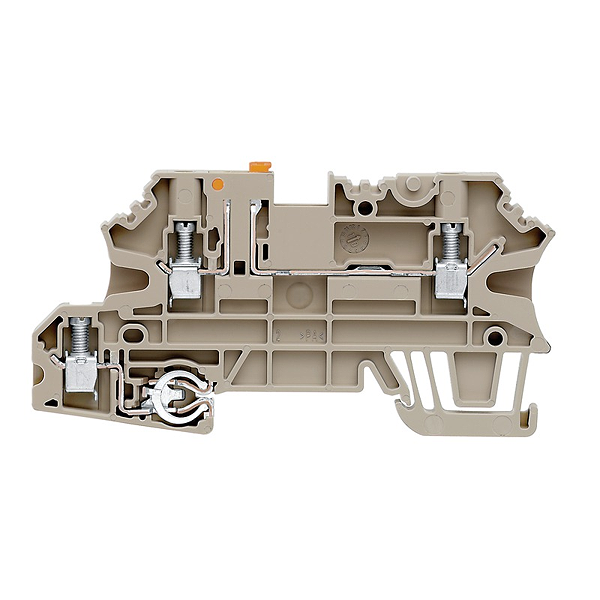

Article image 1143030000
Manufacturer logo

Weidmueller

1143030000

WMF 2.5 DI PE

Poproś o ofertę
Zamknij
Poproś o ofertę
Article image 1143030000
Prawa autorskie do obrazu: Weidmueller

Weidmueller 1143030000

WMF 2.5 DI PE

Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"

Opis

Parametry techniczne

Type: WMF 2.5 DI PE
Order No.: 1143030000
Version: W-Series, Test-disconnect terminal, PE terminal, Rated cross-section: 2.5 mm², Screw connection
GTIN (EAN): 4032248926114
Qty.: 50 pc(s).
Width: 5.08 mm
Width (inches): 0.2 inch
Height: 88 mm
Height (inches): 3.465 inch
Depth: 44.5 mm
Depth (inches): 1.752 inch
Depth including DIN rail: 45 mm
Net weight: 13.28 g
Storage temperature, max.: 40 °C
Storage temperature, min.: 10 °C
Storage temperature: 10 °C...40 °C
Continuous operating temp., min.: -50 °C
Continuous operating temp., max.: 120 °C
Material: Wemid
Colour: dark beige
UL 94 flammability rating: V-0
Certificate No. (ATEX): DEMKO14ATEX1389U
Certificate No. (IECEX): IECEXUL14.0097U
Max. voltage (ATEX): 500 V
Current (ATEX): 20 A
Wire cross section max. (ATEX): 2.5 mm²
Max. voltage (IECEX): 500 V
Current (IECEX): 20 A
Wire cross section max. (IECEX): 2.5 mm²
Marking EN 60079-7: Ex ec II C Gc
Ex 2014/34/EU label: II 3 G D
Version: Screw connection, Spacer, With PE connection, for plug-in cross-connector, One end without connector
End cover plate required: Yes
Number of levels: 2
Rail: TS 35
Open sides: right
Type of mounting: Snap-on
Certificate No. (CSA): 200039-1057876
Current size B (CSA): 19 A
Current size C (CSA): 19 A
Current size D (CSA): 5 A
Voltage size B (CSA): 600 V
Voltage size C (CSA): 600 V
Voltage size D (CSA): 600 V
Wire cross section max. (CSA): 12 AWG
Wire cross section min. (CSA): 26 AWG
Blade size: 0.6 x 3.5 mm
Clamping range, max.: 4 mm²
Clamping range, min.: 0.5 mm²
Clamping screw: M 3
Connection cross-section, stranded, max.: 4 mm²
Connection cross-section, stranded, min.: 1.5 mm²
Connection direction: on side
Gauge to IEC 60947-1: A3
Number of connections: 3
Stripping length: 10 mm
Tightening torque, max.: 0.6 Nm
Tightening torque, min.: 0.5 Nm
Type of connection: Screw connection
Wire connection cross section AWG, max.: AWG 12
Wire connection cross section AWG, min.: AWG 26
Wire connection cross section, finely stranded, max.: 4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm²
Wire connection cross-section, finely stranded, min.: 0.5 mm²
Wire connection cross-section, solid core, max.: 4 mm²
Wire connection cross-section, solid core, min.: 0.5 mm²
Cross-disconnect: without
Integral test socket: No
Slitting: Pivoting
Rated cross-section: 2.5 mm²
Rated voltage: 500 V
Rated current: 20 A
Current at maximum wires: 20 A
Volume resistance according to IEC 60947-7-x: 1.33 mΩ
Power loss in accordance with IEC 60947-7-x: 0.77 W
Rated impulse withstand voltage: 8 kV
Pollution severity: 3
Surge voltage category: III
Certificate No. (cURus): E60693
Conductor size Factory wiring max. (cURus): 12 AWG
Conductor size Factory wiring min. (cURus): 26 AWG
Conductor size Field wiring max. (cURus): 12 AWG
Conductor size Field wiring min. (cURus): 26 AWG
Current size B (cURus): 19 A
Current size C (cURus): 19 A
Current size D (cURus): 5 A
Voltage size B (cURus): 600 V
Voltage size C (cURus): 600 V
Voltage size D (cURus): 600 V
Wire cross section max. (cURus): 12 AWG
Wire cross section min. (cURus): 26 AWG
ETIM 6.0: EC000902
ETIM 7.0: EC000902
eClass 9.0: 27-14-11-26
eClass 9.1: 27-14-11-26
eClass 10.0: 27-14-11-26
ROHS: Conform
Type: WMF 2.5 DI PE
Order No.: 1143030000
Version: W-Series, Test-disconnect terminal, PE terminal, Rated cross-section: 2.5 mm², Screw connection
GTIN (EAN): 4032248926114
Qty.: 50 pc(s).
Width: 5.08 mm
Width (inches): 0.2 inch
Height: 88 mm
Height (inches): 3.465 inch
Depth: 44.5 mm
Depth (inches): 1.752 inch
Depth including DIN rail: 45 mm
Net weight: 13.28 g
Storage temperature, max.: 40 °C
Storage temperature, min.: 10 °C
Storage temperature: 10 °C...40 °C
Continuous operating temp., min.: -50 °C
Continuous operating temp., max.: 120 °C
Material: Wemid
Colour: dark beige
UL 94 flammability rating: V-0
Certificate No. (ATEX): DEMKO14ATEX1389U
Certificate No. (IECEX): IECEXUL14.0097U
Max. voltage (ATEX): 500 V
Current (ATEX): 20 A
Wire cross section max. (ATEX): 2.5 mm²
Max. voltage (IECEX): 500 V
Current (IECEX): 20 A
Wire cross section max. (IECEX): 2.5 mm²
Marking EN 60079-7: Ex ec II C Gc
Ex 2014/34/EU label: II 3 G D
Version: Screw connection, Spacer, With PE connection, for plug-in cross-connector, One end without connector
End cover plate required: Yes
Number of levels: 2
Rail: TS 35
Open sides: right
Type of mounting: Snap-on
Certificate No. (CSA): 200039-1057876
Current size B (CSA): 19 A
Current size C (CSA): 19 A
Current size D (CSA): 5 A
Voltage size B (CSA): 600 V
Voltage size C (CSA): 600 V
Voltage size D (CSA): 600 V
Wire cross section max. (CSA): 12 AWG
Wire cross section min. (CSA): 26 AWG
Blade size: 0.6 x 3.5 mm
Clamping range, max.: 4 mm²
Clamping range, min.: 0.5 mm²
Clamping screw: M 3
Connection cross-section, stranded, max.: 4 mm²
Connection cross-section, stranded, min.: 1.5 mm²
Connection direction: on side
Gauge to IEC 60947-1: A3
Number of connections: 3
Stripping length: 10 mm
Tightening torque, max.: 0.6 Nm
Tightening torque, min.: 0.5 Nm
Type of connection: Screw connection
Wire connection cross section AWG, max.: AWG 12
Wire connection cross section AWG, min.: AWG 26
Wire connection cross section, finely stranded, max.: 4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm²
Wire connection cross-section, finely stranded, min.: 0.5 mm²
Wire connection cross-section, solid core, max.: 4 mm²
Wire connection cross-section, solid core, min.: 0.5 mm²
Cross-disconnect: without
Integral test socket: No
Slitting: Pivoting
Rated cross-section: 2.5 mm²
Rated voltage: 500 V
Rated current: 20 A
Current at maximum wires: 20 A
Volume resistance according to IEC 60947-7-x: 1.33 mΩ
Power loss in accordance with IEC 60947-7-x: 0.77 W
Rated impulse withstand voltage: 8 kV
Pollution severity: 3
Surge voltage category: III
Certificate No. (cURus): E60693
Conductor size Factory wiring max. (cURus): 12 AWG
Conductor size Factory wiring min. (cURus): 26 AWG
Conductor size Field wiring max. (cURus): 12 AWG
Conductor size Field wiring min. (cURus): 26 AWG
Current size B (cURus): 19 A
Current size C (cURus): 19 A
Current size D (cURus): 5 A
Voltage size B (cURus): 600 V
Voltage size C (cURus): 600 V
Voltage size D (cURus): 600 V
Wire cross section max. (cURus): 12 AWG
Wire cross section min. (cURus): 26 AWG
ETIM 6.0: EC000902
ETIM 7.0: EC000902
eClass 9.0: 27-14-11-26
eClass 9.1: 27-14-11-26
eClass 10.0: 27-14-11-26
ROHS: Conform

Parametry logistyczne

ECCN:
Kraj pochodzenia:
EAN:
Waga: 0,014 kg
Długość: 0,00 m
Szerokość: 0,00 m
Wysokość: 0,00 m
