Produkt
Weidmueller
1143000000
WMF 2.5 DI BLZ
Poproś o ofertę

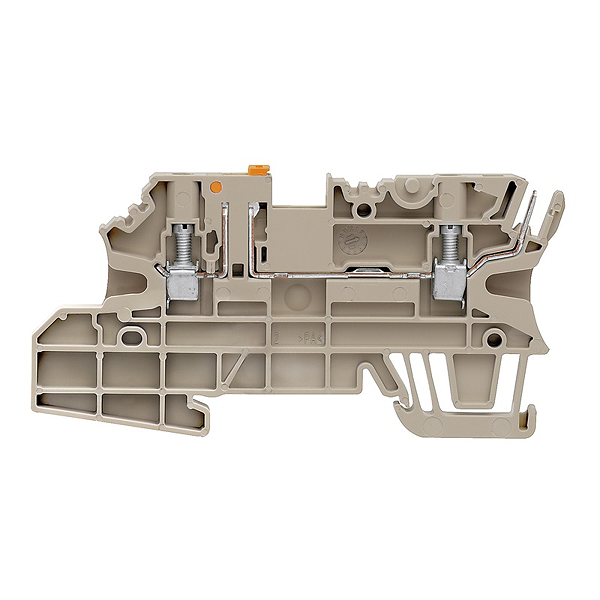

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1143000000
WMF 2.5 DI BLZ
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WMF 2.5 DI BLZ |
| Order No.: | 1143000000 |
| Version: | W-Series, Test-disconnect terminal, Rated cross-section: 2.5 mm², Screw connection |
| GTIN (EAN): | 4032248926213 |
| Qty.: | 50 pc(s). |
| Width: | 5.08 mm |
| Width (inches): | 0.2 inch |
| Height: | 90 mm |
| Height (inches): | 3.543 inch |
| Depth: | 44.5 mm |
| Depth (inches): | 1.752 inch |
| Depth including DIN rail: | 45 mm |
| Net weight: | 11.63 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | 2 screw connections - 1 plug-in connection, Spacer, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of levels: | 1 |
| Number of clamping points per level: | 3 |
| Rail: | TS 35 |
| Open sides: | right |
| Snap-on: | No |
| Type of fixing: | Snap-on |
| Type of mounting: | Snap-on |
| With snap-in pegs: | No |
| Certificate No. (CSA): | 200039-1057876 |
| Current size B (CSA): | 19 A |
| Current size D (CSA): | 10 A |
| Voltage size B (CSA): | 300 V |
| Voltage size D (CSA): | 300 V |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Connection type, additional connection: | Plug-in connection |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping screw: | M 3 |
| Connection cross-section, stranded, max.: | 4 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 3 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Type of connection: | Screw connection |
| Type of connection 2: | Plug-in connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Cross-disconnect: | without |
| Slitting: | Pivoting |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 250 V |
| Rated current: | 20 A |
| Current at maximum wires: | 20 A |
| Standards: | IEC 61984, In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Surge voltage category: | III |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 12 AWG |
| Conductor size Factory wiring min. (cURus): | 26 AWG |
| Conductor size Field wiring max. (cURus): | 12 AWG |
| Conductor size Field wiring min. (cURus): | 26 AWG |
| Current size B (cURus): | 19 A |
| Current size D (cURus): | 10 A |
| Voltage size B (cURus): | 300 V |
| Voltage size D (cURus): | 300 V |
| Wire cross section max. (cURus): | 12 AWG |
| Wire cross section min. (cURus): | 26 AWG |
| ETIM 6.0: | EC000902 |
| ETIM 7.0: | EC000902 |
| eClass 9.0: | 27-14-11-26 |
| eClass 9.1: | 27-14-11-26 |
| eClass 10.0: | 27-14-11-26 |
| ROHS: | Conform |
| Type: | WMF 2.5 DI BLZ |
| Order No.: | 1143000000 |
| Version: | W-Series, Test-disconnect terminal, Rated cross-section: 2.5 mm², Screw connection |
| GTIN (EAN): | 4032248926213 |
| Qty.: | 50 pc(s). |
| Width: | 5.08 mm |
| Width (inches): | 0.2 inch |
| Height: | 90 mm |
| Height (inches): | 3.543 inch |
| Depth: | 44.5 mm |
| Depth (inches): | 1.752 inch |
| Depth including DIN rail: | 45 mm |
| Net weight: | 11.63 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | 2 screw connections - 1 plug-in connection, Spacer, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of levels: | 1 |
| Number of clamping points per level: | 3 |
| Rail: | TS 35 |
| Open sides: | right |
| Snap-on: | No |
| Type of fixing: | Snap-on |
| Type of mounting: | Snap-on |
| With snap-in pegs: | No |
| Certificate No. (CSA): | 200039-1057876 |
| Current size B (CSA): | 19 A |
| Current size D (CSA): | 10 A |
| Voltage size B (CSA): | 300 V |
| Voltage size D (CSA): | 300 V |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Connection type, additional connection: | Plug-in connection |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping screw: | M 3 |
| Connection cross-section, stranded, max.: | 4 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 3 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Type of connection: | Screw connection |
| Type of connection 2: | Plug-in connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Cross-disconnect: | without |
| Slitting: | Pivoting |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 250 V |
| Rated current: | 20 A |
| Current at maximum wires: | 20 A |
| Standards: | IEC 61984, In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Surge voltage category: | III |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 12 AWG |
| Conductor size Factory wiring min. (cURus): | 26 AWG |
| Conductor size Field wiring max. (cURus): | 12 AWG |
| Conductor size Field wiring min. (cURus): | 26 AWG |
| Current size B (cURus): | 19 A |
| Current size D (cURus): | 10 A |
| Voltage size B (cURus): | 300 V |
| Voltage size D (cURus): | 300 V |
| Wire cross section max. (cURus): | 12 AWG |
| Wire cross section min. (cURus): | 26 AWG |
| ETIM 6.0: | EC000902 |
| ETIM 7.0: | EC000902 |
| eClass 9.0: | 27-14-11-26 |
| eClass 9.1: | 27-14-11-26 |
| eClass 10.0: | 27-14-11-26 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,013 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
