Weidmueller
1139570000
PPE 16S
Poproś o ofertę

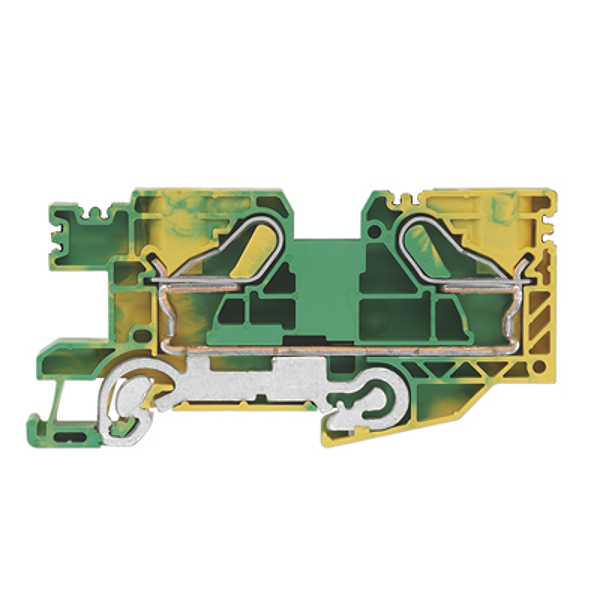

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1139570000
PPE 16S
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | PPE 16S |
| Order No.: | 1139570000 |
| Version: | PE terminal, PUSH IN, 16 mm², 1920 A (16 mm²), Green/yellow |
| GTIN (EAN): | 4050118027174 |
| Qty.: | 10 pc(s). |
| Width: | 12.1 mm |
| Width (inches): | 0.476 inch |
| Height: | 96.5 mm |
| Height (inches): | 3.799 inch |
| Depth: | 47.5 mm |
| Depth (inches): | 1.87 inch |
| Depth including DIN rail: | 48 mm |
| Net weight: | 50.14 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | Green/yellow |
| UL 94 flammability rating: | V-0 |
| Version: | PUSH IN connection, With PE connection, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | Yes |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | Yes |
| PEN function: | Yes |
| Explosion-tested version: | Yes |
| Installation advice: | Direct mounting |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 16 mm² |
| Clamping range, min.: | 2.5 mm² |
| Connection cross-section, finely stranded, max.: | 16 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | B6 |
| Number of connections: | 2 |
| Stripping length: | 18 mm |
| Type of connection: | PUSH IN |
| Wire connection cross section, finely stranded, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 2.5 mm² |
| Wire connection cross-section, solid core, max.: | 16 mm² |
| Wire connection cross-section, solid core, min.: | 2.5 mm² |
| Rated short-time current: | 1920 A (16 mm²) |
| PEN function: | Yes |
| Rated cross-section: | 16 mm² |
| Rated voltage to adjoining terminal: | 800 V |
| Rated current: | 76 A |
| Standards: | IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x: | 0.42 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 2.43 W |
| Rated impulse withstand voltage to adjacent terminal: | 8 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000901 |
| ETIM 7.0: | EC000901 |
| eClass 9.0: | 27-14-11-41 |
| eClass 9.1: | 27-14-11-41 |
| eClass 10.0: | 27-14-11-41 |
| ROHS: | Conform |
| Type: | PPE 16S |
| Order No.: | 1139570000 |
| Version: | PE terminal, PUSH IN, 16 mm², 1920 A (16 mm²), Green/yellow |
| GTIN (EAN): | 4050118027174 |
| Qty.: | 10 pc(s). |
| Width: | 12.1 mm |
| Width (inches): | 0.476 inch |
| Height: | 96.5 mm |
| Height (inches): | 3.799 inch |
| Depth: | 47.5 mm |
| Depth (inches): | 1.87 inch |
| Depth including DIN rail: | 48 mm |
| Net weight: | 50.14 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | Green/yellow |
| UL 94 flammability rating: | V-0 |
| Version: | PUSH IN connection, With PE connection, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | Yes |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | Yes |
| PEN function: | Yes |
| Explosion-tested version: | Yes |
| Installation advice: | Direct mounting |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 16 mm² |
| Clamping range, min.: | 2.5 mm² |
| Connection cross-section, finely stranded, max.: | 16 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | B6 |
| Number of connections: | 2 |
| Stripping length: | 18 mm |
| Type of connection: | PUSH IN |
| Wire connection cross section, finely stranded, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 2.5 mm² |
| Wire connection cross-section, solid core, max.: | 16 mm² |
| Wire connection cross-section, solid core, min.: | 2.5 mm² |
| Rated short-time current: | 1920 A (16 mm²) |
| PEN function: | Yes |
| Rated cross-section: | 16 mm² |
| Rated voltage to adjoining terminal: | 800 V |
| Rated current: | 76 A |
| Standards: | IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x: | 0.42 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 2.43 W |
| Rated impulse withstand voltage to adjacent terminal: | 8 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000901 |
| ETIM 7.0: | EC000901 |
| eClass 9.0: | 27-14-11-41 |
| eClass 9.1: | 27-14-11-41 |
| eClass 10.0: | 27-14-11-41 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,054 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
